100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
Specifications
Match LED :
30-100W multichip COB led
Beam Angle :
75x135 degree
Price :
negotiate
Brand Name :
Sunshineopto
Model Number :
SUN-SL107-87
Certification :
RoHS,CE,SGS
Place of Origin :
Shenzhen,China
MOQ :
100
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
10000pcs/months
Delivery Time :
7-10 working days
Packaging Details :
carton
Lens Size :
diameter 107mm height 33mm
Led Chip :
Bridgelux chips
Accessory :
led glass lens, high power led, heat sink
Heat Sink Material :
Aluminum oxidate
Lens Material :
Borosilicate glass
Transmittance :
95%
Description
100W 75×135 Degree Borosilicate Glass LED Street Light Lens with Square Heat Sink for High Power COB Street & Tunnel Lighting
Product Overview

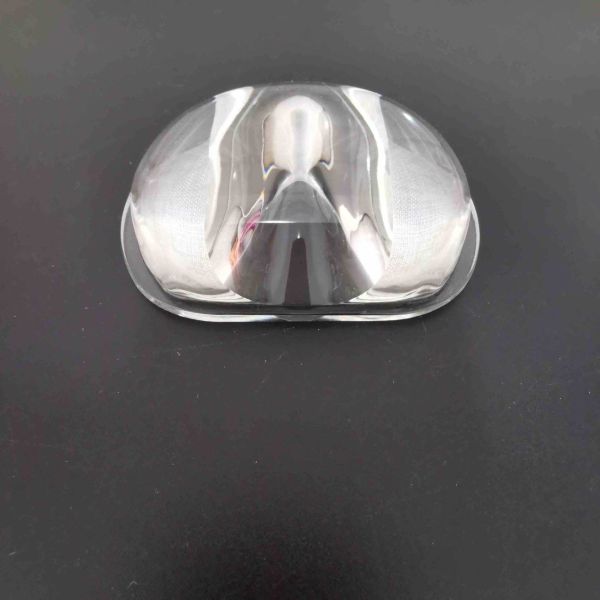

This product is a glass lens kit engineered for around 100W high‑power COB LEDs, featuring a high‑borosilicate glass lens with a 75×135 degree road‑lighting beam and a matching square aluminum heatsink for use in street, tunnel, plaza and high‑mast luminaires. The lens has a diameter of about 107 mm and a height of roughly 33 mm, and is combined with a square heat sink to deliver both high optical performance and strong thermal management, making it ideal for OEM/ODM fixtures and retrofit projects.
Key Features
  • The 75×135 degree elliptical pattern is optimized for main roads, expressways and tunnels, providing a long throw along the roadway and wide lateral coverage to improve uniformity and reduce dark spots.
  • High‑borosilicate glass offers excellent resistance to high temperature and thermal shock and maintains clarity without yellowing, making it more stable than standard PC optics in high‑power, high‑temperature and chemically exposed environments.
  • Transmittance above 90%,combined with precision optical surfaces yields standard road distributions, enhancing luminaire efficacy and glare control.
  • The matching square aluminum heatsink uses fins to lower COB junction temperatures, extending LED and driver life, and its geometry integrates easily with common street light heads for both new designs and retrofits.

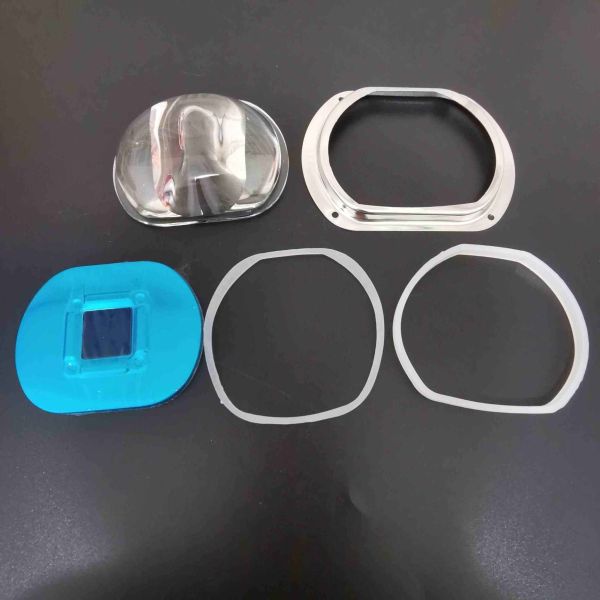

  • The kit’s modular combination of lens, gasket, holder and heatsink allows manufacturers to add a COB source and driver to create a 100W street or tunnel luminaire quickly, shortening development time for OEM/ODM and upgrade projects.
Technical Specifications
Model Number SUN-SL107-87
Main Components led glass lens, high power led, heat sink
Lens Size Diameter 107mm Height 33mm
Beam Angle 75x135 degree (Available in various optic lens angles)
Lens Material Borosilicate glass
Match LED 30-100W multichip COB led
Heat Sink Material Aluminum oxidate
Transmittance 95%
Operating Temperature Range -35°C to +70°C
Warranty 2 years
Quality Guarantee Defective items replaced or refunded upon providing photographic evidence
Target Markets Global distribution
Applications

  • 100W LED street lights for main and express roads

  • Tunnel and under‑bridge lighting

  • High‑mast, plaza and port area lighting

  • Industrial park and logistics road lighting

  • Optical upgrades for 250–400W HID street and tunnel luminaires

Shipping & Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CIF, CFR
Sample Availability Yes
Standard Delivery Time 3-4 working days

For custom requirements, please contact us for personalized solutions.
