30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
Specifications
PCB size :
219.1x53.54x1.5mm
LED chip :
3030 SMD LED , 150mA, 6V, 140-150LM/W
Transmittance :
91%
Price :
negotiate
Lens size :
236x70x6.9mm
PCB circuit :
8 series 8 parallel
Beam angle :
30 Degree
Brand Name :
Sunshineopto
Model Number :
SUN-SL64W-3030-30
Certification :
SGS,RoHS,CE
Place of Origin :
Shenzhen,China
MOQ :
50
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Delivery Time :
7-10 working days
Packaging Details :
Cartons
Description
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
Product Overview

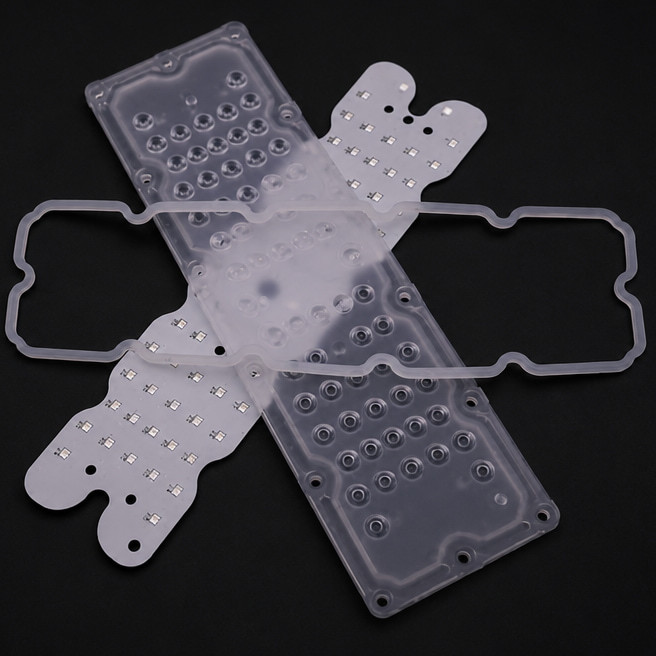

A single optical array containing 64 lens positions designed to work with a matching SMD 3030 LED PCB. The published specifications indicate a 30° beam angle, 236 × 70 × 6.9 mm lens size, optical-grade polycarbonate construction, approximately 91% light transmittance, and a matching PCB size of approximately 219.1 × 53.54 × 1.5 mm using an 8-series × 8-parallel circuit layout.

Key Features
  • Ideal for designing high-power lamps (40W, 50W, etc.)
  • Cost-effective solution to replace Metal Halide or HPS bulbs while reusing existing housings
  • Advanced thermal management technology
  • Operating temperature range: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No UV radiation emission, ensuring eye safety
  • Directional lighting minimizes light pollution and supports dark sky compliance
  • Available in various beam angles: 80×150°, 90°, 60°, 90×120°, and Vertical 80×150°
Technical Specifications
Parameter Specification
Model No. SUN-SL64W-3030-30
Main Components 64 Array lens, silicon gasket, PCB, 3030 SMD LED
Lens Material PC (Polycarbonate)
Lens Size 236×70mm
PCB Size 219.1×53.54×1.5mm
PCB Circuit 8 series 8 parallel
Transmittance 91%
LEDs Original package 3030 SMD LED, 140-150 LM/W, 150mA, 6V
Beam Angle 30 Degree
Quality Guarantee Replacement or refund for defective items upon verification
Product Dimensions & Beam Patterns
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light 30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light 30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
30 Degree Beam Pattern
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
60 Degree Beam Pattern
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
90 Degree Beam Pattern
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
90×150 Degree Beam Pattern
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
80×150 Degree Beam Pattern
30 Degree 64-in-1 High-Transmittance PC LED Lens with SMD 3030 LED PCB Board for Street Light
Applications

Street lighting, highway LED lamps, tunnel lamps, square lighting, road lamps, city lighting, parking spot lamps, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.

Shipping & Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CIF, CFR
Sample Availability Yes
Sample Delivery Time 3-4 working days
FAQ

Can I buy the optical lens without the PCB?

Yes. The lens can be supplied as an individual optical component, while integrated configurations with PCB and LED arrays can also be discussed.

Can you provide a complete LED module?

A complete solution can potentially include the 64-in-1 lens, silicone gasket, LED PCB, 3030 LED array and other components, depending on the project requirements.

Can the beam angle be customized?

Related products in the same optical family include wider and asymmetric beam patterns such as 60°, 90°, 80×150° and 90×120°, and project-specific optical requirements can be evaluated for OEM applications.

Is the lens suitable for LED street-light retrofit projects?

It can be evaluated for retrofit projects where the mechanical, thermal and electrical characteristics of the existing housing are compatible with the LED module.

How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
