7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-LD236X70-28-7070-158X103
Certification :
SGS,RoHS,CE
Place of Origin :
Shenzhen,China
MOQ :
1
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
3000pcs/month
Delivery Time :
7-10 working days
Packaging Details :
cartons
Price :
negotiate
Product Name :
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
Model No. :
SUN-LD236X70-28-7070-158X103
Lens Size :
236x70mm
PCB Size :
220x54X1.5mm
Beam Angle :
158x103 degree
Output Voltage :
48V
Circuit :
2 series 14 parallel
LED Chip :
5050 SMD LED
Description
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
Quick Detail
Model No. SUN-LD236X70-28-7070-158X103

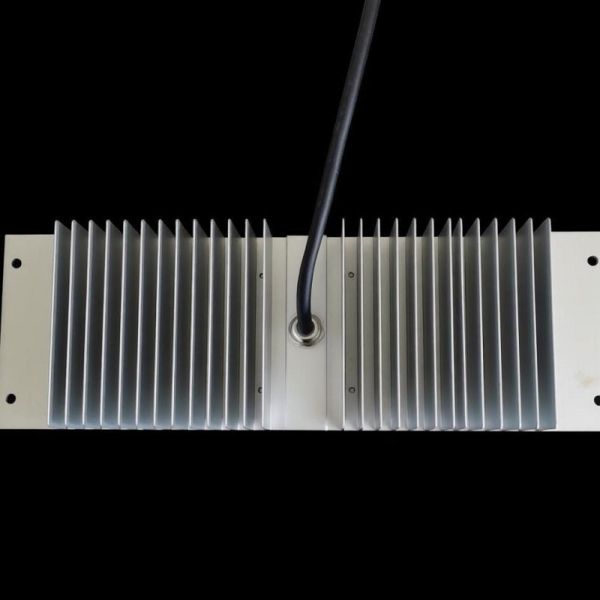

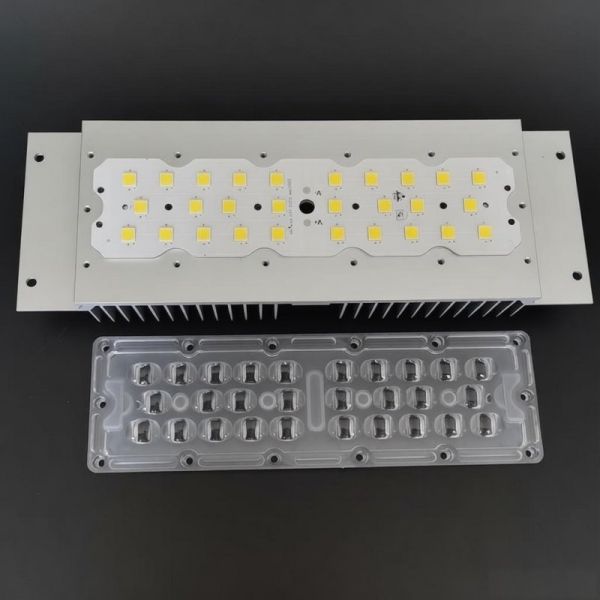

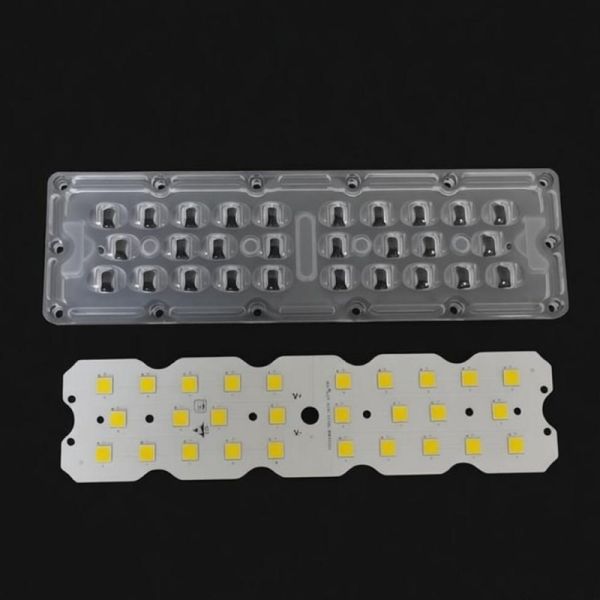

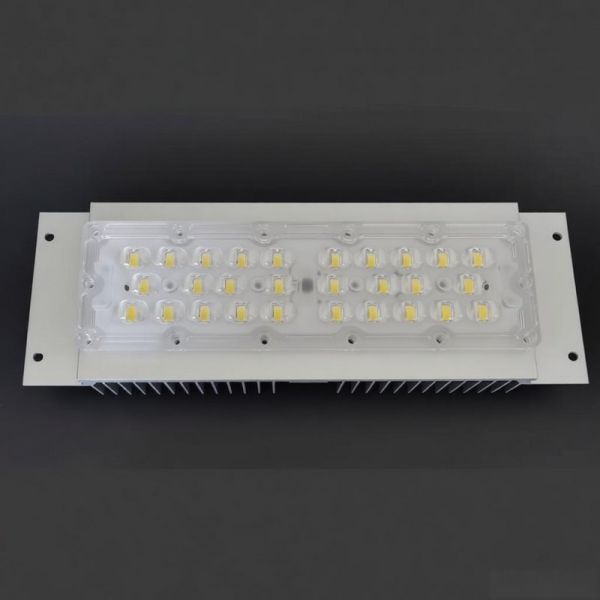

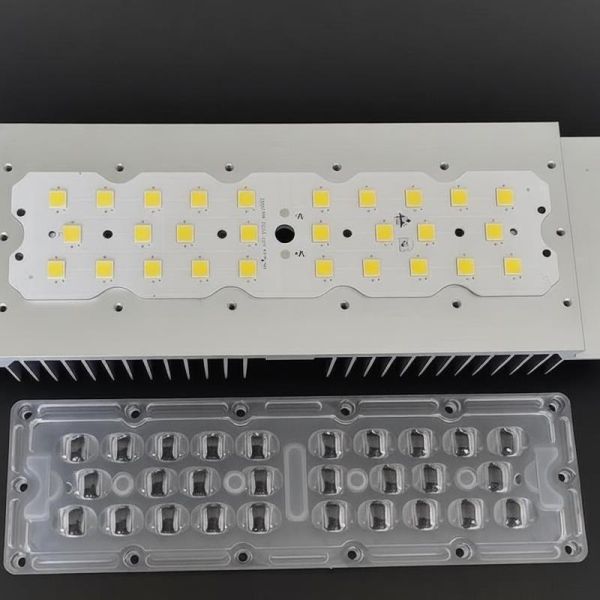

Main Parts 28 Array lens, silicon gasket, PCB board with LED, heatsink
Power (watt) 50-100w
Angle Viewing 158x103 degree
Lens Size 236x70mm
PCB Size 220x54X1.5mm
Circuit for 5050smd led 2 series 14 parallel
Lens Material PC
LED Chip PH 5050, White color 3000-6500k 1-5w/pc
Output Voltage 48v
Lumen Value 130-160lm/w for pcb board
Transmittance 93%
Other Beam Angle 60/90 degree
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund
Main market Europe, South America, North America, Asia

Model No. SUN-LD236X70--28-7070-158x103
Test Power (W) 30 40 50 60 70 100 120 140
Power (W) 26.65 35.7 44 53 64.4 87.8 112 136.6
Voltage (Vf / V) 41 41.6 42 42.5 43 44 45 45.5
Current (If / mA) 650 860 1050 1250 1500 2000 2500 3000
Key Features
  • Ideal for retrofitting old lamps or designing power lamps with SKD 28 LED Array lens and PCB Module
  • Lowest total cost solution to replace Metal Halide or HPS bulbs while reusing existing housings
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to 70°C
  • Contains no mercury or lead
  • Does not produce harmful UV rays
  • Directional light design ensures dark sky compliance and eliminates light pollution

Lens Dimensions and Beam Pattern
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting

Applications
Street lighting, highway LED lamps, tunnel lamps, square lamps, road lamps, city lighting, parking spot lamps, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.
FQA
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the lead time?
Samples require 3-5 days. Mass production takes 1-2 weeks for orders exceeding standard quantities.
Is there a minimum order quantity?
Low MOQ available - 1 piece for sample checking is acceptable.
How are goods shipped and delivered?
We typically ship via DHL, UPS, FedEx, or TNT (3-5 days delivery). Airline and sea shipping options also available.
Can I print my logo on the products?
Yes. Please inform us before production and confirm the design based on our sample.
Do you offer product guarantees?
Yes, we offer 3 years warranty on our products.
Shipping&Delivery Informations
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB|EXW|CIF|CFR
Sample availability YES
Standard Delivery time 3-4 working days
