Specifications
Brand Name :
AVENTICS
Model Number :
ISO 15552, series PRA-MS
Place of Origin :
china
MOQ :
1
Price :
$400
Payment Terms :
T/T
Standards :
ISO 15552
Compressed air connection :
Internal thread
Working pressure min./max. :
2 ... 10 bar
Ambient temperature min./max. :
-20 ... 70 °C
Medium temperature min./max. :
-20 ... 80 °C
Medium :
Compressed air
Max. particle size :
50 µm
Oil content of compressed air :
0 ... 5 mg/m³
Pressure for determining piston forces :
6.3 bar
Description

Product Description:

The AVENTICS Series PRA (ISO 15552) cylinders are a paragon of modern engineering design. With their sleek and compact design profile, they are a space - saving solution, perfect for installations where every inch matters. The integrated sensor slots add a layer of intelligence, allowing for seamless sensor integration. This not only enables precise monitoring and control but also enhances overall system performance.
These cylinders are incredibly versatile and find applications across all industries. In general automation technology, they drive the smooth operation of automated processes. For machine and systems construction, they provide the reliable power needed for robust machinery. Moreover, they are well - suited for specific industry applications, adapting to the unique requirements of various sectors. Whether it's a high - tech manufacturing line or a specialized industrial setup, the AVENTICS Series PRA cylinders are a top choice for reliable and efficient operation.

Product Features:


6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly
Available in piston diameters from 32 mm to 125 mm
Modular sealing system allows for adaptability
Advanced pneumatic end position cushioning
Additional elastic damping elements
Wide range of variants and accessories available in the configurator

Technical information:

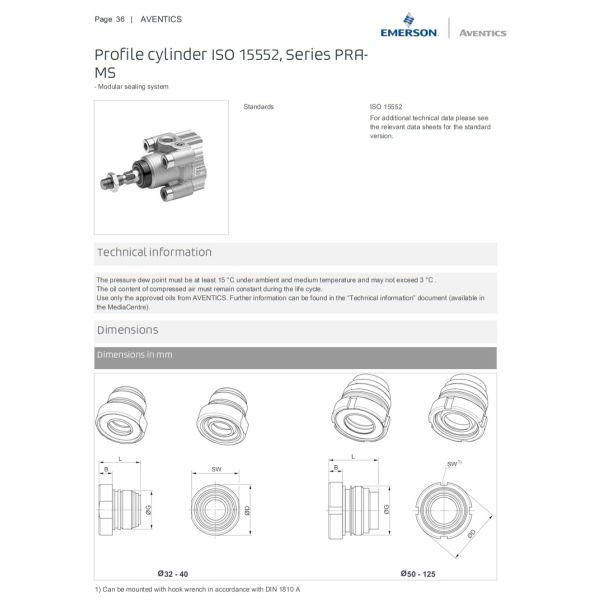

The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).

Material:

Cylinder tube Aluminum, anodized
Piston rod Stainless steel
Frontcover Die-cast aluminum
End cover Die-cast aluminum
Seal Polyurethane
Nut for piston rod Steel, galvanized
Scramer Polyurethane
