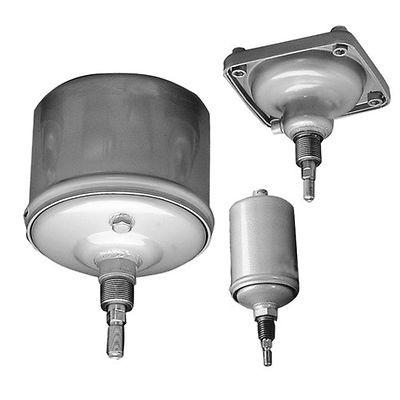

Steel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single Acting
Steel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single Acting
Steel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single Acting
Steel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single Acting
Specifications
Brand Name :
AVENTICS
Model Number :
Series 102
MOQ :
1
Price :
$255
Payment Terms :
T/T
Supply Ability :
100
Description

AVENTICS Series 102 Is Cost-Efficient Solution To Generate High Forces For Press Application For Example.

Product Description

The AVENTICS Series 102 is an unbeatable cost - efficient powerhouse. Engineered to generate high forces, it's tailor - made for press applications. Whether in large - scale manufacturing or precision - focused workshops, this series offers reliable performance without breaking the bank. Its robust design ensures durability, making it a top choice for industries seeking high - value, high - performance solutions.

Product Features:

  • Ø 60 mm ... 250 mm
  • Double-acting and single-acting, retracted without pressure

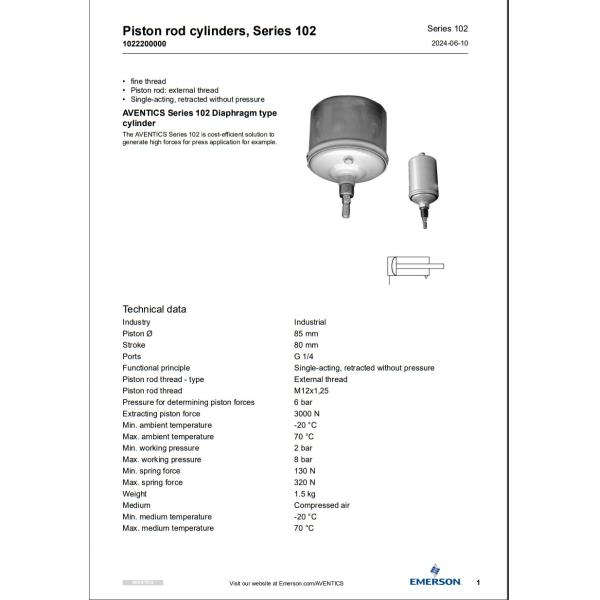

DESCRIPTION:

Functional principle Single-acting, retracted without pressure
Piston diameter 85 mm
Piston rod thread M12x1,25
Stroke 80 mm
Sealing material Acrylonitrile butadiene rubber
Compressed air connection G 1/4
Compressed air connection type Internal thread
Compressed air connection Internal thread
Working pressure min./max. 2 … 8 bar
Ambient temperature min./max. -20 … 70 °C
Medium temperature min./max. -20 … 70 °C
Medium Compressed air
Max. particle size 50 µm
Oil content of compressed air 0 … 5 mg/m³
Pressure for determining piston forces 6 bar
Weight See table
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).
Tolerance at 40 mm , 50 mm , 80 mm stroke: ± 3 mm
Tolerance at 100 mm stroke: + 6 mm /- 1 mm

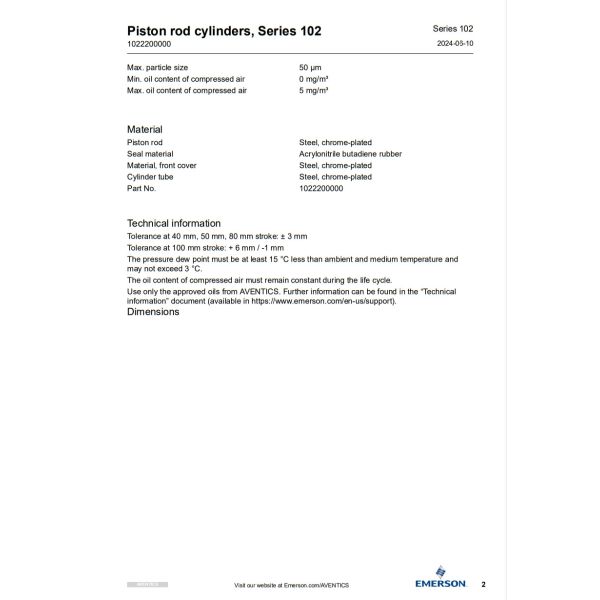

Material
Cylinder tube Steel
Piston rod Steel
Front cover Steel
Seal Acrylonitrile butadiene rubber

Product Details:

Steel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single ActingSteel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single ActingSteel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single ActingSteel Aventics Pneumatic Piston Rod Cylinder Series 102 Double Acting Single Acting
