Product Description:

Discover the TopWorx Valve position Switch TXS - D225LMM161 in the TXS Series. It's a powerhouse in valve monitoring, delivering exceptional value. Housed in a compact, direct - mount design, it packs full functionality, saving space and simplifying installation. The entire TX Series is a game - changer for hazardous areas. Equipped with diverse position sensors, integrated solenoid valves, and bus networks, it meets IECEx, ATEX, and UL standards, ensuring top - notch safety and reliability. The GO Switch products within this series are a highlight. They maintain the trusted reliability of existing GO Switches while introducing enhanced features. The 36 GO Switch provides flexibility with 2 or 4 switch configuration options for TX and TV chassis. And with an optional integrated solenoid valve in the 2 - switch setup, you get precise control over your processes. Ideal for industries like oil, gas, and chemical manufacturing.

Features:

Direct mount composite resin
Essentially A complete, suitable for all environments
Multiple bus network and sensor options
Suitable for non-flammable applications
Low-key and compact design
Impact-resistant high visibility display

Product function description:

Introduction to multiple D-Series products for a variety of environments

1, DXS 316 stainless steel housing: fire/explosion/intrinsic safety

2, Visual display device: impact resistant polycarbonate/intuitive color (green & red)/ adjustable & customizable/preset to 90° for easy installation/height less than 1.75 inches

3, bus network/sensor selection: FOUNDATION, DeviceNet, AS-Interface, HART/GO™ Switch, proximity, P+F™, mechanical, 4-20mA transmitter

4, Stainless steel shaft and fasteners: ¼ inch DD or NAMUR shaft/external cap bolt/additional dome screw

5, Rugged housing for all environments: aluminum, composite, stainless steel/up to four conduit inlet/O-ring seals available everywhere/Nitrile rubber, fluororubber, EPDM, silicone O-ring options

6. Pilot valve: Aluminum and 304, 316 stainless steel available/Low power solenoid or ultra low power piezoelectric/single or double coil / 1.2Cv or 3.0Cv/integrated installation for additional protection/Built-in 5 micron filter to prevent debris from entering the pilot valve / Quick and easy troubleshooting: The pneumatic pipe uses color code to troubleshoot when the system is pressurized, and the valve can be troubleshooting without removing the lid

7, applicable environment: suitable for the environment from -60°C /-76°F to 175°C/347°F/NEMA type 4, 4X, IP66/67

* Material: 316 stainless steel

Specification:

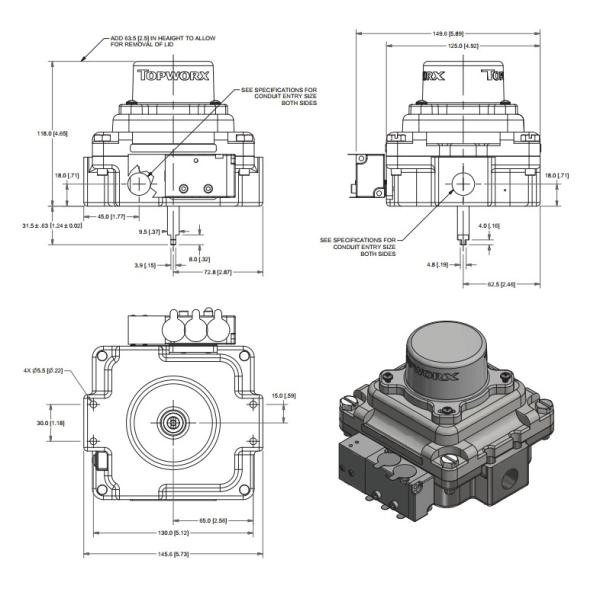

Product drawing:

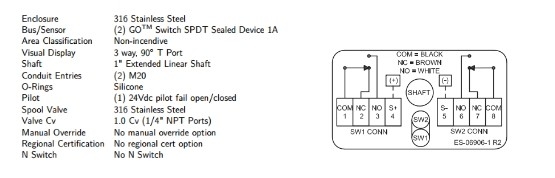

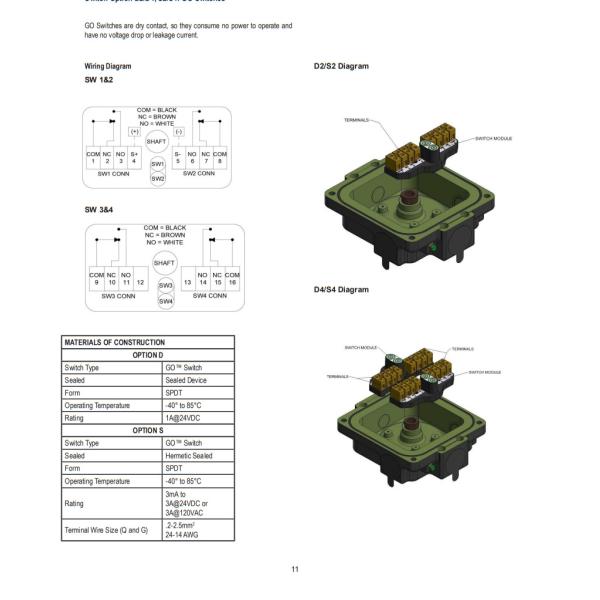

TXS-D225LMM161 Parameters + Wiring diagram:

Product Details:
