Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe
Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe
Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe
Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe
Specifications
Brand Name :
TOPWOEX limit Switch
Model Number :
TVF-M2WGNPM
Place of Origin :
china
MOQ :
1
Price :
$520
Form :
SPDT
Terminal Maximum wire size :
4mm squared (14AWG)
Conforming to Standards :
UL: 1054
Contact Resistance :
15mΩ max. (initial)
Description

Product Description:

The TopWorx™ TVF shines as the perfect choice for non - incendive applications. When it comes to valve monitoring and control, the TX - Series switchboxes are a top pick. They pack full functionality into compact, direct - mount enclosures, saving space and simplifying installation. With a diverse range of position sensors, integral solenoid valves, and bus networks, the TX - Series caters to all hazardous areas. Its IECEx, ATEX, and UL certifications ensure top - notch safety and reliability. The GO Switch within the TX - Series line is a game - changer. It maintains the reliability of existing models while introducing enhanced features. The 36 GO Switch gives you the flexibility to choose between 2 or 4 switch configurations for TX and TV enclosures. And with optional integrated solenoid valves in the 2 - switch setup, you get even more precise control. Ideal for industries like petrochemicals, manufacturing, and energy.

Product Specifications:

Feature OPTION M OPTION K
Switch Type Mechanical Mechanical
Sealed No No
Form SPDT SPDT
Terminal Maximum wire size 4mm squared (14AWG) 4mm squared (14AWG)
Electrical Rating 10A@125VAC or 250VAC 0.1A@125VAC MAX
Conforming to Standards UL: 1054 UL: 1054
Contact Resistance 15mΩ max. (initial) 15mΩ max. (initial)
Insulation Resistance 100MΩ min. (at 500V DC) -100MΩ min. (at 500V DC)

Product Features:

  • Intrinsically Safe and suitable for all environments
  • Variety of Bus Networks and Sensor Options
  • Impact resistant highly visable display
  • Color coded twist-set cams provide the easiest adjustment
  • Reliability in environment extermes

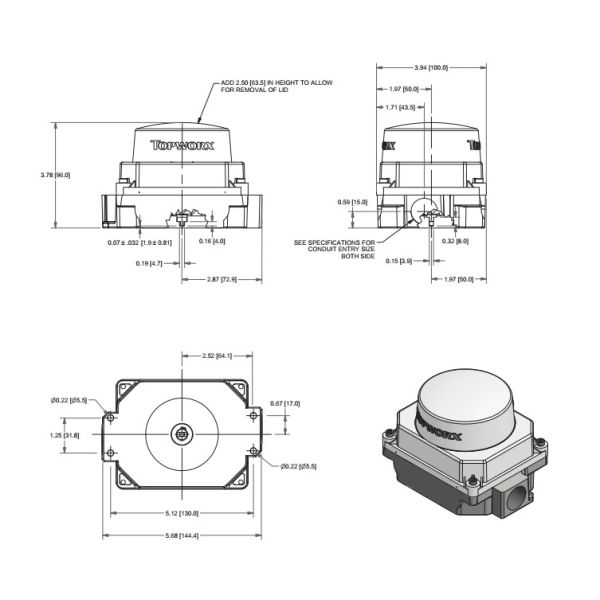

Product drawing:

Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe

Product Details:

Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically SafeTopworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe
