Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
Specifications
Brand Name :
Yan Yang Tian
Model Number :
Non-standard customized equipment
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5 Set/Sets per Month
Delivery Time :
Negotiable
Packaging Details :
Export package or according the customer's requirement
chamber length :
6-9m
Temperature uniformity :
± 3 ℃ (constant temperature area)
Operating temperature :
900℃
power :
40-60KW/380V
Furnace structure :
Modular assembly
Heating element :
Far infrared electrothermal quartz tube
Description

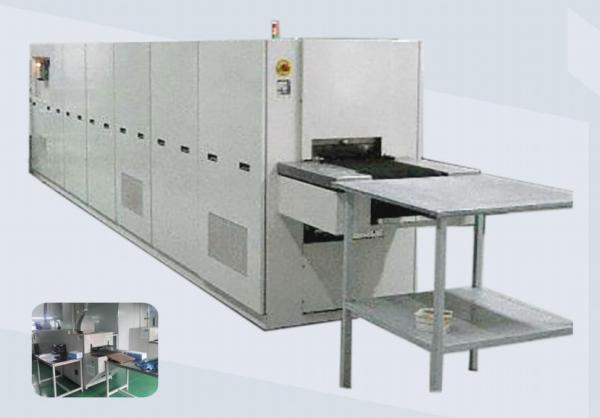

Mesh Belt Electronic Ceramic Electric Heating Silver Furnace

1, Furnace introduction

The surface silver high-temperature reduction sintering of piezoelectric ceramics and electronic ceramics is suitable for large-scale continuous production.

1. Control mode: PID intelligent program temperature control system, SCR thyristor module temperature control, with automatic constant temperature, adjustable temperature,
Superior performance such as over temperature alarm.
2. Lifting method: hydraulic lifting platform
3. Furnace material: alumina hollow ball +1400 mullite insulation brick

If you have a special sintering process, please contact us, we will tailor it for you!

Mesh Belt Electronic Ceramic Electric Heating Silver Furnace

2, Parameter attribute table

The main technical parameters
Chamber length

6-9m
Operating temperature

900℃
Power

40-60KW/380V
Temperature uniformity ± 3 ℃ (constant temperature area)
Transfer method 310S heat-resistant stainless steel mesh belt, frequency conversion speed regulation
Chamber Section size Width: 300-500; height: 80-120mm
Heating temperature zone 3-4 temperature zones, 6-8 temperature control points, up and down temperature control
Control mode PID intelligent temperature control system, SCR thyristor module control, 485 communication, with automatic constant temperature and temperature
Adjustable, over temperature alarm and other superior performance.
Furnace structure Modular assembly
Heating element Far infrared electrothermal quartz tube

3, Product purpose
It is mainly used for high-temperature sintering of various structural ceramic products such as 95 porcelain pieces, 99 porcelain pieces, 5G porcelain pieces, zirconia products, corundum porcelain pieces, etc., which is suitable for continuous production.

Please contact us for specific details, we will tailor-made for you!
