Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Lift Type High Temperature Structure Ceramic Sintering Furnace
Specifications
Brand Name :
Yan Yang Tian
Model Number :
Non-standard customized equipment
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5 Set/Sets per Month
Delivery Time :
Negotiable
Packaging Details :
Export package or according the customer's requirement
Design maximum operating temperature :
1700℃
power :
36-90KW/380V
Temperature control point :
1-2
chamber size :
Length 800-1500mm × width 500-800mm × height 400-800mm
Lifting method :
Hydraulic lifting platform
Heating element :
U-shaped silicon molybdenum rod
Description

Lift Type High-Temperature Structure Ceramic Sintering Furnace

1, Furnace introduction

This furnace is mainly used for high-temperature sintering of alumina products such as zirconia products, corundum products, and 99 ceramic parts, suitable for small batch intermittent production.

2, Parameter attribute table

The main technical parameters
Chamber size

Length 800-1500mm × width 500-800mm × height 400-800mm
Maximum operating temperature

1700℃
Power

36-90KW/380V
Temperature control point 1-2
Chamber material Alumina hollow ball +1400 mullite insulation brick
Lifting method Hydraulic lifting platform
Control mode PID intelligent program temperature control system, SCR thyristor module temperature control, with automatic constant temperature, temperature adjustable,
Superior performance such as over temperature alarm.
Heating element U-shaped silicon molybdenum rod

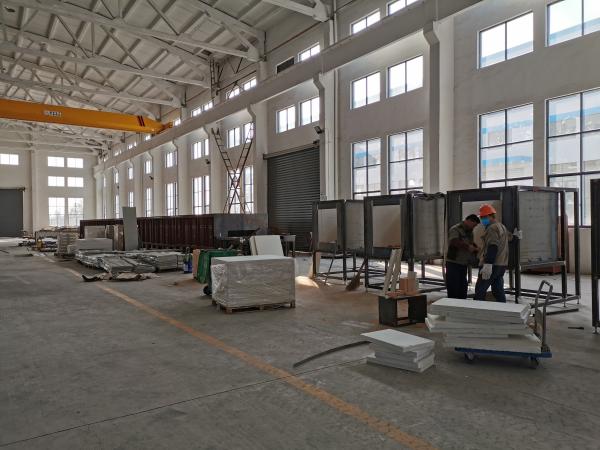

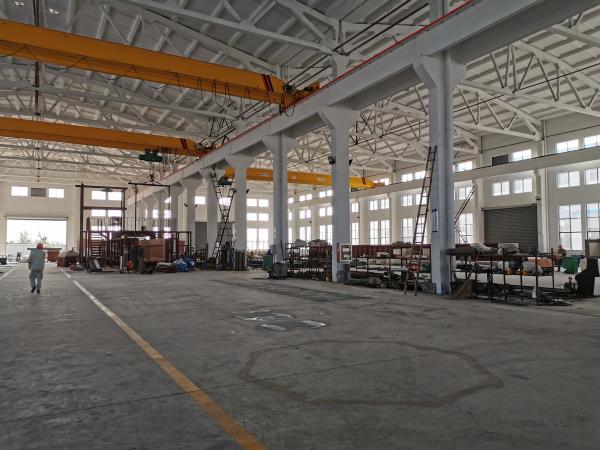

3,Project case

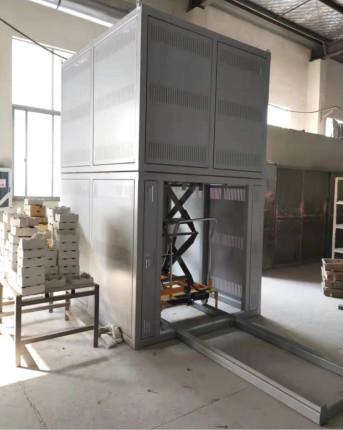

Lift Type High Temperature Structure Ceramic Sintering Furnace

Please contact us for specific details, we will tailor-made for you!

4. FAQ

1. Are you a trader or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What does the product packaging look like?
Export packaging or according to customer requirements

5, package

Delivery period: Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
