Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts
Specifications
Brand Name :
SUNNY
Model Number :
SN-SG-LOG09
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$ 200~800
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Elevator UCMP Overspeed Governor
Sheave diameter :
Ф200mm
Rated Speed :
1.0m/S
Speed Limit Wire Rope :
6/6.5mm
Warranty time :
12 Months
Transportation :
Sea Transportation
Type :
Overspeed Governer
Applicable :
Elevator Components
Model :
Elevator UCMP Overspeed Governor
Product name :
Elevator UCMP Overspeed Governor
Description

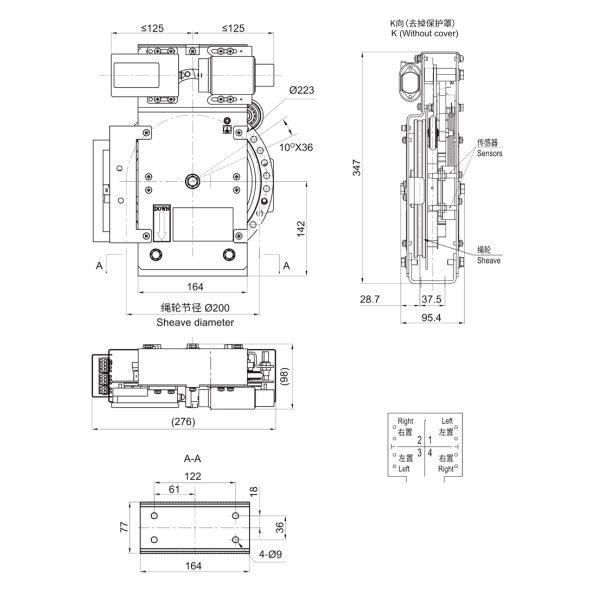

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Product Features

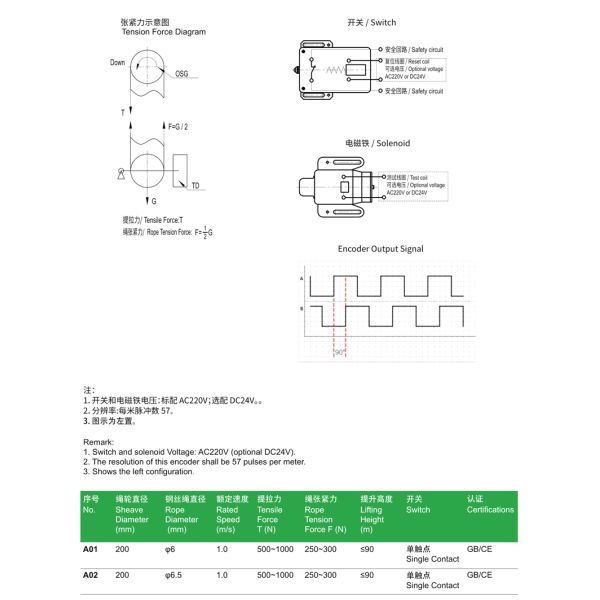

LOG09 ultra-thin overspeed governor with encoder features an ultra-thin design, making it particularly suitable for modern, compact elevator systems. Its core function is to detect the elevator's operating speed through both mechanical and electrical means. If overspeed is detected, it quickly triggers the safety clamp and brake system, ensuring safe operation.The overspeed governor features bidirectional detection, monitoring both the ascent and descent speeds of the elevator, ensuring a timely response to overspeed conditions in either direction. Furthermore, it is equipped with a rotary encoder and sensor for enhanced detection accuracy and reliability.


Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

Ф200mm Sheave Diameter Elevator UCMP Overspeed Governor For Elevator Safety Parts

FAQ
1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

2. Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

4. How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

5. Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

6. Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
