Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Specifications
Brand Name :
SUNNY
Model Number :
SN-LTD07
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$22
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Lift Tension Device
Sheave diameter :
Ф200/240mm
Speed Limit Wire Rope :
6/8mm
Warranty time :
12 Months
Transportation :
Sea Transportation
Type :
Lift Tension Device
Applicable :
Elevator Components
Model :
Lift Tension Device
Product name :
Lift Tension Device
Description
Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts
Product Features

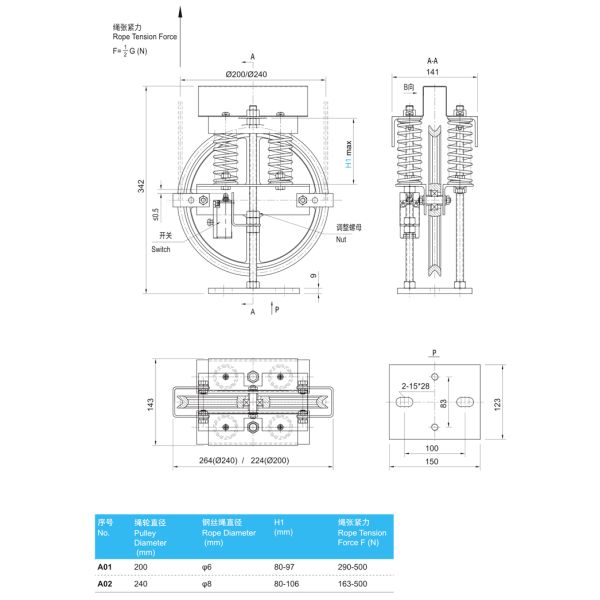

LTD07 lift tension device elevator safety component is a high-performance safety device designed specifically for elevator systems. It ensures operational stability by monitoring and adjusting wire rope tension in real time. Its core components include a mounting frame, a support frame, a tensioning assembly (including a fixing rod, a tensioning pulley, and a protective plate with a wire trough), and a spring compression assembly (including a guide shaft, an extrusion plate, a compression spring, a safety switch, and a lever). This device utilizes spring elasticity to quickly respond to wire rope slack, effectively maintaining tension during starting, stopping, and emergency braking. Complying with the "Safety Code for Elevator Manufacturing and Installation," the device utilizes spring compression technology and a dust-proof design. It features a compact structure, easy installation, and a combination of cushioning performance and broad compatibility, making it suitable for a variety of elevator systems and significantly improving safety and reliability.

Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts

Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts

Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts

Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts

Ф200/240mm Sheave Diameter Lift Tension Device Elevator Spare Parts

FAQ
1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

2. Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

4. How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

5. Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

6. Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
