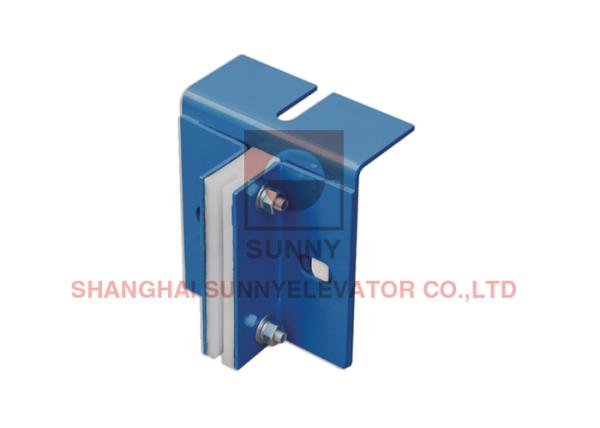

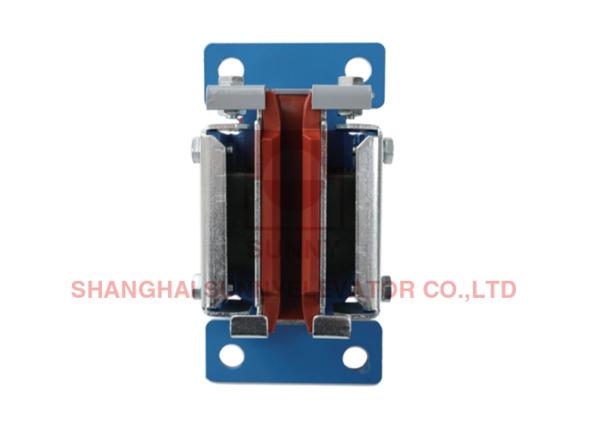

10mm/16mm Elevator Slide Speed Guide Shoe Quiet High-Speed Elevator Operation

In the intricate ecosystem of a modern elevator system, the slide speed guide shoe is a fundamental component dedicated to safety, stability, and passenger comfort. Its primary function is to guide the elevator car along the guide rails installed in the hoistway, ensuring precise vertical travel while minimizing lateral movement, vibration, and noise.

Unlike traditional roller guide shoes that use wheels, slide guide shoes employ a friction-based design. They typically consist of a sturdy metal bracket, often cast or forged steel, that holds a replaceable lining or shoe made of a composite material. This lining, commonly crafted from materials like polyurethane, nylon, or specialized polymers, is engineered for low friction, high durability, and excellent wear resistance. It is this lining that makes direct contact with the guide rail, "sliding" against it as the car moves.

The "speed" in its name is a critical differentiator. Slide guide shoes are specifically designed and certified for use in high-speed and high-rise elevator applications. While they are suitable for a wide range of speeds, their design becomes essential in systems where travel velocity exceeds 2.5 meters per second (approximately 500 feet per minute). At these higher speeds, the forces acting on the car are greater, demanding a guide system that offers superior damping characteristics to absorb vibrations and ensure a smooth ride quality. The material properties of the shoe lining play a key role in dampening high-frequency vibrations that could otherwise be transmitted into the car.

The advantages of slide speed guide shoes are significant. They provide exceptional ride smoothness and are remarkably quiet in operation, a crucial factor for high-end residential and commercial buildings. Their simple, robust design has fewer moving parts than roller guides, which can translate to lower maintenance requirements over the long term. However, they do operate on a principle of friction, which is inherently higher than the rolling friction of wheel-based guides. Modern materials have drastically reduced this coefficient of friction, but it remains a consideration for overall system efficiency.

Type	SN-DX-H21
Name	Slide speed guide shoe
Rated Speed	≤1.75m/s
Width of Guide Rails	5mm

Type	SN-DX-H22
Name	Slide speed guide shoe
Rated Speed	≤1.75m/s
Width of Guide Rails	10/16mm
Allowable gross mass	≤1000kg
Pressure on the front surface of guide rail	≤1000N
Pressure on the side surface of guide rail	≤650N

SHOE LINING
