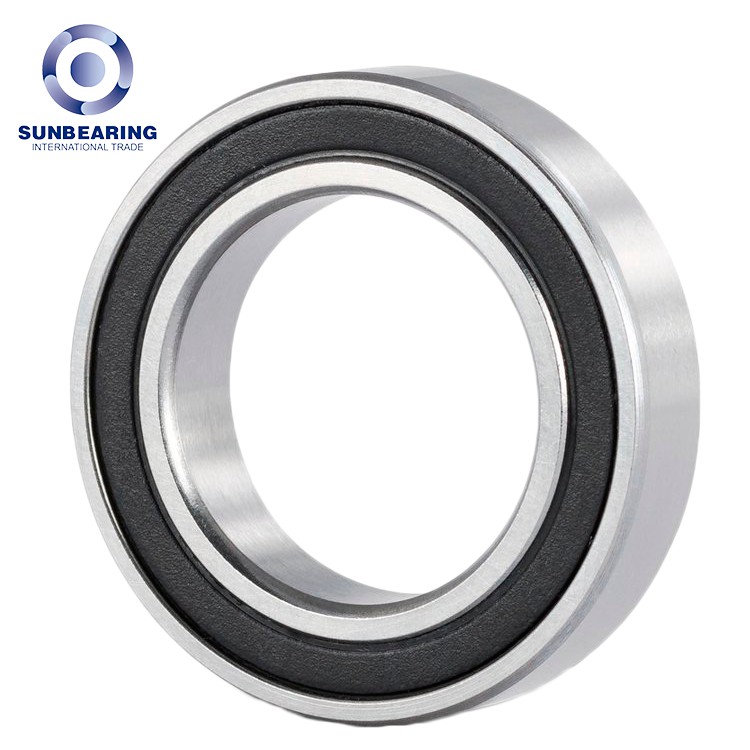

6808 Thin Section Deep Groove Ball Bearing 40*52*7mm Single Row SUNBEARING
6808 Thin Section Deep Groove Ball Bearing 40*52*7mm Single Row SUNBEARING
Specifications
Brand Name :
SUNBEARING
Model Number :
6808
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-4weeks
Description
6808 Thin Section Deep Groove Ball Bearing 40*52*7mm Single Row SUNBEARING
Product Specification:
Bore diameter: 40 mm
Basic dynamic load rating: 4,923 N
Outside diameter: 52 mm
Basic static load rating: 4,178 N
Overall width: 7 mm
Max Speed (Grease): 12,000 rpm
Rows of Balls: Single
Ball Qty: 21
Outer ring type: Unsplit
Ball Dia (Dw): 3.5 mm
Radial clearance class: C0 Standard Clearance
Mass: 0.035 kg
Closure Type: 2RS
Max. Shaft Shoulder Dia. Inner (Ui): 43.2 mm
Materia: Chrome Steel
Min. Housing Shoulder Dia., Outer (Uo): 48.99 mm
Cage Material: Sheet Steel
Precision: A1
Radius (min) (rs): 0.3 mm
factor f0: 16.36808


Bearing Short Description
The main features:- Lubricant cannot be washed out- Reduced risk of corrosion- Larger lubricant reservoir- Longer lubricant service life
Technical specifications:Material: steel
Bearing Type: deep groove ball bearing 61808/6808
Material: 100Cr6 bearing steelDimension AØxIØxB: 40x52x7 mm
Seal: 2RS - double-sided grinding seal
Execution: Solid Oil technology
Silver 6808 Deep Groove Ball Bearing Material 6808 ball-bearing uses polymer material. The polymer material is pressed into the free space of the bearing. This leaves a very small gap between the polymer and the rolling elements or the raceways, which allows the bearing parts to circulate freely. The polymer material has a sponge-like structure with millions of microscopic pores, which retain the lubricating oil due to the surface tension. In operation, the polymer matrix releases the lubricating oil into the small gap and thus ensures effective lubrication. Note: When pressing in ball bearings, always make sure that the bearing is always pressed in via the outer ring, which is also the seat of the bearing. Example hub: The hub body bearings are pressed in there via the outer ring. The bearing may therefore only be pressed in via the outer ring. Never over the inner ring.
