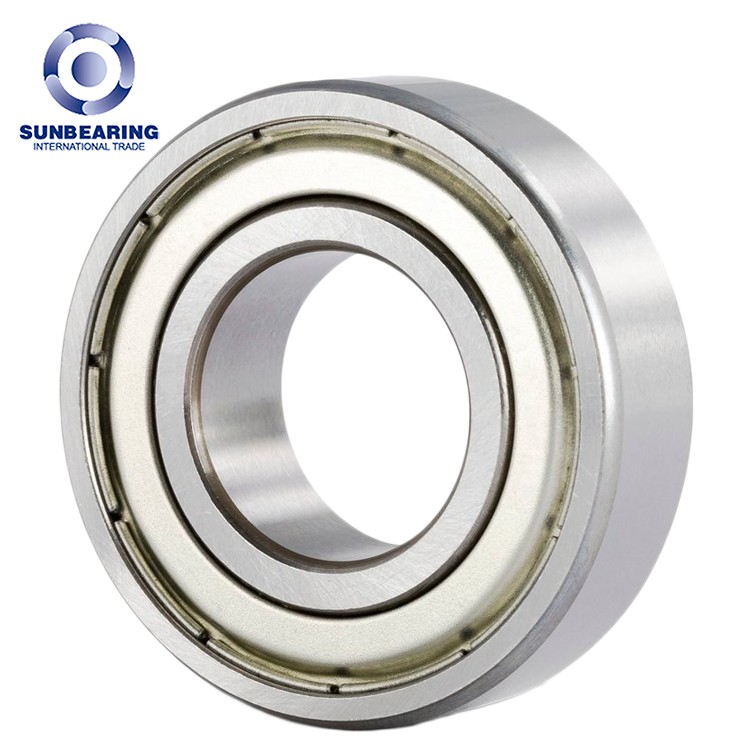

6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
6203 ZZ Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
Specifications
Brand Name :
SUNBEARING
Model Number :
6203
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, PayPal, Western Union
Delivery Time :
2-4weeks
Description
6203 2Z Single Row Deep Groove Ball Bearing 17*40*12mm Chrome Steel SUNBEARING
Product Specification
Bore diameter: 17 mm
Basic dynamic load rating: 9.95kN
Outside diameter: 40 mm
Basic static load rating: 4.75kN
Overall width: 12 mm
Fatigue load limit: 0.2kN
Rows of Balls: Single
Reference speed: 38000r/min
Outer ring type: Unsplit
Limiting speed:19000r/min
Radial clearance class: CN (Standard)
Mass: 0.067kg
Closure Type: ZZ
Ball Qty: 8
Material: Chrome Steel
Ball Dia (Dw): 6.747 mm
Cage Material: Sheet Steel
Max. Shaft Shoulder Dia.Inner (Li): 25 mm
Precision: A1Min.
Housing Shoulder Dia., Outer (Lo): 34 mm

6203 Bearing Short Description
6203 bearing is one of the most common ball bearings that have 17mm inner diameter and 40mm outer diameter, before the seals were inserted, grease was added to give longer life to the bearing assembly, 6203 ball bearing is also an economical item, notice the price in relation to the dimensions, however, metric bearings are generally less in price than the imperial inch standard, the reason is simple, the higher the demand, the higher the mass production and lower the cost.

Deep Groove Ball Bearing FeaturesSingle row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings, and ball cage assemblies. They are simple in design robust in operation and easy to maintain. Capable of supporting radial and moderate axial loads in both directions scaled for life bearingSuper finished raceways improve lubrication and bearing life operating temperature-10 to 100°C6203 Bearing ApplicationDeep groove ball bearings can be used in gearboxes, instruments, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yos, etc.
