Specifications
Brand Name :
Keda
Model Number :
Amphibious Excavator
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
30272
Payment Terms :
T/T
Supply Ability :
60days
Delivery Time :
60
Description

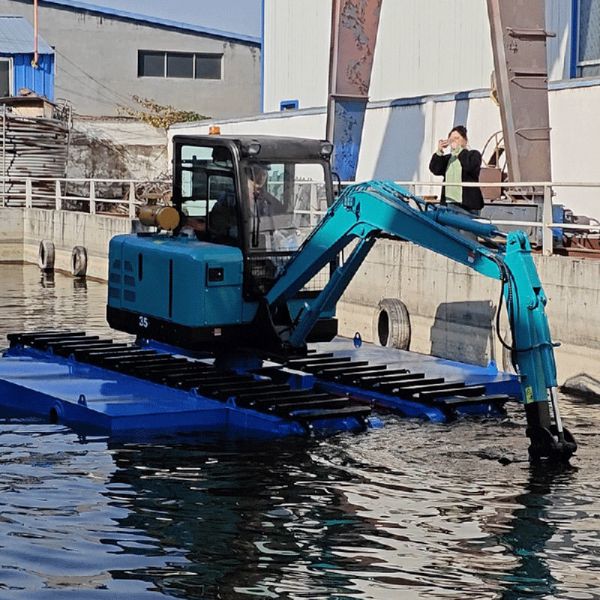

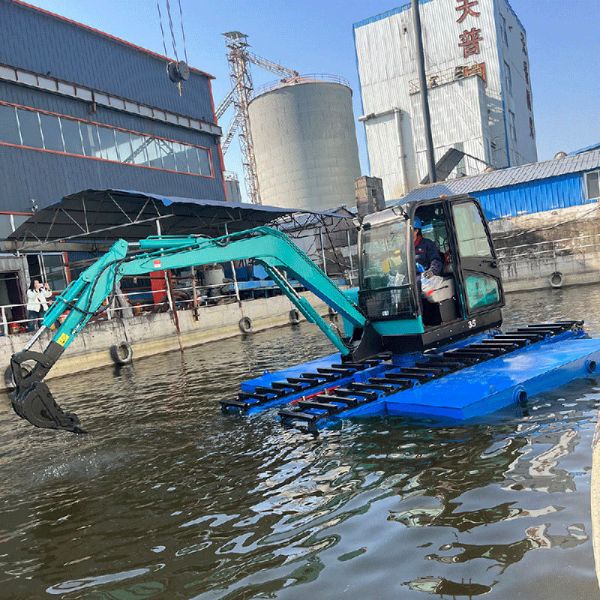

Keda Custom Amphibious Excavator
This product is a multi-purpose excavator suitable for land, swamp soft ground and shallow water working environment. The walking device adopts a multihull pontoon structure and a sealed box-shaped track shoe, which can safely walk and work on silt and water.
The front head can replace the gun head, reamer head, bucket and other devices to ensure the quality of work and the efficiency of digging, and improve the convenience and comfort of operation. The scientific and reasonable matching of the advanced hydraulic system and the power system device can easily realize the compound operation action and ensure the unity of high efficiency and high economy.

KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System

KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System

Product parameters
The Pontoon
Undercariage
Model of Pontoon Undercariage
JY200
Travel Motor Assembly
DOOSANTM60VCx2
Pontoon and Track Shoe
Material:Q355B Reinforced Steel
Thickness of pontoon:Bottom6mm, Side4mm
Chains on Each Pontoon
3 track chains on each pontoon
Material of Chain
40Cr Hard-wearing Steel
Dimension of the Pontoon
10000mmx1970mmx1840mm-single
10000mmx5200mmx1840mm-after connected
Anti-rust technology
We use advanced environmental shot blasting technology which can
effectively improve the service life of the pontoon.
Color
Grey
Pontoon pressing technology
Increase the integral strength of the pontoon, reduce the weight,
improve the relative buoyancy of the whole machine, beautiful and
practical
Side Pontoons with spuds
Dimension of the side pontoon:
7x1.5x1m-each
Spud length:8m
2pes hydraulic full automatic spud
The automatic spud, on the spud, we assembled the motor, when the
spuds dump, rise and fall all finished by the oil cylinder motor, just
operate the switch is ok
Qingzhou Keda Mining Machine Co., Ltd.
Qingzhou Keda Mining Machine Co., Ltd. is a re-registered modern formal company of the shareholders. Our company mainly produces iron selecting equipment, all kinds of dredgers, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on. There are more than a hundred kinds of products. We design and produce various products according to customers' requirements and geographical conditions. Our company is a modern large-scale mineral processing equipment manufacturer specialized in the research and development, engineering design, production, installation, commissioning and after-sales service.
Our company has independent design and R & D capabilities, has dozens of intellectual property certificates, and the products are sold all over the world.
