Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$15,000/sets >=1 sets
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Motor, Gear, Pump
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
6.5 m
Draught :
40 inch
Dimension(L*W*H) :
11*3.3*3.1m, 11*3.3*3.1m
Weight :
20 KG, 20t
Warranty :
1 Year
Engine :
Cummins made in China
Engine power :
194KW
Usage :
Port River Lake Sea
Name :
Track Type Multifunctional Amphibious Dredger Made in Keda
Color :
Customer's Requirement
Application :
cutter suction, digging, grabbing, piling, weeding
Max. dredging depth :
6.5m
Max. discharging distance :
1500m
Applicable Industries :
Manufacturing Plant, Energy & Mining
Showroom Location :
Philippines, Indonesia, Russia
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Condition :
New
Certification :
CE 9001
MOQ :
1
Description

Keda Series Amphibious Dredger Water Master Dredger for sand with Good Quality

Product Description

Brief Introduction

Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:

  1. Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
  2. Self-propulsion with propellers;
  3. Work stable, with spuds and support legs to keep balance;
  4. High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
  5. One person operation. Workers with excavator operation skills can operate easily after a little training;
  6. Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
  7. Lights on dredger are available to make sure constant work for maximum efficiency.

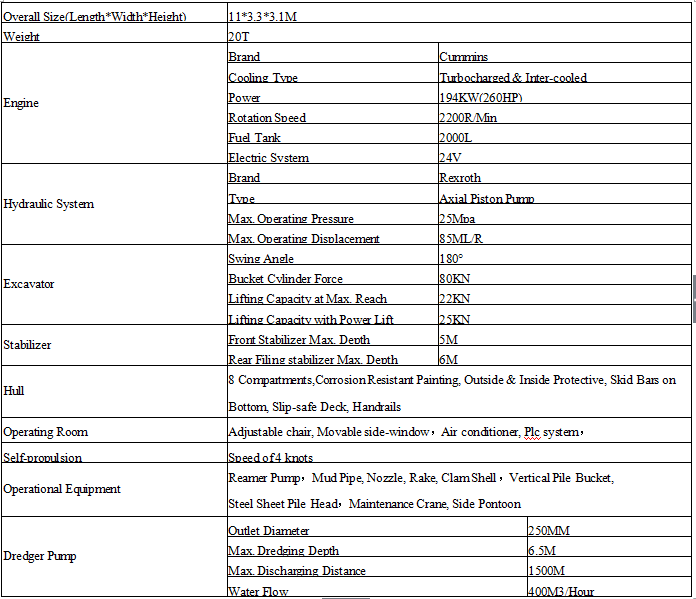

Parameter

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

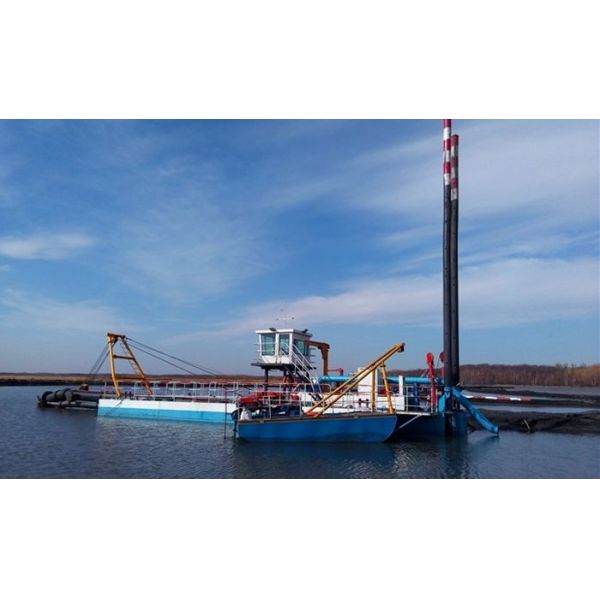

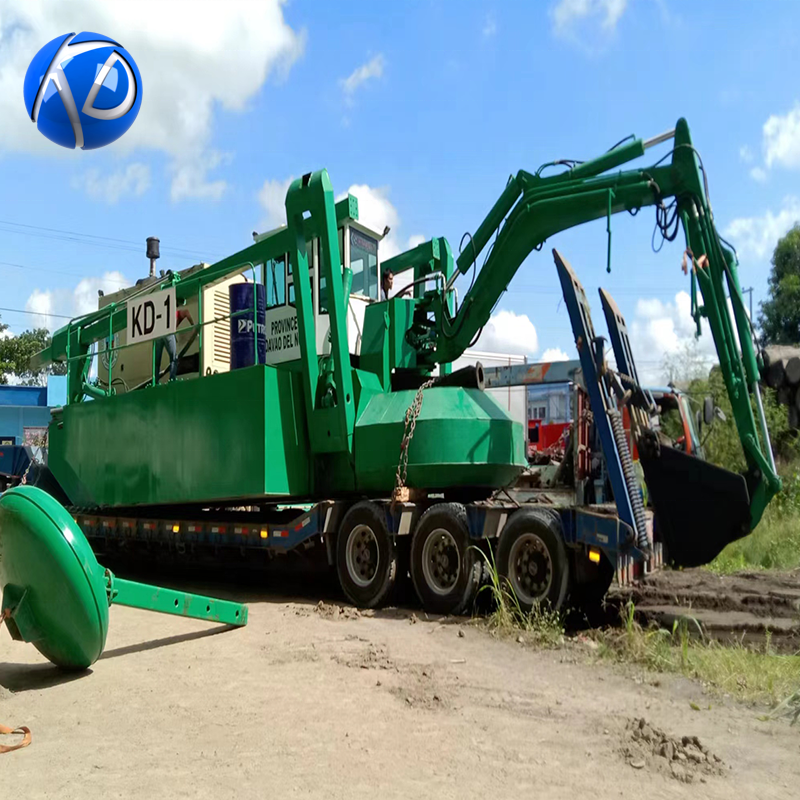

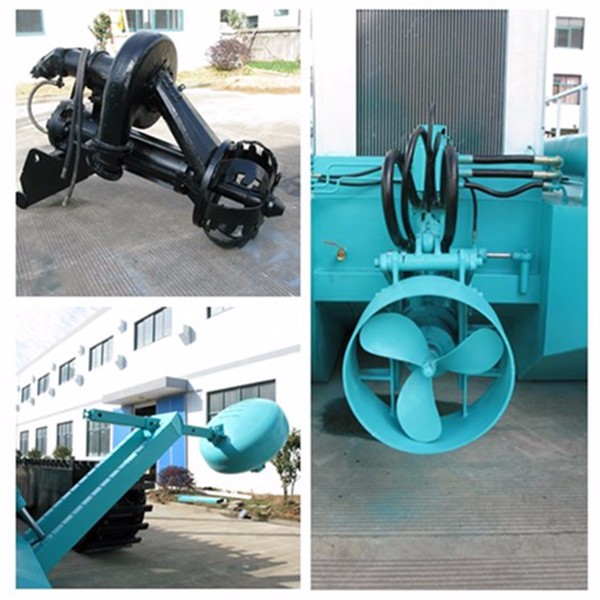

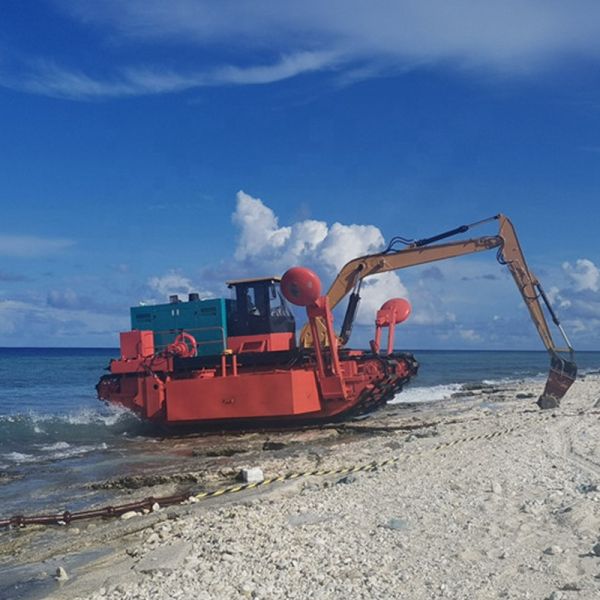

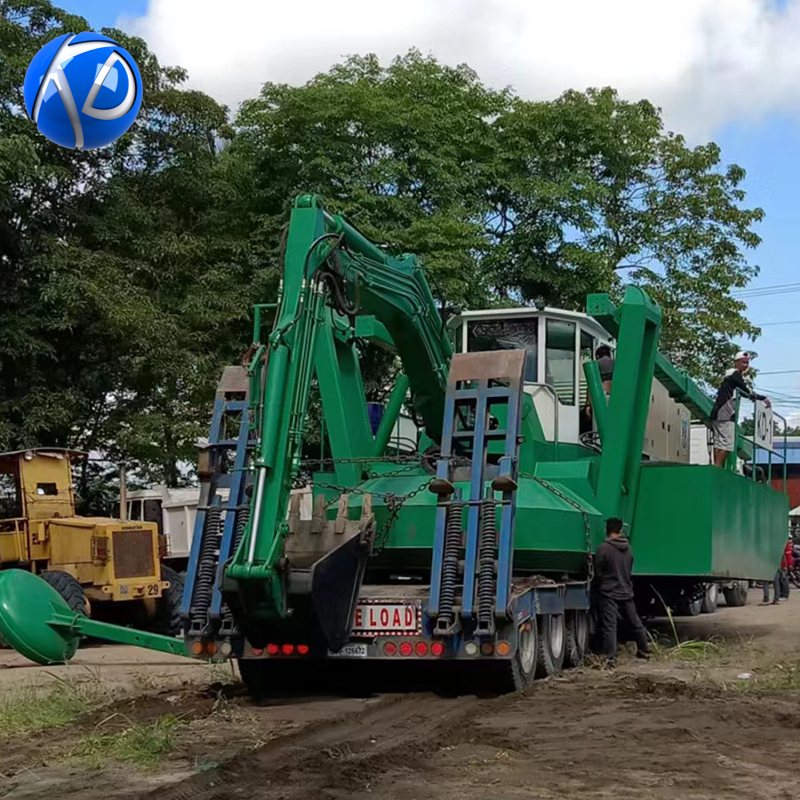

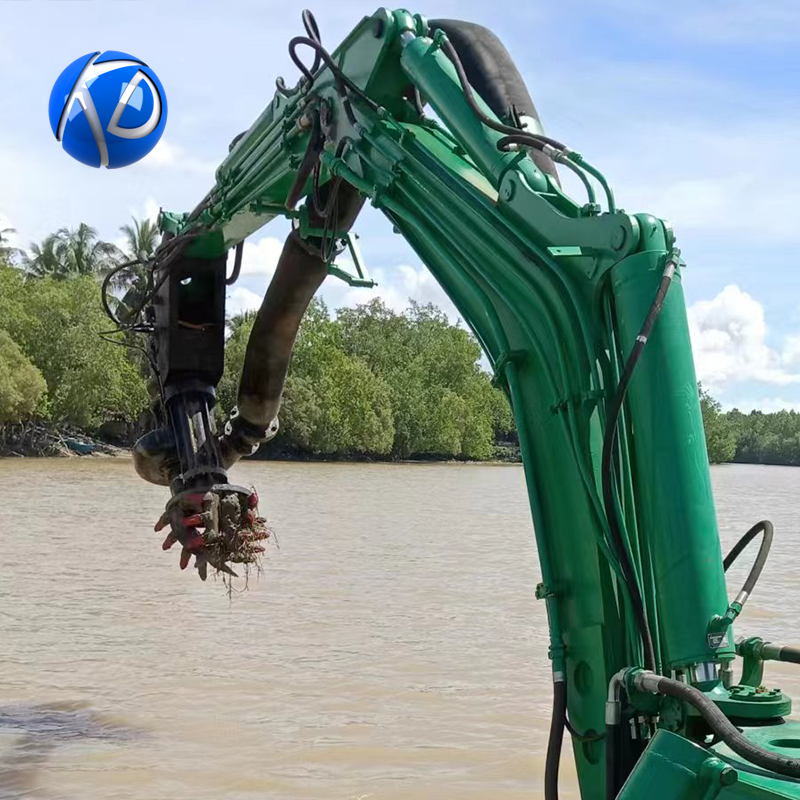

Images in the factory and at the working site

Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc.

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger FunctionKEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger FunctionKEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger FunctionKEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

Advantages

  1. Wide applicability. Can be used for cutter suction, digging, grabbing, piling, weeding, barrier cleaning etc. in water area of closed, narrow, shallow, heavily polluted etc.
  2. Strong mobility. No need for crane, can go in and out of the water area easily; Self-propulsion with propellers; stable with spuds and support legs.
  3. High automation. Workers with excavator operation skills can operate easily after a little training.
  4. Good economics. Using of submersible mud pump cutter compound equipment ensures the slurry density high; Comparing with cabin mud pump, the oil consumption is reduced obviously.
No.NameSpecification
1Size(L*W*H)11*3.3*3.1m
2Weight25t
3EngineCummins Made In China
4Hydraulic SystemRexroth brand made in Germany
5Excavator
Swinging angle180º
Lifting capacity at max. reach22kN
6Dredge Pump
Outlet diameter250mm
Max. dredging depth6.5m
Max. discharging distance1500m
Water flow400m3/h
7Optional EquipmentSuction pump, discharge pipe, nozzle, rake, clam shell, vertical pile bucket, steel sheet pile head, maintenance crane, crawler pontoon

Packaging & Shipping

In bulk or as required

Other Related products

Cutter Suction Dredger

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

Bucket Chain Sand Dredger

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

Amphibious dredger

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

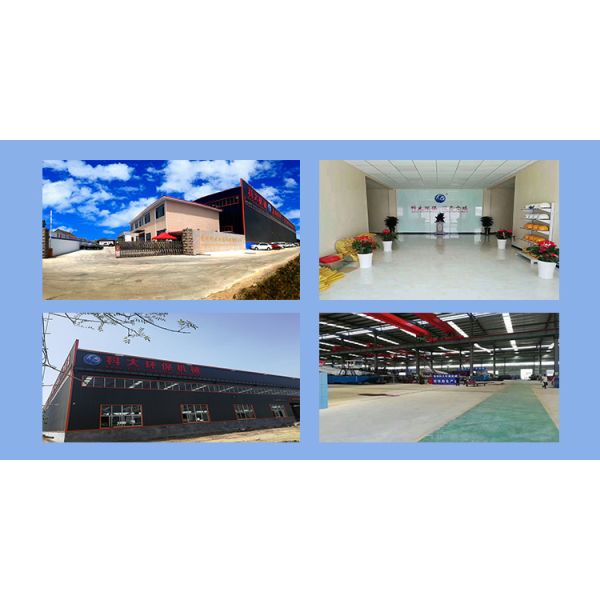

Company Information

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

Qingzhou Keda Mining Machine Co., Ltd. locates in Qingzhou City, Shandong Province, China.

1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to fields of gold mining, sand pumping and desilting with long time exploring and R&D experience.

2.All our products have been certified by ISO9001 and many of them have been exported to more than fifteen countries and regions such as Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New Guinea, Bangladesh, Sultan, Korea, USA, Russia, India and so on

Customers' Visitors

KEDA 2024 Self-Propulsion Track Type Amphibious Excavator with Cutter Suction Dredger Function

FAQ

  1. Is our company a direct or indirect producer?

    — Our company is a direct producer.

  2. What's the main product of our company?

    — Our main product is gold extracting equipment.

  3. Are our products certified or patented?

    — Yes, we only provide certified products.

  4. Can we offer good after sale service?

    — Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.

Thanks so much for your browse. If you have any questions about our company and products, please feel free to contact us at any time, we will try our best to serve you.
