Specifications
Brand Name :
KeDa
Place of Origin :
shandong china
MOQ :
1
Price :
$110,000/sets >=1 sets
Payment Terms :
T/T,L/C
Delivery Time :
30
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Core Components :
Engine, Gearbox, Pump
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
12 m
Draught :
0.85m-15m
Dimension(L*W*H) :
34.5*7*2M
Weight :
110000 KG
Warranty :
1 Year
Product name :
20 inch Cutter Suction Dredger
Work site :
River Lake Port Coastal Area
Water flow :
5000 M3/h
Discharge distance :
as per customer's request
Diameter discharge pipe :
20 inch/640mm
Diameter suction pipe :
22inch/700mm
After-sales Service Provided :
Engineers available to service machinery overseas, Online Support
Applicable Industries :
Construction works , Energy & Mining
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Condition :
New
Certification :
CE 9001
Model Number :
CSD150；CSD200;CSD250;CSD300;CSD400;CSD450
Hull Material :
Steel
Width :
4-15m
Colour :
customized
Description
Product Description

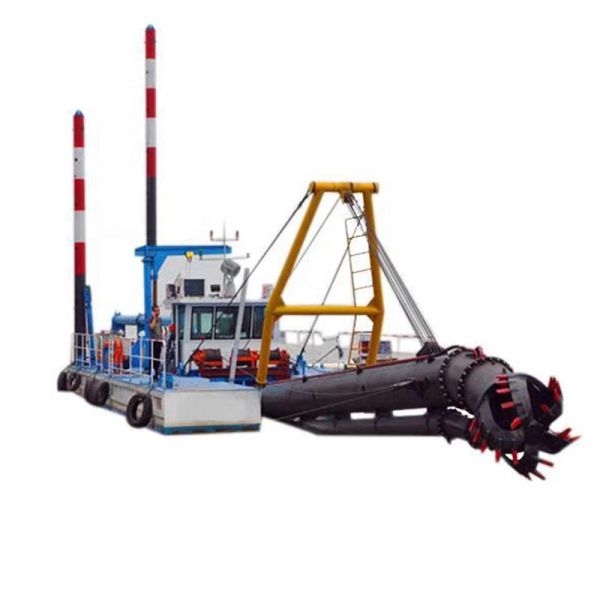

KEDA 20 inch Cutter Suction Dredger -CSD500


Keda cutter suction dredger are stationary dredgers stationary dismountable vessels equipped with a rotating cutter head. These powerful cutter suction dredgers are used in dredging rock, clay, silt and sand. During the dredging works, a spud is lowered in
the seabed to secure the vessel.

The cutter suction dredger moves forward by means of the spud carriage. A cutter suction dredger cuts hard soil into fragments with a rotating cutter head. The cut material together with a large quantity of water is drawn into the suction mouth.

The material is sucked up by dredge pumps and discharged to a deposit area through
pipelines across sea and land. In some cases, split hopper barges moored alongside the cutter suction dredger transport the soil to the deposit area to unload it there.
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth
Product parameters
ITEM
DATA
Model
CD-CSD500
Workload
5000m3/h
Dredging Depth
16 m Max
Loa(L*W*H)
38*8.5*2.5m
Suction Diametre
700mm
Discharge Diametre
640mm
Cutter Power
300kw
Main Engine
Cummins/Weituo
Discharge distance
2500m
Lift
62m
Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.
MODEL
Workload
Dredging Depth
Lift
Suction Diametre
Discharge Diametre
Discharge distance
csd150
450m3/h
5m
36m
250mm
200mm
2500m
csd200
750m3/h
6m
49m
300mm
260mm
2000m
csd250
1100m3/h
10m
56m
350mm
300mm
2000m
csd300
2200m3/h
12m
57m
530mm
450mm
1500m
csd350
3000m3/h
12m
58m
540mm
510mm
1100m
csd450
4000m3/h
15m
55m
630mm
560mm
700m
csd500
5000m3/h
16m
62m
700mm
640mm
500m
Details Images
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

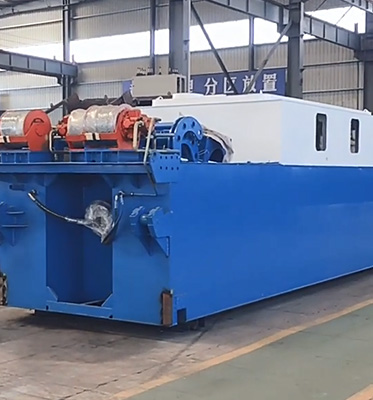

1.Dredger Hull

Name: Dredger Hull
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Hull quantity: two side hulls and one main hull
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

2. Power System

Name: Diesel Engine
Brand: World famous CUMMINS brand
Weichai brand or as required
Power: 60-2000Kw
Function: Supply power to the dredger
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

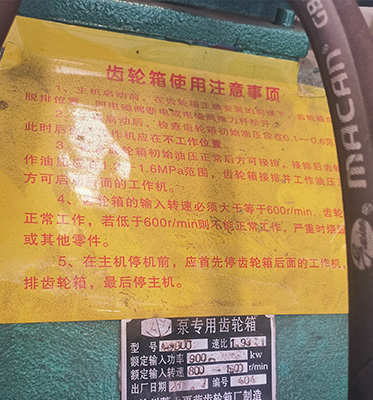

3. Marine Gear Box

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

4. Sand Pump

Pump Flow: 100-5000m3/h
Sand output: 40-1500m3/h
Material: High chromium alloy Super wearing-resistant
Discharge Distance: 100-2000m
Pump Sealing: Packing seal

20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

5. Hydraulic System

Cutter head hydraulic system
Spud hydraulic system
Winch hydraulic system
Hydraulic pump
Hydraulic oil tank and pipes
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

6. Cutter Head

Drive type: Hydraulic drive
Teeth type: Replaceable alloy teeth
Cutter blade material: 16Mn
Cutter teeth quantity: Multi teeth
Why Choose Us
Qingzhou KEDA Environment Protection Machinery Co., Ltd

1.More than 10+ years of production experience in dredgers and mineral processing equipment
2.Strong technical service team, can provide customized services
3.Own design team with 21 patents
4.Industry and Trade Integration Enterprise
5.The factory covers an area of over 22,000 square meters
6. 3 production lines-dredger-cleaning boat-gold mining equipment
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth
20 inch Fully Hydraulic Cutter Suction Dredger with 5000 M3/h Capacity and 16 m Max Dredging Depth

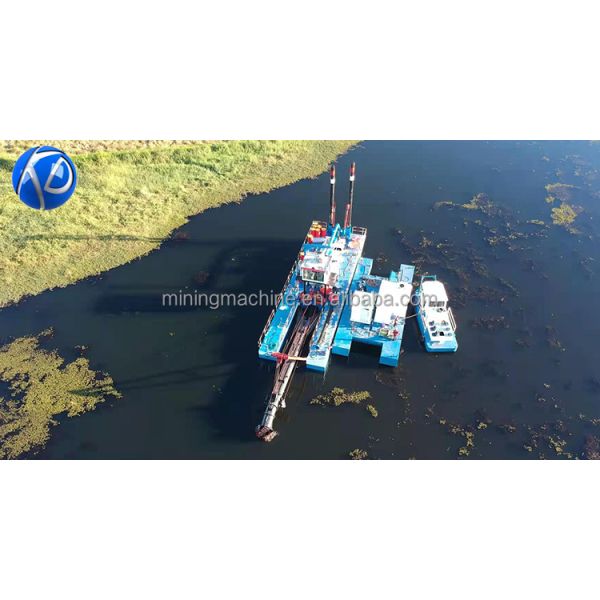

Our Cases
