Specifications
Place of Origin :
shandong china
Brand Name :
KeDa
Price :
$80,000/sets >=1 sets
Certification :
CE 9001
MOQ :
1
Model Number :
CSD150；CSD200;CSD250;CSD300;CSD400;CSD450
Delivery Time :
30
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Gearbox
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
8 m
Draught :
0.85m-15m
Dimension(L*W*H) :
12.5*5.8*1.6M
Weight :
6000 KG
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Pump Model :
10/8 Inch
Water Flow :
800 M3/H
Suction Pipeline Diameter :
300MM
Cutter Head Diameter :
950-40MM
Ladder Winches :
JC-4000
Exported Areas :
Africa,Middl East,Southeast,USA,Australia and South American
Product name :
sand suction dredger
Application :
Sand Dredging
Usage :
Port River Lake Sea
Hull Material :
Steel
Width :
4-15m
Colour :
customized
Description

18 inch/450m3/hr sand suction Dredger price/cutter suction dredger sale/barge boats

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Product Application

Cutter Suction Dredger is a special dredging machine with ISO9001:2008. Cutter Suction Dredger is flexible to most kinds of geologic structures and has a lot of obvious advantages:

  • Wide application range: It can be widely used for mining, sand production, reclamation construction, desalting, land reclamation and so on.
  • High efficiency: The max output can reach to 700 m³/h, water flow 800-5000 steer per hour, digging depth is 4-15 meters, and discharge distance is 200-1500 meters.
  • Quick return, high profits: usually, the investor can Achieve profitability within half a year. It is highly efficient with low cost, a good underwater dredging machine.
  • Standard quality: the main body of the machine is strong, durable and low failure rate.

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Basic parameters

Basic CSD Parameter
ModelKDCSD200KDCSD260KDCSD300KDCSD350KDCSD400KDCSD450KDCSD500
Dredger Body
Dimensions(L*W*H)m12.5*4.6*1.312.5*5.8*1.614.5*5.8*1.814.5*5.8*1.822*6.4*226*7*226*7.1*2.2
Engine room(m)7.5*2.25*1.48*2.8*1.69*3.2*1.89.5*3.2*1.812*3.4*214*3.4*214*3.5*2.2
Dredging data
Standard dredging depth6-7m6-8m8-10m10-12m12-14m12-14m12-14m
Pump model8/6"10/8"12/10"12/10"14/12"14/12"450WN
Water flow450m3/h800m3/h1100m3/h1500m3/h1900m3/h2500m3/h3200m3/h
Suction pipeline diameter(mm/inch)260300350350400450500
Discharge pipeline diameter(mm/inch)200260300350400450500
Devices
Total power KW176kw258kw353kw480kw640kw930kw1200kw
Generator set(kw)24242424243636
Cutter head
Diameter (mm)850-30950-401100-501200-801300-1101500-1201700-140
Winch(hydraulic)
Ladder winchesJC-3000JC-4000JC-4000JC-6000JC-6000JC-10000JC-12000
Swing winchJC-3000JC-4000JC-4000JC-6000JC-6000JC-8000JC-10000
Spuds
Quantity2222222
Spuds length*diameter(mm)8600*27311000*30013000*35015000*37717000*45017000*55017000*600
Spuds weight/pic900kg1500kg2000kg2500kg3900kg4500kg5000kg

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Pictures Display

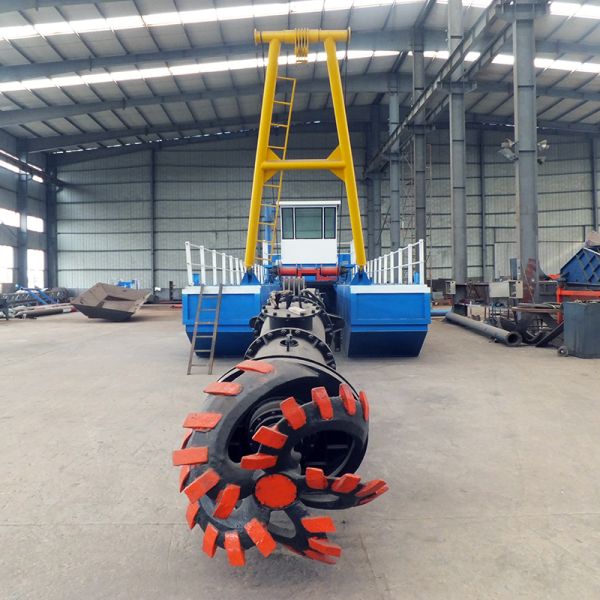

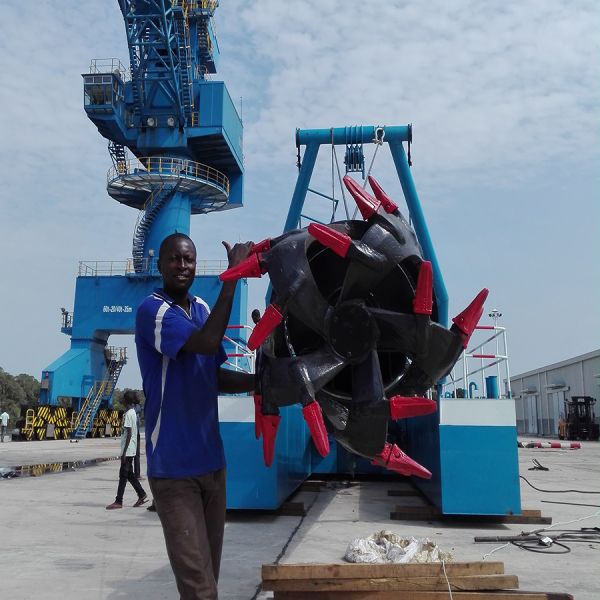

  1. Cutter head
  2. Pump
  3. Engine

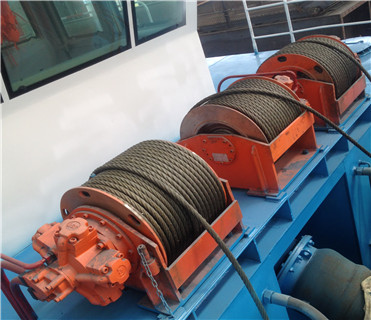

  4. Winches
  5. Other parts

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Marine Engine Cutter Suction Dredger with 10/8 Inch Pump 800 M3/H Water Flow

Company Introdution

  1. mainly produces iron selecting equipment, kinds of dredgers, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, and crusher and so on
  2. We design produce several of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
  3. Our company had established and improves the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
