Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Specifications
Place of Origin :
shandong china
Brand Name :
KeDa
Model Number :
CSD150；CSD200;CSD250;CSD300;CSD400;CSD450
Price :
$168,000/sets
Certification :
CE 9001
MOQ :
1
Delivery Time :
30
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
Cutter Suction Dredger
Power Type :
Diesel, Diesel
Dredging Depth :
10 m
Draught :
0.85m-15m
Dimension(L*W*H) :
12.5*4.6*1.3
Weight :
40 KG
Warranty :
1 year warranty
Usage :
Dredging of Sand
Standard dredging depth :
6-15m
Cutter head :
1 stage
Diameter :
850-30
Pump model :
8/6 inch
Ladder winches :
JC-3000
Swing winch :
JC-3000
Application :
River
Hull Material :
Steel
Width :
4-15m
Colour :
customized
Description

River Sand Vessel china river small sand dredge pump sand dredger for sale

Product Description

1)Reliable hydraulic system with self-protection, high efficiency and low cost.
2)Simple, rapid assembly and dismantling, a good underwater dredging machine.
3)We can produce 4"inch to 20"inch dredgers with max. dredging depth 20m. The dredger can be customized.

4)Has passed ISO9001 & The Certification of the Survey.

5)Adapt submerged arc welding technology, strong stability and beautiful in design.

6) Special marine steel plate, strong & durable.

7) Pump & gear box combined together, reduce the maintenance.


Basic parameter


 KDCSD100 KDCSD150 KDCSD200 KDCSD250 KDCSD300 KDCSD350 KDCSD450
Water Flow(m3/hour) 280 450 800 1200 1800 2500 3500
Length(m) 19 22 26 33 35 39 41
Width(m) 3.5 4 5.3 6.6 6.6 7 8
Height(m) 1 1.25 1.5 1.8 1.8 2 2.5
Max. Dredging Depth(m) 8 10 12 15 15 17 17
Suction Diameter(mm) 150 200 250 300 400 450 650
Discharge Diameter(mm) 100 150 200 250 300 350 450
Total Power(kw) 132 220 336 460 670 895 1166
Cutter Head Diameter(mm) 650 850 950 1200 1200 1500 1700
Discharge Distance(m) 400 500 800 1000 1200 1500 1800


Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head

Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter HeadSmall Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter HeadSmall Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter HeadSmall Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head


Detailed Pictures

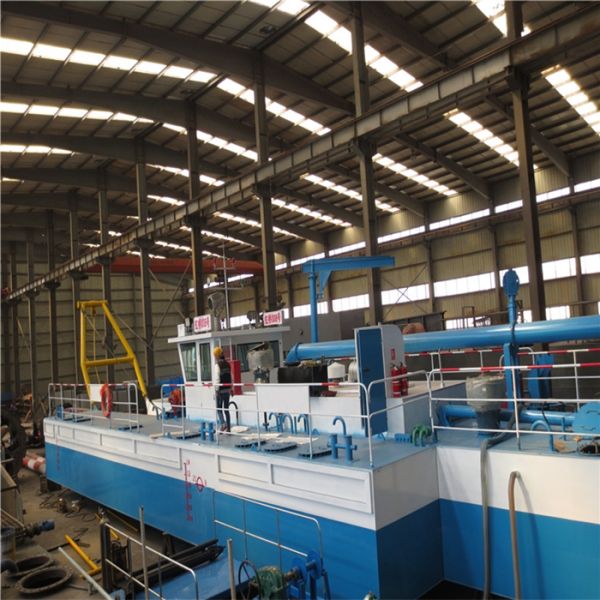

Ship Body Under-building

Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head

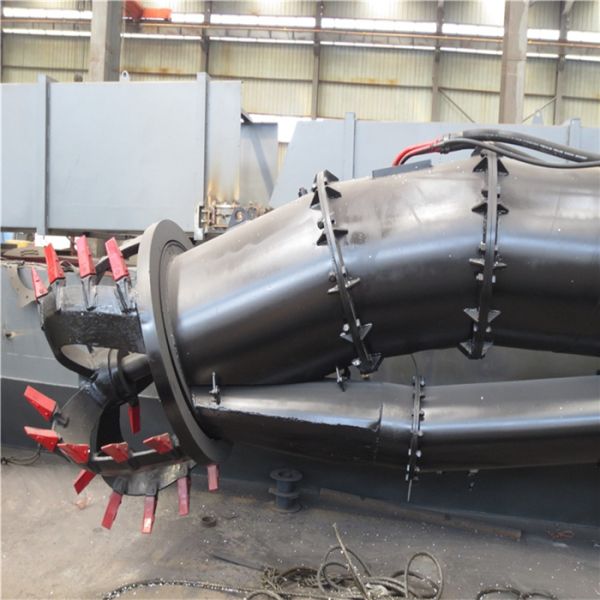

cutter head

Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head



Pumps and Engine


Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head
Packaging & Shipping


Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head


Certifications

Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head

Our Services

1)Dredging project consulting will be provided by our experienced engineers.
2)Dispatching engineers overseas guidance for equipments installation and testing.
3)Training your local first batch workers.
4)Solving the problems during the equipment operation.
5)Providing whole production line equipments and spare parts with the best price.

Small Diesel Cutter Suction River Sand Dredger 10m Depth with 1 Stage Cutter Head

Company Information

We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to gold mining, sand pumping, and desilting with long time exploring and R &D experience.
All of products have been certified by ISO9001 and many of them have been exported to more than fifteen countries and regions such as Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New Guinea, Bangladesh, Sultan, Korea, USA, Russia, India and so on.


FAQ


1.Is our company a direct or indirect producer? — Our company is a direct producer.

2. What's the main product of our company? — Our main product is Cutter Suction Dredger
3. Are our products certified or patented? — Yes, we only provide certified products.
4. Can we offer good after sales service? — Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
