Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Specifications
Brand Name :
KeDa
Place of Origin :
shandong china
MOQ :
1
Price :
$110,000/sets >=1 sets
Payment Terms :
T/T,L/C
Delivery Time :
30
Certification :
CE 9001
Model Number :
CSD150；CSD200;CSD250;CSD300;CSD400;CSD450
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Core Components :
Engine, Gearbox, Pump
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
12 m
Draught :
0.85m-15m
Dimension(L*W*H) :
34.5*7*2M
Weight :
110000 KG
Warranty :
1 Year
Product name :
20 inch Cutter Suction Dredger
Work site :
River Lake Port Coastal Area
Water flow :
5000 M3/h
Discharge distance :
as per customer's request
Diameter discharge pipe :
20 inch/640mm
Diameter suction pipe :
22inch/700mm
After-sales Service Provided :
Engineers available to service machinery overseas, Online Support
Applicable Industries :
Construction works , Energy & Mining
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Condition :
New
Hull Material :
Steel
Width :
4-15m
Colour :
customized
Description
Gold Diamond Mining Fully Hydraulic Cutter Suction Dredger
Diesel-Powered Sand Dredging Boat Equipment Machine
Product Overview

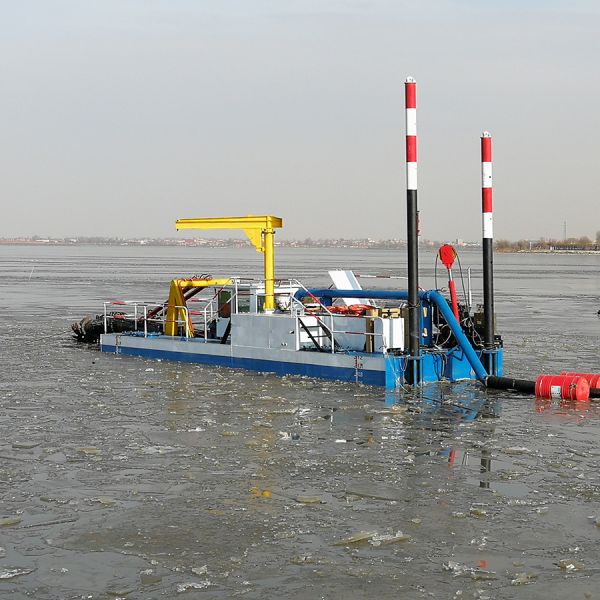

KEDA 20 inch Cutter Suction Dredger - CSD500 is a stationary dismountable vessel equipped with a rotating cutter head designed for dredging rock, clay, silt and sand.
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
Technical Specifications
ITEM DATA
Model CD-CSD500
Workload 5000m3/h
Dredging Depth 16 m Max
Loa(L*W*H) 38*8.5*2.5m
Suction Diametre 700mm
Discharge Diametre 640mm
Cutter Power 300kw
Main Engine Cummins/Weituo
Discharge distance 2500m
Lift 62m
Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.
Model Comparison
MODEL Workload Dredging Depth Lift Suction Diametre Discharge Diametre Discharge distance
csd150 450m3/h 5m 36m 250mm 200mm 2500m
csd200 750m3/h 6m 49m 300mm 260mm 2000m
csd250 1100m3/h 10m 56m 350mm 300mm 2000m
csd300 2200m3/h 12m 57m 530mm 450mm 1500m
csd350 3000m3/h 12m 58m 540mm 510mm 1100m
csd450 4000m3/h 15m 55m 630mm 560mm 700m
csd500 5000m3/h 16m 62m 700mm 640mm 500m
Key Components
1. Dredger Hull
Material:
Ship steel plate
Structure:
Can be dismantled and assembled at working site
Hull quantity:
Two side hulls and one main hull
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
2. Power System
Name:
Diesel Engine
Brand:
World famous CUMMINS brand or Weichai brand as required
Power:
60-2000Kw
Function:
Supply power to the dredger
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
3. Marine Gear Box
Semi-automatic system suitable for optimal dredging operations.
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
4. Sand Pump
Pump Flow:
100-5000m3/h
Sand output:
40-1500m3/h
Material:
High chromium alloy super wearing-resistant
Discharge Distance:
100-2000m
Pump Sealing:
Packing seal
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
5. Hydraulic System
  • Cutter head hydraulic system
  • Spud hydraulic system
  • Winch hydraulic system
  • Hydraulic pump
  • Hydraulic oil tank and pipes
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
6. Cutter Head
Drive type:
Hydraulic drive
Teeth type:
Replaceable alloy teeth
Cutter blade material:
16Mn
Cutter teeth quantity:
Multi teeth
Why Choose Us
Qingzhou KEDA Environment Protection Machinery Co., Ltd
  • More than 10+ years of production experience in dredgers and mineral processing equipment
  • Strong technical service team, can provide customized services
  • Own design team with 21 patents
  • Industry and Trade Integration Enterprise
  • The factory covers an area of over 22,000 square meters
  • 3 production lines - dredger, cleaning boat, gold mining equipment
Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions Industrial River Sand Dredging Machine 20 Inch For Heavy Duty Solutions
