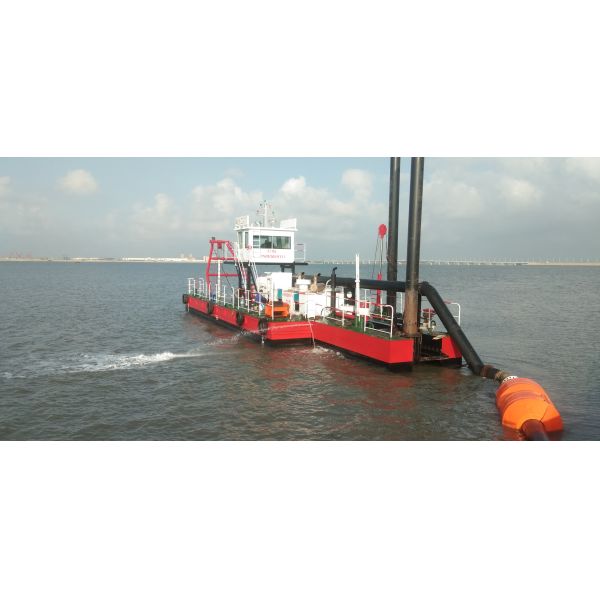

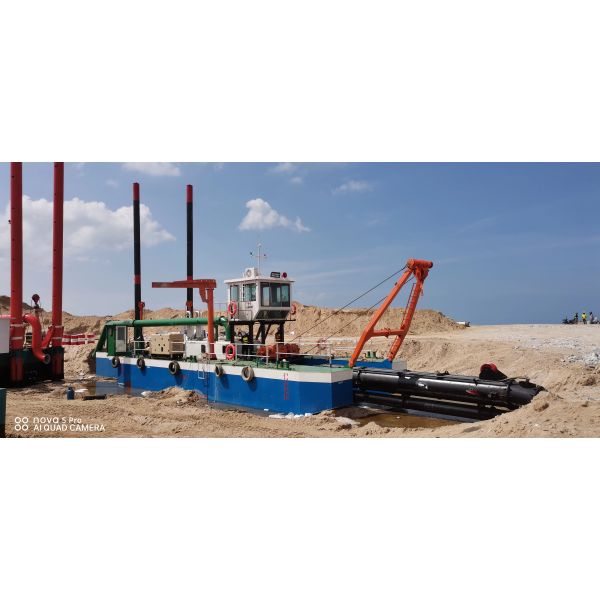

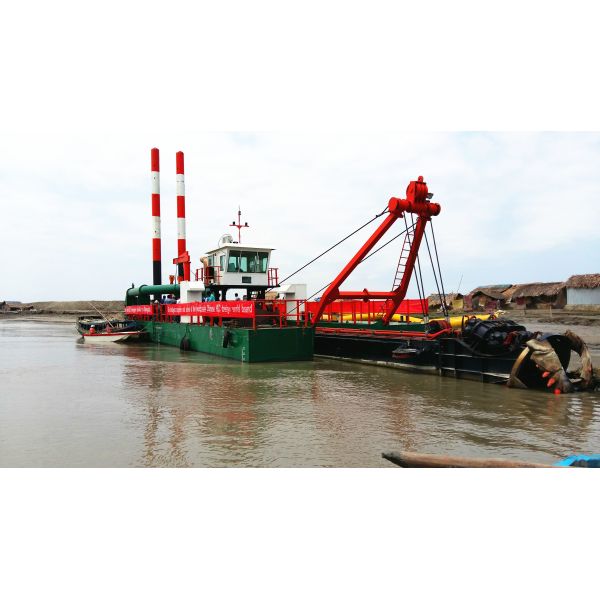

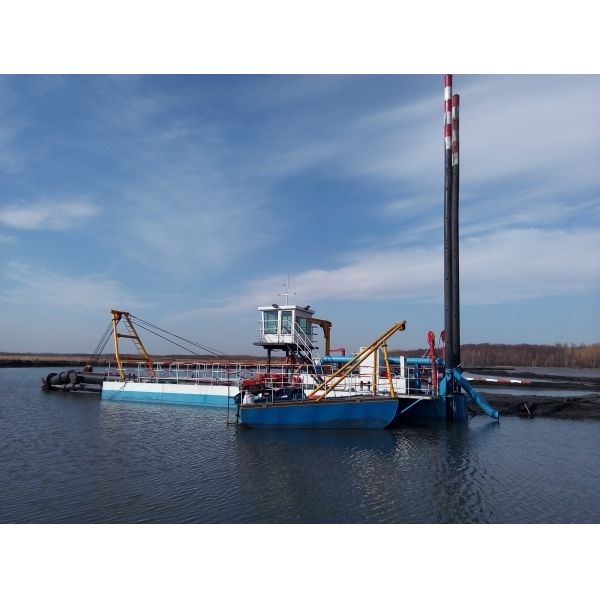

Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Specifications
Place of Origin :
shandong china
Brand Name :
KeDa
Price :
$260,000/sets 1-1 sets
Certification :
CE 9001
MOQ :
1
Model Number :
CSD150；CSD200;CSD250;CSD300;CSD400;CSD450
Delivery Time :
30
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Working Capacity :
800m3/h
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
15 m
Draught :
0.85m-15m
Dimension(L*W*H) :
45*8*2.25m
Weight :
140000 KG
Warranty :
1 Year
Application :
Sand Dredging
Colour :
Customized
Control System :
Hydraulic Control System
Pump model :
24/18Inch
Driven :
Motor
Total Power :
1250kw+295kw
Reamer diameter :
1800mm
Reamer power :
600kw
Draft :
150cm
Discharge distance :
2000m
Hull Material :
Steel
Width :
4-15m
Description
600kw Reamer Power 18inch Hydraulic Cutter Suction Dredger for Sea Port Dredging 800m3/h Capacity 2000m Discharge Distance
Product Overview
Qingzhou Keda Environment Protection Machinery Co.,Ltd is a professional dredger manufacturer with over ten years of experience, providing complete dredging solutions. Our hydraulic cutter suction dredgers are designed for heavy-duty operations with durable, dismountable structures.
Working Principle
The cutter suction dredger utilizes a rotating cutter head to loosen material, which is then pumped through a pipeline ashore or into barges. The powerful cutter swings around the spud-pole while dredging, with a high-pressure sand pump transporting the loosened materials through the suction pipe.
Applications
This high-efficiency dredging equipment is suitable for ports, waterways, rivers, lakes, ponds, lagoons, and sea areas. It can also be used for hydraulic fill operations.
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Technical Specifications
Model Draft Water Flow Dredging Depth Lift Discharge Distance Weight
CSD150 90cm 500m³/h 6m 36m 800m 40000kg
CSD200 100cm 900m³/h 8m 49m 1000m 50000kg
CSD250 110cm 1500m³/h 12m 56m 1200m 65000kg
CSD300 120cm 2500m³/h 15m 57m 1500m 95000kg
CSD350 120cm 4000m³/h 15m 58m 2000m 150000kg
CSD450 150cm 5000m³/h 15m 55m 2000m 190000kg
CSD500 180cm 6000m³/h 16m 62m 2500m 220000kg
CSD600 180cm 7000m³/h 18m 68m 3000m 250000kg
Note: Parameters can be customized according to customer requirements.
Key Components
The cutter suction dredger consists of:
  • Main engine
  • Reamer and reamer frame
  • Left and right traverse pulley block
  • Gantry
  • Suction pipe
  • Operation room
  • Emergency generator set
  • Dredging pump
  • Gearbox and diesel engine
  • Hydraulic system
  • Water seal pump
  • Positioning pile and cylinders
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Customization Options
Host Brand Selection
  • Weichai
  • Yuchai
  • Cummins
  • Caterpillar
Cutter Head Options
  • Standard cutter head
  • Bucket head
  • Auger head
Mud Pump Selection
Customized based on required flow rate and discharge distance.
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Operational Features
Hydraulic System
Fully hydraulic control system for easy operation by a single operator.
Operator Cabin
Equipped with air conditioning and lighting for comfortable working conditions.
Modular Design
Dismountable floating body structure for easy transportation and assembly.
Our Services
Pre-Sales Service
  • Consultation and needs assessment
  • Technical solution proposal
  • Customized design recommendations
After-Sales Service
  • 3D design drawings
  • Quality production
  • Pre-shipment testing
  • Installation and operator training
Additional Dredger Models
  • Cutter Suction Dredger
  • Jet Suction Dredger
  • Bucket Chain Dredger (Gold/Diamond)
  • Sand Pump Dredger
  • Amphibious Dredger
Company Profile
Qingzhou Keda Environment Protection Machinery Co., Ltd is located in Qingzhou City, Shandong Province, China with 22,000m² facility and over 100 staff. Our location provides convenient access to Qingdao Sea Port and major airports.
Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power Hydraulic Cutter Suction Dredger 18inch 800m3/h Capacity 600kw Reamer Power
Our Advantages
  • 10+ years dredger manufacturing experience
  • Strong technical service team for customized solutions
  • In-house design team with 21 patents
  • 22,000m² production facility
  • Three specialized production lines
Project References
