Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$200,000/sets >=1 sets
Certification :
CE 9001
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
Cutter Suction Dredger
Power Type :
Diesel
Dredging Depth :
6.5 m
Draught :
4 inch
Dimension(L*W*H) :
11*3.3*3.1m
Weight :
20 KG
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Engine :
Cummins made in China
Engine power :
194KW
Usage :
Port River Lake Sea
Name :
Amphibious Dredger for Weed Removable & Dirt Excavation
Color :
Customer's Requirement
Application :
cutter suction, digging, grabbing, piling, weeding
Certificate :
ISO9001
Max. dredging depth :
6.5m
Max. discharging distance :
1500m
Applicable Industries :
Retail, Construction works , Energy & Mining
Showroom Location :
None
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Condition :
New
Description
Amphibious Dredger for Weed Removable & Dirt Excavation
Product Description
Brief Introduction

Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:

  1. Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
  2. Self-propulsion with propellers;
  3. Work stable, with spuds and support legs to keep balance;
  4. High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
  5. One person operation. Workers with excavator operation skills can operate easily after a little training;
  6. Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
  7. Lights on dredger are available to make sure constant work for maximum efficiency.
Parameter
No.NameSpecificationRemarks
1Size(L*W*H)11*3.3*3.1m
2Weight20t
3EngineCummins Made In China
Cooling typeTurbocharged and inter-cooled
Power194kw (260hp)
Rotation speed2200r/min
Fuel tank400L
Electric system24V
4Hydraulic SystemRexroth series
Axial piston pump AFor dredge pump and propeller
Max. operating pressure25MPa
5Excavator
Swinging angle180º
Bucket cylinder force80kN
Lifting capacity at max. reach22kN
Lifting capacity with Power Lift at max reach25kn
6Stabilizer
Front stabilizer, max depth5m
Rear tilting stabilizer, max depth6m
7Hull8 compartments, corrosion resistant painting outside and inside, protective skid bars on bottom, slip-safe deck, handrails
8Operation RoomAdjustable chair, movable side-window, air condition, PLC system, signal lights and floodlightsSelf-propulsion, speed of 4 knots
9Dredge Pump
Outlet diameter250mm
Max. dredging depth6.5m
Max. discharging distance1000m
Water flow500m3/h

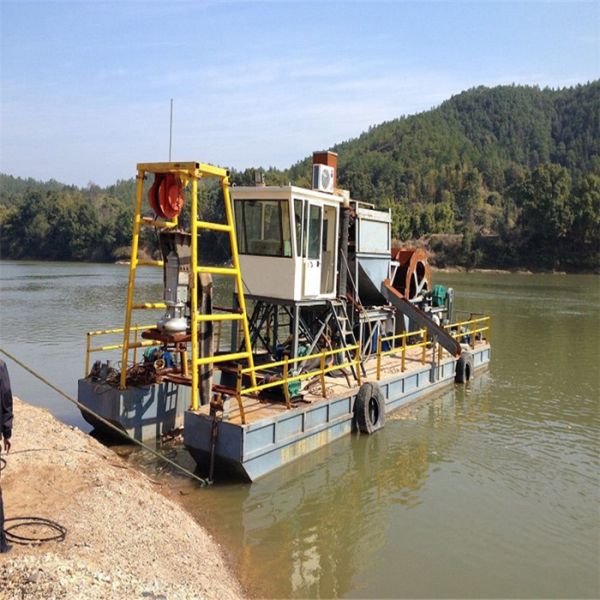

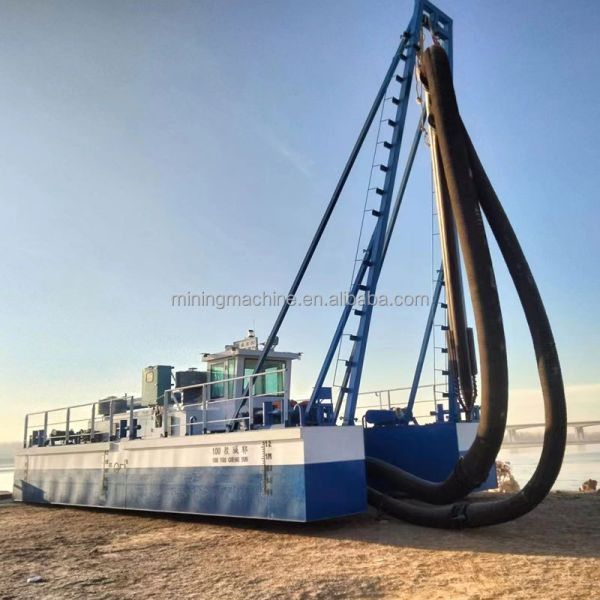

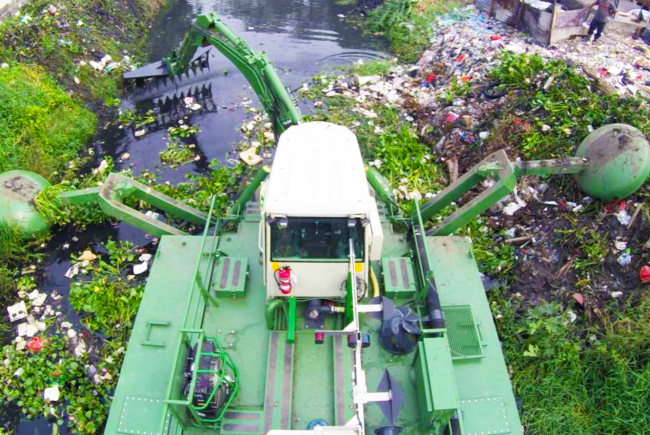

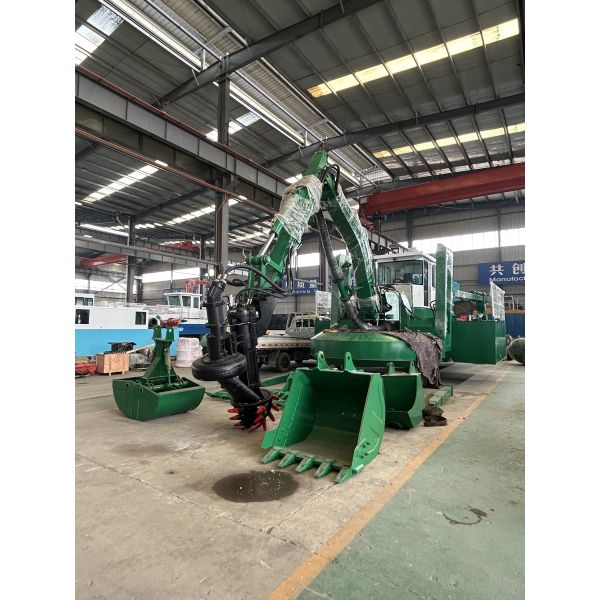

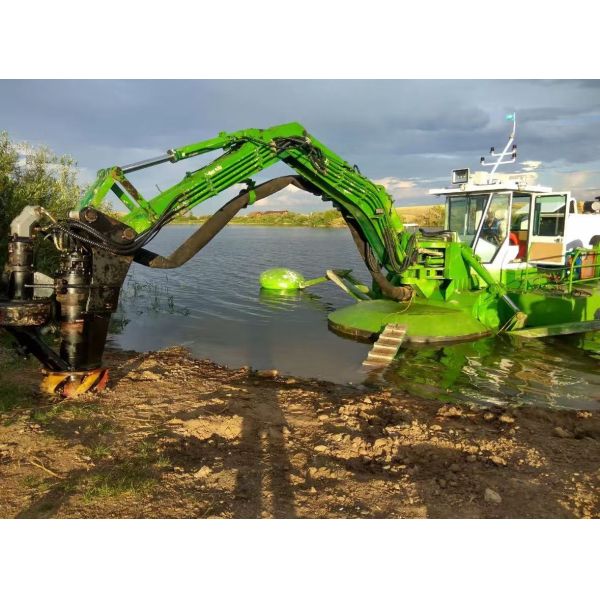

Images in the factory and at the working site

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant HullMultifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

Advantages
  1. Wide applicability. Can be used for cutter suction, digging, grabbing, piling, weeding, barrier cleaning etc. in water area of closed, narrow, shallow, heavily polluted etc..
  2. Strong mobility. No need for crane, can go in and out of the water area easily; Self-propulsion with propellers; stable with spuds and support legs.
  3. High automation. Workers with excavator operation skills can operate easily after a little training.
  4. Good economics. Using of submersible mud pump cutter compound equipment ensures the slurry density high; Comparing with cabin mud pump, the oil consumption is reduced obviously.
Packaging & Shipping

In bulk or as required

Other Related products

Jet Suction Sand Dredger

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

Bucket Chain Sand Dredger

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

Sand Pump Hung Dredger

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

Weed Harvester

Company Information

Multifunctional Amphibious Dredger with Self Propulsion Corrosion Resistant Hull

  1. Qingzhou Keda Mining Machine Co., Ltd. locates in Qingzhou City, Shandong Province, China.
  2. We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to fields of gold mining, sand pumping and desilting with long time exploring and R&D experience.
  3. All our products have been certified by ISO9001 and many of them have been exported to more than fifteen countries and regions such as Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New Guinea, Bangladesh, Sultan, Korea, USA, Russia, India and so on
