Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Price :
$230,000/sets >=1 sets
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
AMPHIBIOUS MULTIPURPOSE DREDGER
Power Type :
Diesel
Dredging Depth :
15 m
Draught :
50 cm, 100cm
Dimension(L*W*H) :
Customized, Customized
Weight :
30 KG, 30t
Warranty :
1 Year, 1 year
Condition :
new
Cutter head :
3 stage
Ladder winch :
JC-3000
Pump model :
8/3 inch
Description

Watermaster dredger sale with competitive price

Product Description

Brief Introduction:

Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:

  1. Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
  2. Self-propulsion with propellers;
  3. Work stable, with spuds and support legs to keep balance;
  4. High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
  5. One person operation. Workers with excavator operation skills can operate easily after a little training;
  6. Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
  7. Lights on dredger are available to make sure constant work for maximum efficiency.

Parameter:

No. Name Specification Remarks
1 Size(L*W*H) 11*3.3*3.1m
2 Weight 20t
3 Engine Cummins Made In China
Cooling type Turbocharged and inter-cooled
Power 194kw (260hp)
Rotation speed 2200r/min
Fuel tank 2000L
Electric system 24V
4 Hydraulic System Rexroth series Made In China
Axial piston pump A For dredge pump and propeller
Max. operating pressure 25MPa
5 Excavator
Swinging angle 180º
Bucket cylinder force 80kn
Lifting capacity at max. reach 22kn
Lifting capacity with Power Lift at max reach 25kn
6 Stabilizer
Front stabilizer, max depth 5m
Rear tilting stabilizer, max depth 6m
7 Hull 8 compartments, corrosion resistant painting outside and inside, protective skid bars on bottom, slip-safe deck, handrails
8 Operation Room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights Self-propulsion, speed of 4 knots

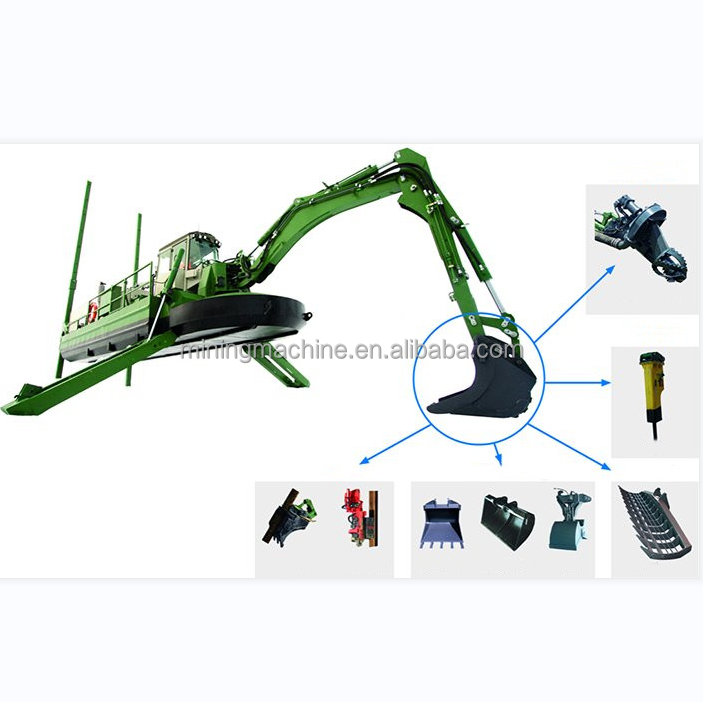

9 Optional Equipment Reamer pump, mud pipe, nozzle, rake, clam shell, vertical pile bucket, steel sheet pile head, maintenance crane, side pontoon
10 Dredge Pump
Outlet diameter 250mm
Max. dredging depth 6.5m
Max. discharging distance 1500m
Water flow 400m3/h

Picture showing

Customized Amphibious Dredger 30t Weight with 3 Stage Cutter HeadCustomized Amphibious Dredger 30t Weight with 3 Stage Cutter HeadCustomized Amphibious Dredger 30t Weight with 3 Stage Cutter Head

Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head

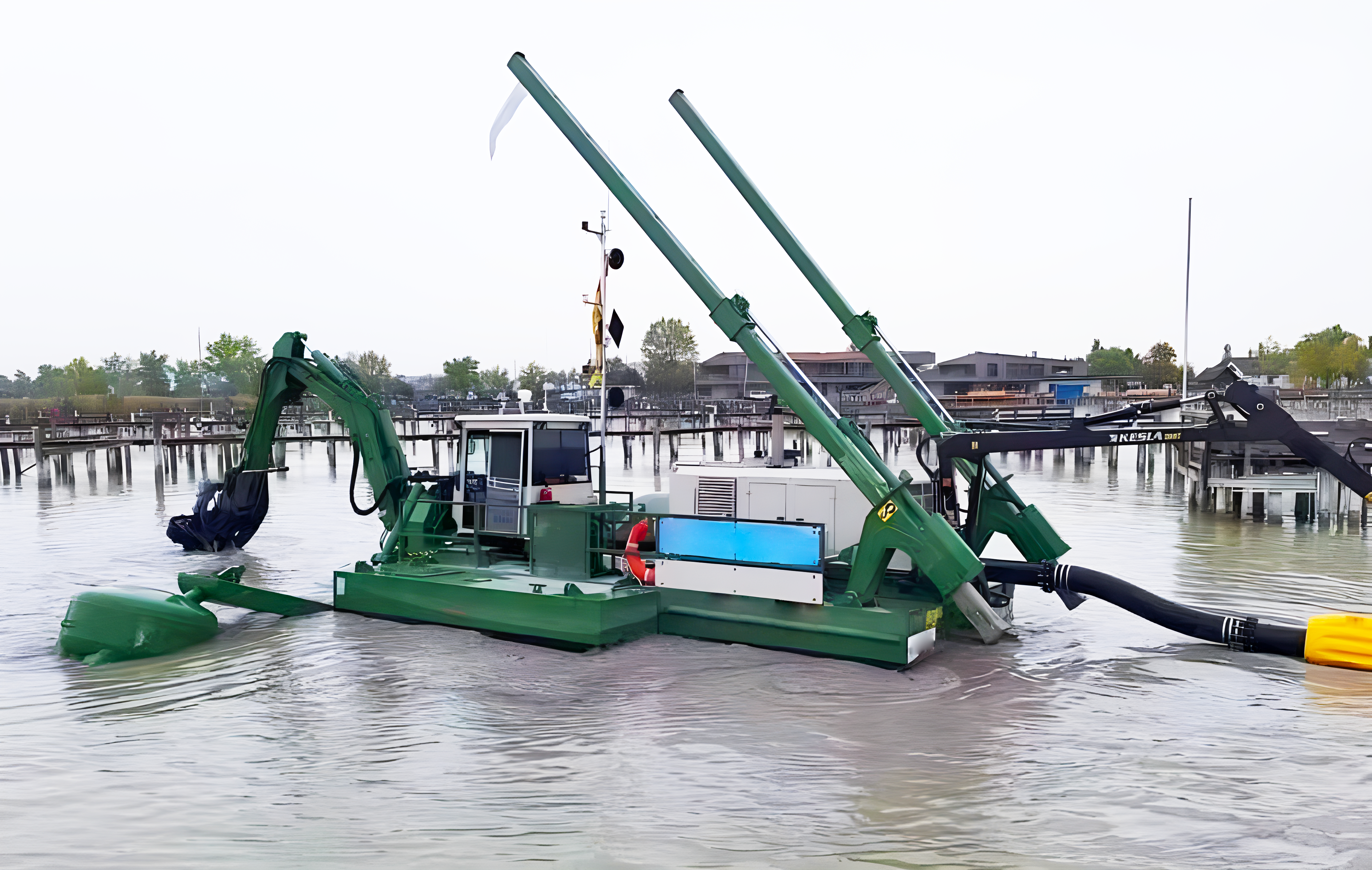

Working

Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head

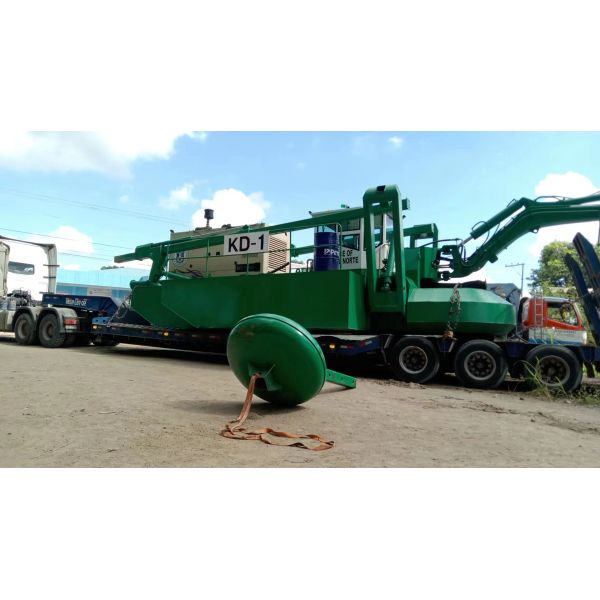

Packing

Customized Amphibious Dredger 30t Weight with 3 Stage Cutter Head

FAQ

1. Is our company a direct or indirect producer?

— Our company is a direct producer.

2. What's the main product of our company?

— Our main product is gold extracting equipment.

3. Are our products certified or patented?

— Yes, we only provide certified products.

4. Can we offer good after sale service?

— Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
