Specifications
Packaging Details :
In containers or as required.
Supply Ability :
200 Set/Sets per Year
Price :
$60,000/sets >=1 sets
DWT :
< 1000t
Year Built :
2022
Name :
Aquatic Transport Barge
Usage :
Transport Water Hyacinth
Dimension :
15.5*5.5*3m
Power :
70kw
Loading Volume :
45m3
Height Discharge :
3m
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
MOQ :
1
Description
Product Description

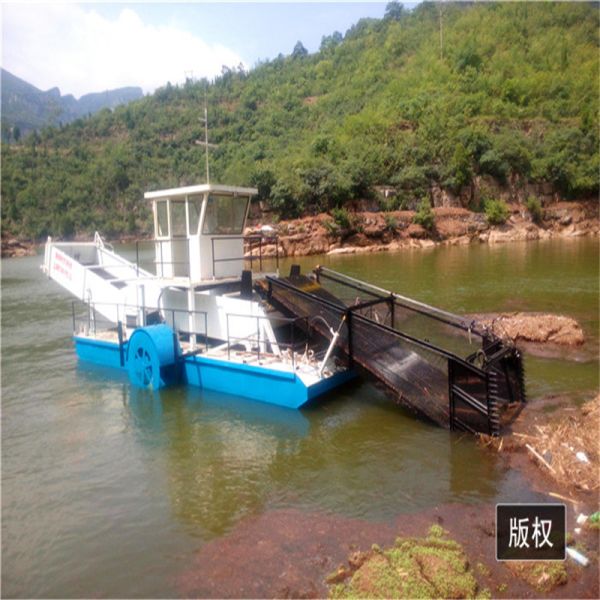

Aquatic transport barge for water hyacinth

The waterweed transport barge is usually used together with the aquatic weed harvester , which is convenient for transporting the harvested waterweed to the shore in time.

2022 Year Built Water Hyacinth Transport Barge with DWT < 1000t and 15.5*5.5*3m Dimension for Aquatic Weed Transport
2022 Year Built Water Hyacinth Transport Barge with DWT < 1000t and 15.5*5.5*3m Dimension for Aquatic Weed Transport
Applications
2022 Year Built Water Hyacinth Transport Barge with DWT < 1000t and 15.5*5.5*3m Dimension for Aquatic Weed Transport
Application:
  • Transporting water hyacinth
  • Transporting Floating Lotus
  • Transporting Water Weed
  • Transporting Duckweed
  • Transporting Water Peanut
  • Transporting Floating Garbage
Manufacturing Technique
Spec.ModelTWB-1TWB-2
Size15.5x5.5x3m17.3x5.5x3.3m
Power70kw70kw
DrivenWheel paddleWheel paddle
Volume45m³60m³
Discharge height3m3m
HullSize9x4x1.25m11x4x1.25m
Material5mm carbon steel bottom, 3mm deck5mm carbon steel bottom, 3mm deck
Conveyor meshSize15x1.8x1.8m16.8x1.8x2m
Mesh width1.8m2m
MaterialStainlessStainless
Sector33
DrivenHydraulic motorHydraulic motor
LiftingCylinderCylinder
Wheel paddleDiameter1.7m1.7m
Width0.8m0.8m
Qty22
Motor22
Diesel engineModelWeichaiWeichai
Power70kw70kw
Speed15001500
CoolingWaterWater
StartElectricalElectrical
Hydraulic pumpTypeGear pumpGear pump
Displacement90ml90ml
Pressure20mpa20mpa
Control valvesTypeValves manualValves manual
Container NO.
Two 40 with one 20Three 40
Why Choose Us
Qingzhou KEDA Environment Protection Machinery Co., Ltd

Our company attaches great importance to development of scientific researching and manufacturing. Main products: Cutter suction dredger series, weed harvester dredger series, gold mining equipment series, sand suction dredger series and sand washing equipment series. Five series and more than one hundred products.

Our company has more than 10 years of experience in mechanical production, and the factory covers an area of 22,000 square meters.
