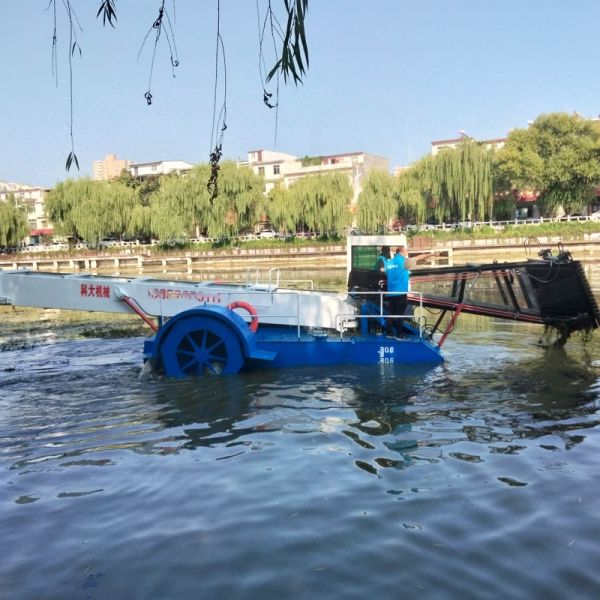

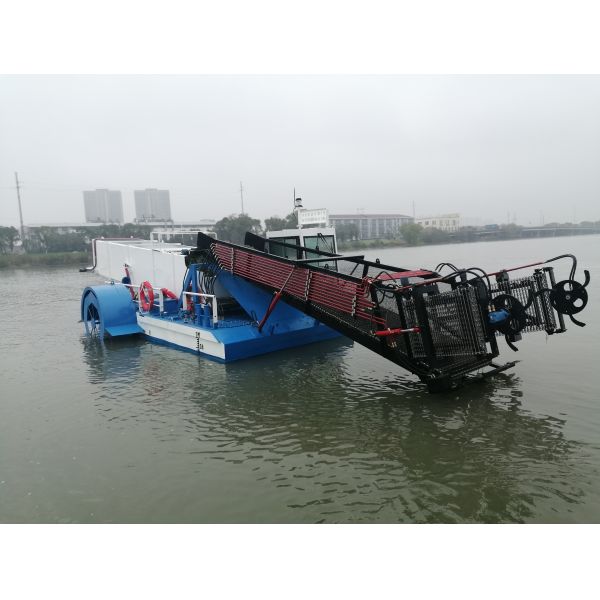

1.The Aquatic Weed Harvester can used in collect,transport,discharge water hyacinth,reed,algae and garbage in the water.
2.The operation system use full automatic centralized control, this can make the equipment sail and go forward and back.
3.The Aquatic weed harvester can be adjust the direction and do the unloading work by one person.this kind of dredger is famous for it simple structure, movement and easy operation.
4.the machine is made is welding steel,the material is CCSB (China Classification Society Standard) ship steel plates,the
equipment pained 4 layers of anti-rust marine paint.
5.the operation system uses remote centralized control, this can make the equipment sail,go forward and back,adjust direction and do the loading work.
Aquatic weed harvester Dredger/Trash Skimmer can be used for collecting aquatic weed,floating trash and doing salvage job in reservoirs, rivers, lakes and coastal water, conveying, draining, stocking and transporting movement. All can be completed by one man via controlling the buttons and switches on the control desk.
| Aquatic Weed Harvester Parameter | |||
| KDWH-100 | KDWH-150 | KDWH-200 | |
| LOA(l*w*h) | 10*4.5*2.7m | 13.5*4.5*2.7m | 16*4.9*4.2m |
| Working Capacity | 200-2000m³/h | 300-3000m³/h | 500-5000m³/h |
| Design Draught | 0.4-0.6m | 0.4-0.6m | 0.5-0.7m |
| Mowing Depth | 0.6-0.8m | 0.8-1m | 0.8-1m |
| Unloading Height | 0-2m | 0-3m | 0-3m |
| Loading Capacity | 4-6m³ | 8-10m³ | 13-26m³ |
| Engine Power | 52kw | 52kw | 70kw |
| Fuel Consumption | 4-6L/H | 4-6L/H | 6-8L/H |
| Speed | 0-15km/h | 0-15km/h | 0-20km/h |
| Propulsion | Paddle Wheel | Paddle Wheel | Paddle Wheel |
| Hydraulic Tank | 360L | 360L | 360L |
| Crew | 1 or 2 | 1 or 2 | 1 or 2 |
| Total Weight | 6.5T | 9T | 14T |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Qingzhou Keda Environment Protection Machinery Co., Ltd.
Located in Qingzhou City, Shandong Province, is a high-tech enterprise with over 30 national patents focusing on the designing, manufacturing, assembly and operation management of environmental protection projects and equipment with more than 11 years′ designing and manufacturing experience.
In the two fields of manufacturing and service providing of waters environmental protection equipment, KEDA is engaged in three industries including the research, development and manufacturing, the equipment assembly and commissioning, and the marketing and after-sales service. KEDA products have been exported to more than 50 countries and areas in Southesat Asia, East Asia, South Asia, South America, Oceania, Africa and East Europe, such as United States, Russia, Indonesia, North Korea, the Philippines, Cambodia, Myanmar, Kyrgyzstanm, Kazakhstan, Brazil, Guyana, Suriname, Congo, Ghana, Nigeria, Zimbabwe, etc.
The products have gained recognition and support from customers both at home and abroad due to KEDA′s leading industry technology, professional manufacturing experience, excellent equipment quality and integrity in management.
KEDA will continue to do the best to create world famous brand in the field of waters environmental protection. Welcome to KEDA for investigation, visit and technique communication.
1. who are we?
We are based in Shandong, China, start from 2011,sell to Africa(30.00%),Domestic Market(20.00%),North America(10.00%),South America(10.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Central America(4.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dredger, Gold Mining Equipment, Water Weed Harvester, Sand Production Equipment
4. why should you buy from us not from other suppliers?
We are specialized in mineral processing equipment,exported to all over the world,had got the patent about gold washing equipment.Combined with research and development, engineering design, producing,installation and commissioning and after sale service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
