20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Price :
$80,000/sets >=1 sets
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Gearbox
Type :
jet suction sand dredger
Power Type :
Diesel
Dredging Depth :
20 m
Draught :
10 inch
Weight :
15 KG
Warranty :
1 Year
Product name :
Diesel Engine Jet Suction Sand Dredger from Keda
Power :
Diesel
Dimension :
As per model
Color :
Customized Colors
Usage :
River/Sea dredging, desilting ,land reclaimation
Application :
Dredging
After-sales Service Provided :
Video technical support
Applicable Industries :
Retail, Construction works , Energy & Mining
Showroom Location :
Philippines, Saudi Arabia, Indonesia, Russia, Argentina, Colombia
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Condition :
New
Description
Product Description
Jet Suction Dredger /Sand Suction Dredger

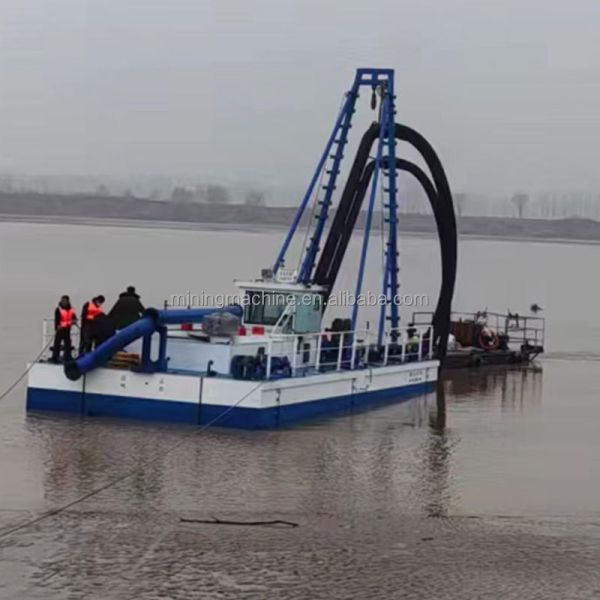

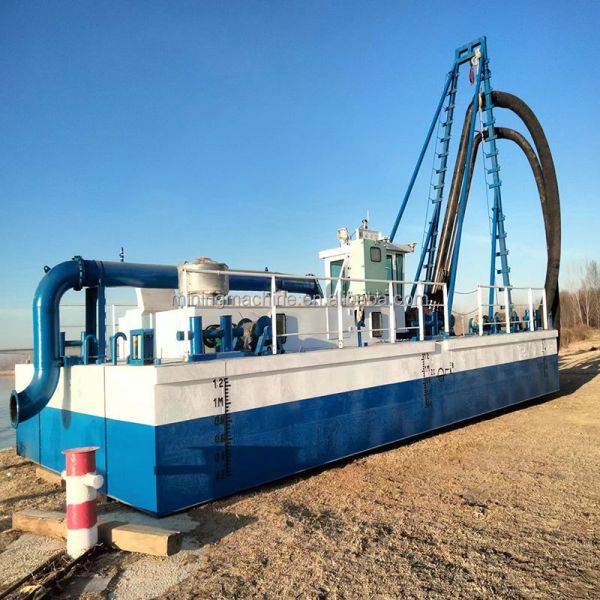

The jet suction dredger of steel construction, the non self-propelled, dismountable type is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger consists of a main pontoon and two side pontoons. The construction makes disassemble quickly and easier to transport by road, rail or sea, also more convenient to replace at site. Engine and dredging pump are on the main pontoon. Side pontoons could be used as oil storage tank, ballast tank and dry cabin. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, switches, indicators, gauges are equipped on the control desk. Only two operators can control the dredger in the operation room. Four layers anticorrosive marine paint provide the zinc anode protection to improve effect of corrosion.

Our Cases
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
Product parameters
ModelHD-JSD100HD-JSD200HD-JSD300HD-JSD400HD-JSD500
LOA27.0m29.0m30.0m33.0m36.0m
Hull size L*B*H23.0*4.0*1.4m25.0*4.6*1.4m26.0*4.6*1.8m32.0*6.4*2.0m32.0*6.4*2.0m
Main EngineWeichaiWeichaiWeichaiWeichaiWeichai
Main engine power75kw88 kw103kw258kw330kw
Dredging pump8’’/6’’10’’/8’’12’’/10’’14’’/12’’16’’/14’’
Jet pump power4kw7.5kw11kw15kw18.5kw
Dredging depth9m11m13m15m16m
Water flowing540 m3900m31200m31650m32200m3
Draught0.6m0.6m1.0m1.1m1.2m
Max. capacity100m3/h180m3/h240m3/h350m3/h440m3/h
Similar Product
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
Cutter Suction Dredger

Main Function: Dredging of the river

20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
Sand Pump Dredger

Main Function:Sand Extraction

20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
Bucket Chain Dredger

Main Fuction: Gold And Diamond Extraction

Why Choose Us
20m Dredging Depth River Cleaning Machine with Powerful Diesel Engine
  1. More than 10 years of production experience in dredgers and mineral processing equipment
  2. Strong technical service team, can provide customized services
  3. Own design team with 21 patents
  4. Industry and Trade Integration Enterprise
  5. The factory covers an area of over 22,000 square meters
  6. 3 production lines-dredger-cleaning boat-gold mining equipment
