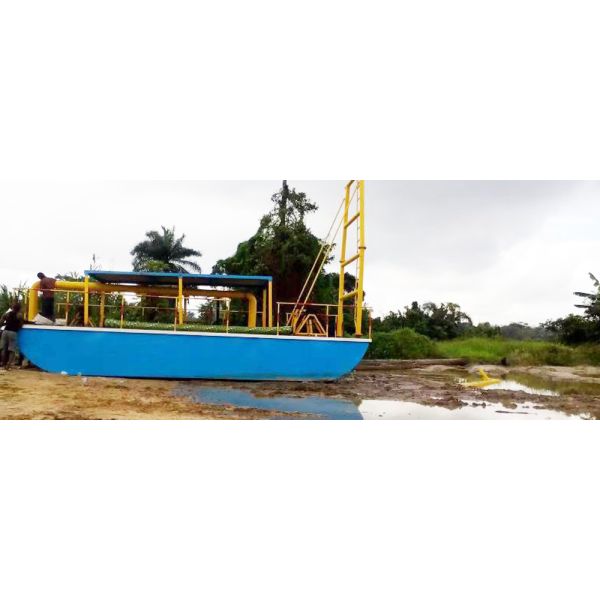

16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$150,000/sets >=1 sets
Certification :
CE 9001
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
Jet Suction Dredger
Power Type :
Diesel
Dredging Depth :
16 m
Draught :
120 cm
Dimension(L*W*H) :
32*6.4*2m
Weight :
50000 KG
Warranty :
1 Year
Name :
Jet Suction Dredger
Application :
Sand Suction
Water flow :
440m3/h
Diameter suction pipe :
16 inch
Diameter discharge pipe :
14 inch
Diesel Engine :
Weichai
Our Service :
Engineers available to service machinery overseas,Online Service
Applicable Industries :
Energy & Mining
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Condition :
New
Description
Product Description

Jet Suction Dredger / Sand Suction Dredger

The jet suction dredger of steel construction, the non self-propelled, dismountable type is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger consists of a main pontoon and two side pontoons. The construction makes disassemble quickly and easier to transport by road, rail or sea, also more convenient to replace at site. Engine and dredging pump are on the main pontoon. Side pontoons could be used as oil storage tank, ballast tank and dry cabin. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, switches, indicators, gauges are equipped on the control desk. Only two operators can control the dredger in the operation room. Four layers anticorrosive marine paint provide the zinc anode protection to improve effect of corrosion.

16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow

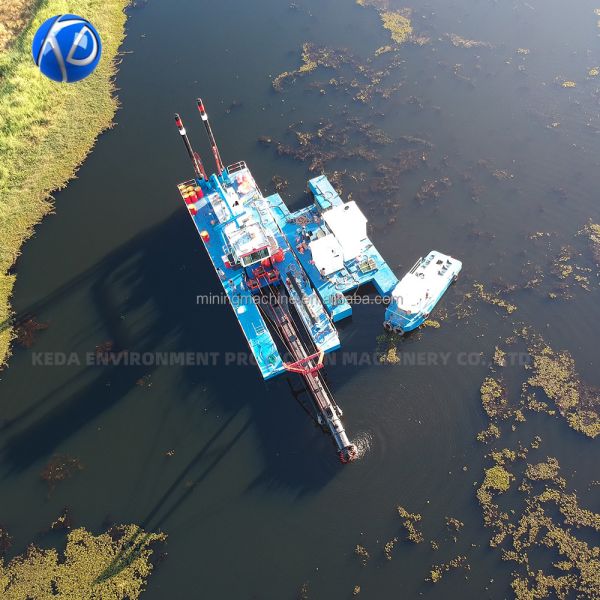

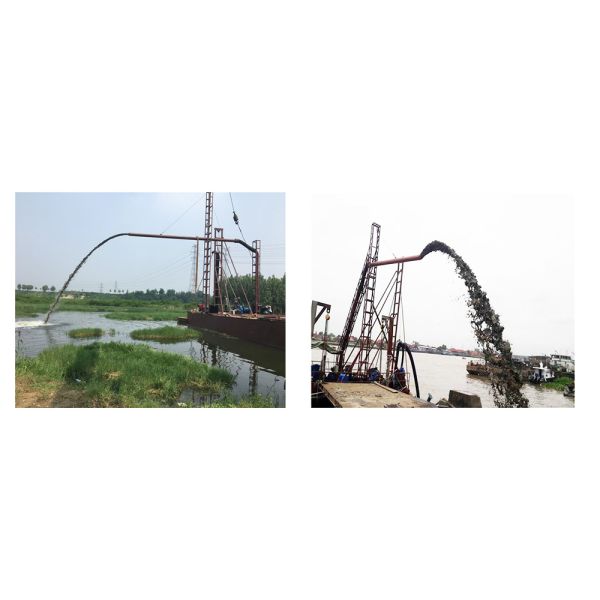

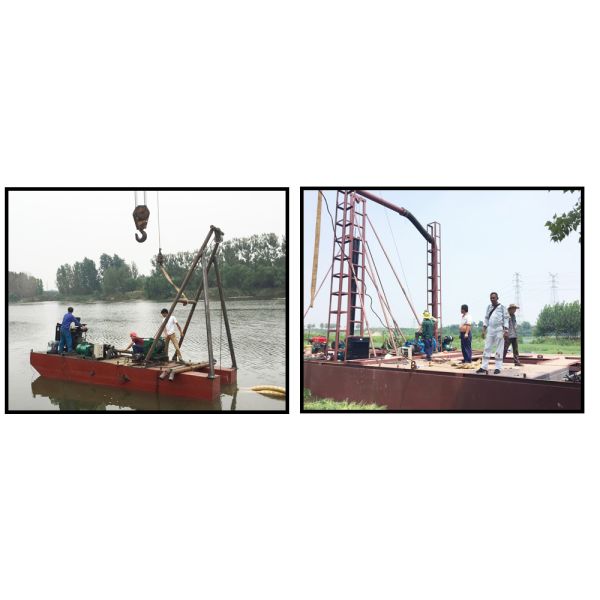

Our Cases
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
Product parameters
Model HD-JSD100 HD-JSD200 HD-JSD300 HD-JSD400 HD-JSD500
LOA 27.0m 29.0m 30.0m 33.0m 36.0m
Hull size L*B*H 23.0*4.0*1.4m 25.0*4.6*1.4m 26.0*4.6*1.8m 32.0*6.4*2.0m 32.0*6.4*2.0m
Main Engine Weichai Weichai Weichai Weichai Weichai
Main engine power 75kw 88 kw 103kw 258kw 330kw
Dredging pump 8’’/6’’ 10’’/8’’ 12’’/10’’ 14’’/12’’ 16’’/14’’
Jet pump power 4kw 7.5kw 11kw 15kw 18.5kw
Dredging depth 9m 11m 13m 15m 16m
Water flowing 540 m3 900m3 1200m3 1650m3 2200m3
Draught 0.6m 0.6m 1.0m 1.1m 1.2m
Max. capacity 100m3/h 180m3/h 240m3/h 350m3/h 440m3/h
Similar Product
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow

Cutter Suction Dredger

Main Function: Dredging of the river

16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow

Sand Pump Dredger

Main Function: Sand Extraction

16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow

Bucket Chain Dredger

Main Fuction: Gold And Diamond Extraction

Why Choose Us
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
  1. More than 10 years of production experience in dredgers and mineral processing equipment
  2. Strong technical service team, can provide customized services
  3. Own design team with 21 patents
  4. Industry and Trade Integration Enterprise
  5. The factory covers an area of over 22,000 square meters
  6. 3 production lines-dredger-cleaning boat-gold mining equipment
16m Dredging Depth Jet Suction Dredger with 440m3/h Water Flow
