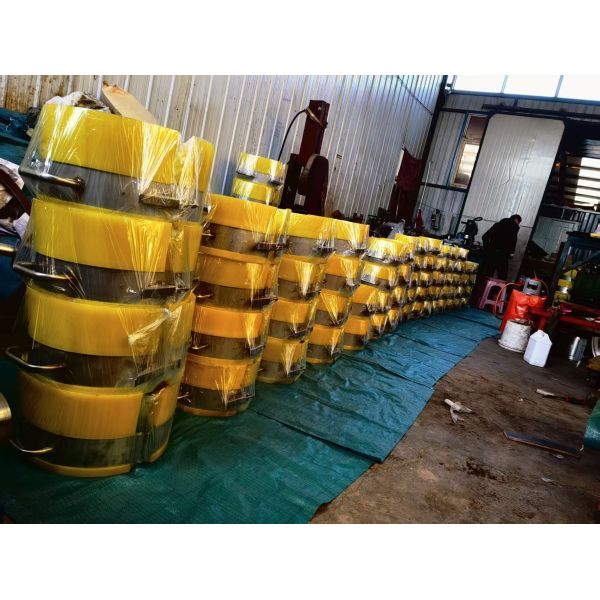

API Drilling Tool Stabbing Guide with High Tensile Strength Steel and Mechanical Seating for 400°F Maximum Temperature
API Drilling Tool Stabbing Guide with High Tensile Strength Steel and Mechanical Seating for 400°F Maximum Temperature
API Drilling Tool Stabbing Guide with High Tensile Strength Steel and Mechanical Seating for 400°F Maximum Temperature
API Drilling Tool Stabbing Guide with High Tensile Strength Steel and Mechanical Seating for 400°F Maximum Temperature
Specifications
Brand Name :
PYZS
Model Number :
13 5/8"
Certification :
ISO
Place of Origin :
Henan china
MOQ :
2
Price :
120
Payment Terms :
TT
Supply Ability :
100/day
Delivery Time :
20days after get deposite
Packaging Details :
wooden box / Pallet
Material :
nylon /polytetrafluoroethylene
Operatingtemperaturerange :
-20°C to 120°C
Tensilestrength :
High tensile strength steel
Pressure :
High
Industry :
Oil production; coalbed gas
Maximum Temperature :
400°F
Lift :
35m
Pump Id :
63.5mm
Seating Type :
Mechanical
Description

API Drilling Tool Puncture Guide Stabbing Guide Connection Type Wedge 513 Pipe Weight 88.2#, Coupling 0D 13.625


The Stabbing guide allows for faster and easier punctures and increases protection against puncture damage to threaded connections.

An automatically adjusting latch secures the Stabbing guide to both new and worn OD boxes, and a spring-loaded lever releases the guide upon triggering for quick removal after puncture.

When puncturing pipe fittings, the geometry of the Stabbing guide ensures perfect connection between the two fittings, allowing them to be screwed together and properly tightened.

When referring to the geometry of the Stabbing guide, there are always two main features: the through-hole (top) and the countersunk hole (bottom).

The countersunk hole slides across and rests on the OD box end (female) of the pipe, while the through-hole guide pin thread (male) aligns with the OD box thread. It is common practice to make both the through-hole and countersunk holes from a robust and durable material with a degree of elasticity. These types of materials vary considerably; care should be taken to select one capable of withstanding all possible operating conditions, including extreme temperatures, drilling fluids, corrosive chemicals, water, impact, fatigue, etc.
