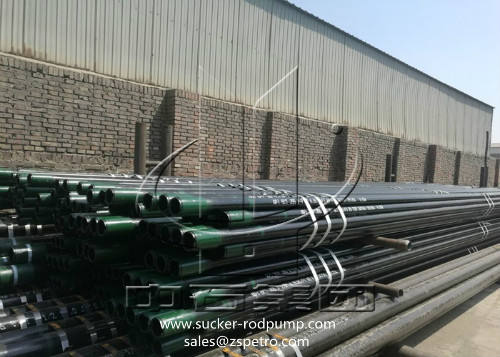

Round Type L80 Alloy Steel Tubing With Couplings For Transporting Oil Or Gas
Round Type L80 Alloy Steel Tubing With Couplings For Transporting Oil Or Gas
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Size OD :
1.9"-4 1/2"
Wall thickness :
3.57 - 16mm
Material :
Alloy steel
Application :
Oil well
Function :
Transporting oil or gas
Section shape :
Round
Description
Round Type L80 Alloy Steel Tubing With Couplings For Transporting Oil Or Gas


Description of oil tubing:

Tubing is the pipe used for transporting crude oil and natural gas from oil or gas layer to the surface
after drilling is complete.It is made to withstand the pressure generated from the extraction process.


Features:

1. Seamless pipe for oil well
2. Hot-rolled alloy steel pipe


Technical specification:

Size

Designation

 Weight Designation Lb/ft Outside Diameter Wall Thickness

Nonupset

T&C

 Ex-upset In. mm In. mm
2 3/8" 4.00~7.35 4.70~7.45 2.375 60.33 0.167~0.336 4.24~8.53
2 7/8" 6.40~11.50 6.50~9.45 2.875 73.03 0.217~0.440 5.51~11.18
3 1/2" 7.70~17.00 9.30~12.95 3.5 88.9 0.216~0.530 5.49~13.46
4" 9.50~22.20 11 4 101.6 0.226~0.610 5.74~15.49
4 1/2" 12.60~26.10 12.75 4.5 114.3 0.271~0.630 6.88~16.00



Mechanical properties:

Grade Yield Strength Tensile Strenght Hardness Allowable
Min Max Min Max Max Hardness
Psi Mpa Psi Mpa Psi Mpa HRC BHN Variation
J55 55,000 379 80,000 552 75,000 517 - - -
K55 55,000 379 88,000 552 95,000 655 - - -
N80 80,000 552 110,000 758 100,000 689 - - -
N80-1 80,000 552 95,000 655 95,000 655 23 241 -
C90 90,000 621 105,000 724 100,000 689 25.4 255 3
C95 95,000 655 110,000 758 105,000 724 - - -
T95 95,000 655 110,000 758 105,000 724 25.4 255 3
P110 110,000 758 140,000 965 125,000 862 - - -



Round Type L80 Alloy Steel Tubing With Couplings For Transporting Oil Or Gas
