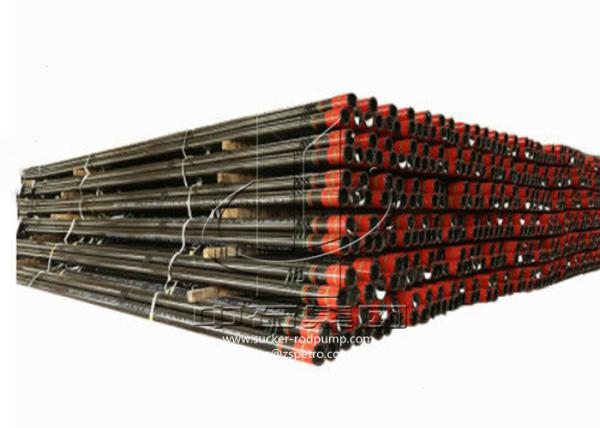

Oilfield Tubing Pipe Length R2 Hot Rolled Processing Wall Thickness 2.87-16mm
Oilfield Tubing Pipe Length R2 Hot Rolled Processing Wall Thickness 2.87-16mm
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Steel grade :
K55 J55 N80 L80 P110 P11013Cr
Structure :
Seamless
Processing :
Hot rolled
Wall thickness :
2.87-16mm
Length :
R2
Application :
Oil industry
Description

EUE And NUE Oilfield Tubing Pipe, Seamless Steel Pipe With API Certificate

Tubing pipe description:

1.The function of oil tubing is transporting oil and gas to ground surface.

2. API 5CT certified oil pipe

Features:

1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”

Technical specification:

Standard API 5CT/ ISO11960
Grade Group.1 H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3,
N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3
Group.2

M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1,

C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3
Group.3 P110/PSL.1, P110/PSL.2, P110/PSL.3,
Group.4 Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
OD Tubing 1.66 inch to 4 1/2 inch or 42.16mm to 114.3mm
Casing 4 1/2 inch to 20 inch or 114.3mm to 508mm
Wall Thickness According to API 5CT Standard
Length Tubing R1 (6.10m to 7.32m), R2 (8.53m to 9.75m), R3 (11.58m to 12.80m)
Casing R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m)
Type Seamless
End-Finish Tubing P, I, N, U
Casing P, S, B, L

Mechanical properties:

Standard Grade

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)

 Hardness
API SPEC 5CT J55 ≥517 379~552 0.5
K55 ≥655 379~552 0.5
N80 ≥689 552~758 0.5
L80 ≥655 552~655 0.5 ≤241HB
P110 ≥862 758~965 0.5

Oilfield Tubing Pipe Length R2 Hot Rolled Processing Wall Thickness 2.87-16mm
