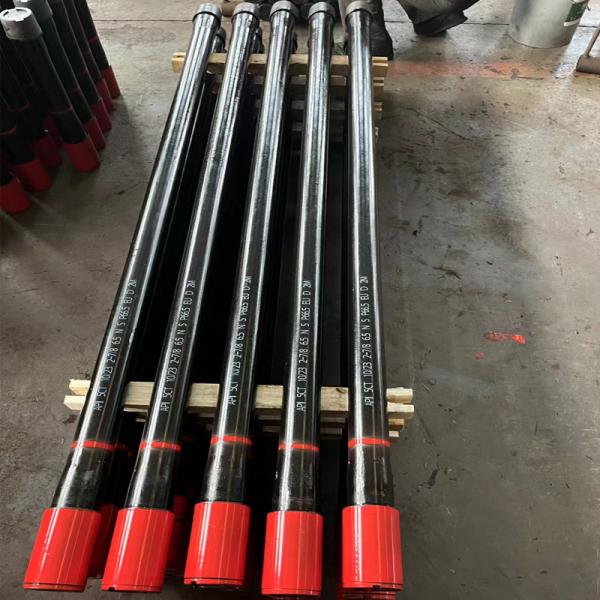

API 5CT J55 Pup Joint For OCTG Adjust Depth Of Downhole Tools
API 5CT J55 Pup Joint For OCTG Adjust Depth Of Downhole Tools
Specifications
Brand Name :
zhongshi
Model Number :
pup joint
Certification :
API 5CT ,ISO ,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2 weeks
Packaging Details :
exported packing
Material :
alloy steel,J55 K55 N80 L80 P110
Product name :
API 5ct casing and tubing pup joint
Standard :
API, ISO,QHSE
Thread :
EUE , NUE
Thickness :
2.87-30mm,4.24--20.62mm
Size :
2-3/8-----3-1/2
Description



Product Description:
Pup Joints:-
DIC is an Exporter of Pup Joints. These are used to adjust the depth of downhole tools. All our pup joints are manufactured as per API 5CT requirements. Due to their shorter length, they are typically easier to handle. All hard banding and coating options are available as per required. Premium Pup Joints are also available with premium connections in API or exotic alloy grades.
Technical Specifications:-
Standard: API 5CT 10th Edition
Specification: From 0.75” to 20”
Grade: H40, J55, K55, N80, L80, C90, T95, P110, C110, Q125
Connection: EU, NU, SC, LC, BC, and premium thread, Pin * Pin, Box*Pin.


Technical Parameter:

Diameters: 1.9" through 4.5" nominal O.D.
Weights: Standard or Heavy Wall
Lengths: 2, 3, 4, 6, 8, 10, 12 ft. Standard
(Other lengths available upon request)
Grades: J-55, N-80, N-80 Q & T, L-80, P-110
Connections: EUE, NUE, Buttress

Size

Type of Thread

O.D*L (mm)

Weight(kg)
2-3/8" NUE 73.02*107.95 1.28
2-3/8" EUE 77.80*132.82 1.55
2-7/8" NUE 88.90*130.18 2.34
2-7/8" EUE 93.17*133.35 2.40
3-1/2" NUE 107.95*142.88 3.71
3-1/2" EUE 114.30*146.05 4.10
4" NUE 120.65*146.05 4.35
4" EUE 127.00*152.40 4.82
4-1/2" NUE 132.08*155.58 4.89
4-1/2" EUE 141.30*158.75 6.05

API 5CT J55 Pup Joint For OCTG Adjust Depth Of Downhole Tools

API 5CT J55 Pup Joint For OCTG Adjust Depth Of Downhole Tools
