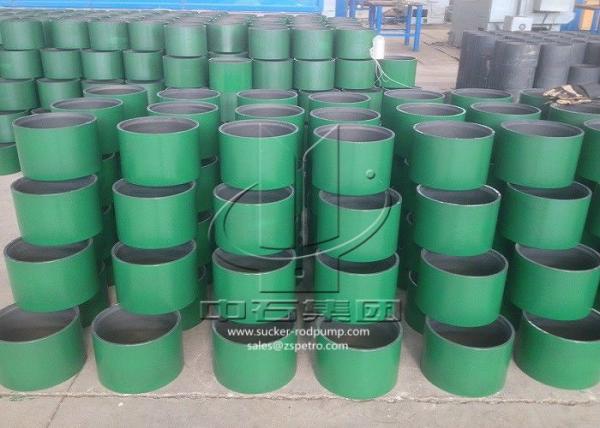

API 5CT Standard Sucker Rod Coupling Thickness 2.87-30mm 4.24-20.62mm
API 5CT Standard Sucker Rod Coupling Thickness 2.87-30mm 4.24-20.62mm
API 5CT Standard Sucker Rod Coupling Thickness 2.87-30mm 4.24-20.62mm
API 5CT Standard Sucker Rod Coupling Thickness 2.87-30mm 4.24-20.62mm
Specifications
Brand Name :
zhongshi
Model Number :
API coupling
Certification :
API 5CT
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
2 weeks
Packaging Details :
exported packing
Material :
J55 K55 N80 L80 P110
Product name :
API 5ct coupling
Standard :
API
Size :
Customized Size,2-3/8------4-1/2
Thickness :
2.87-30mm,4.24--20.62mm
Length :
API Standard,as per client's request
Description

API 5CT Tubing and Casing Pup Joint 8Ft BTC LTC EUE NUE 2-3/8 Coupling

Product Description:

The API external-upset-end (EUE) tubing connection is widely used because it is good, serviceable connection in most wells. The EUE joint has a designed joint strength in tension and pressure strenght greater than that of the pipe body and, therefore, is considered a 100% joint efficient connection.


Designed in accordance with API 5CT/5B and are made of good seamless steel. EUE petroleum tubing coupling cover the outer diameter from 77.80mm to 141.30mm, that is bigger than the outer diameter of the non upset threaded end product.

Features:

1. Grade:J55, K55, N80-1, N80-Q, L80, C90, P110

2. We also supply permium thread products by customer's request

3. Size: tubing coupling from 1.9" to 4-1/2",Casing coupling fro4-1/2"to 13-3/8"

4. Type: NU, EU(tubing coupling), STC,LC,BTC(casing coupling).

5. Surface treatment: Whole phosphating, or inside phosphating and outside coating

6. Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Payment Term: L/C, T/T

Technical Specifications:

Size Type of Thread O.D*L (mm) Weight(kg)
2-3/8" NUE 73.02*107.95 1.28
2-3/8" EUE 77.80*132.82 1.55
2-7/8" NUE 88.90*130.18 2.34
2-7/8" EUE 93.17*133.35 2.40
3-1/2" NUE 107.95*142.88 3.71
3-1/2" EUE 114.30*146.05 4.10
4" NUE 120.65*146.05 4.35
4" EUE 127.00*152.40 4.82
4-1/2" NUE 132.08*155.58 4.89
4-1/2" EUE 141.30*158.75 6.05
