Specifications
Model Number :
01
Payment Terms :
T/T, L/C, D/A, D/P
Warranty :
3 Years
Container :
20 feet container
Price :
As Drawing
Export port :
Tianjin port
Supply Ability :
10sets/month
Raw material :
Galvanized steel
Brand Name :
IRONSTAR
Place of Origin :
CHINA
Packaging Details :
Tarpaulins and wooden cases
MOQ :
1
Delivery Time :
30-50days
Working days :
40 working days
Certification :
CE
Description

High Speed 50-70m/min 30×30mm Ceiling Angle Bead Roll Forming Machine High Quality Galvanized Steel Corner Angle Bead Making Machine Production Line

Diameter of C channel roll forming machine

NO Type Specification
1 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 0.3-0.6 mm
2 Decoiler Operation Manual
Weight apacity 3 Tons
3 Main body Roller station 12 rows
Diameter of shaft 55 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 5.5*0.8*1 m
Machine weight About 1.8 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 30-50 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

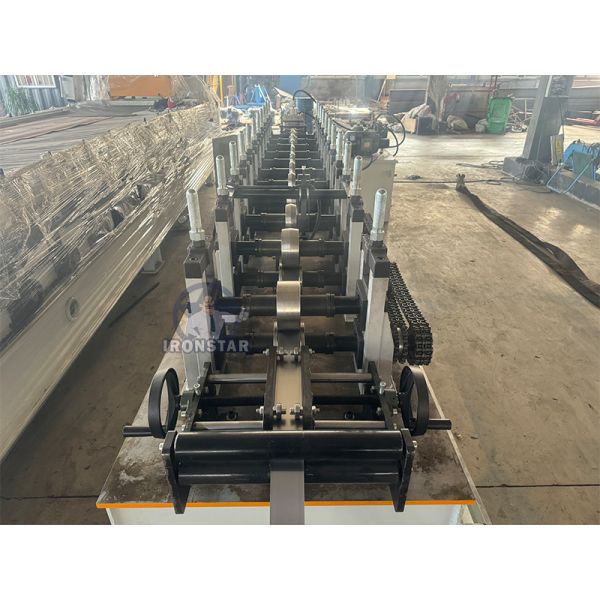

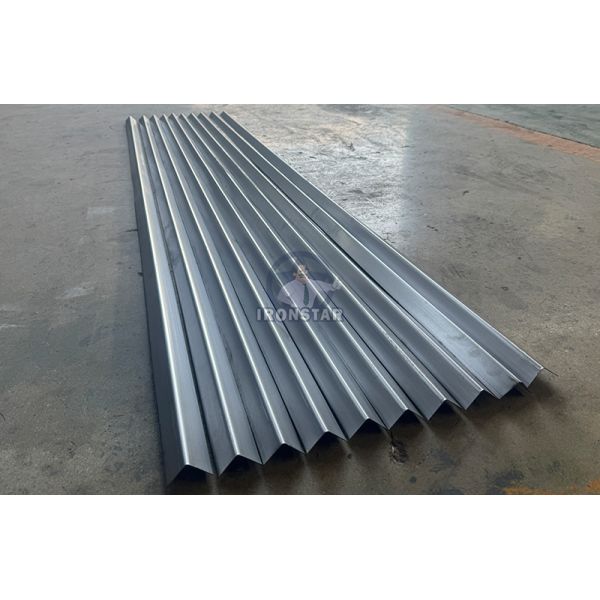

Product and machine show
