Specifications
Model Number :
Customized
MOQ :
1 set
Delivery Time :
30-50 days
Working days :
40 working days
Payment Terms :
T/T, L/C, D/A, D/P
Warranty :
3 years
Container :
20 feet container
Certification :
CE
Price :
As Drawing
Export port :
Tianjin port
Supply Ability :
10 Sets/Month
Raw material :
Galvanized steel
Place of Origin :
China
Brand Name :
IRONSTAR
Packaging Details :
Tarpaulins and wooden cases
Description

Customized High Speed Ceiling And Drywall 0.3-0.6mm Metal Sheet European Omega Furring Channel Roll Forming Machine

Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc

Work flow of Omega profile roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Diameter of Omega profile roll forming machine

NO

Type

 Specification

1

 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

 Decoiler Operation Manual
Weight apacity 3 Tons

3

 Main body Roller station 10 rows
Diameter of shaft 55 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 4.2*0.8*1 m
Machine weight About 1.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 30-50 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Feeder decoiler

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

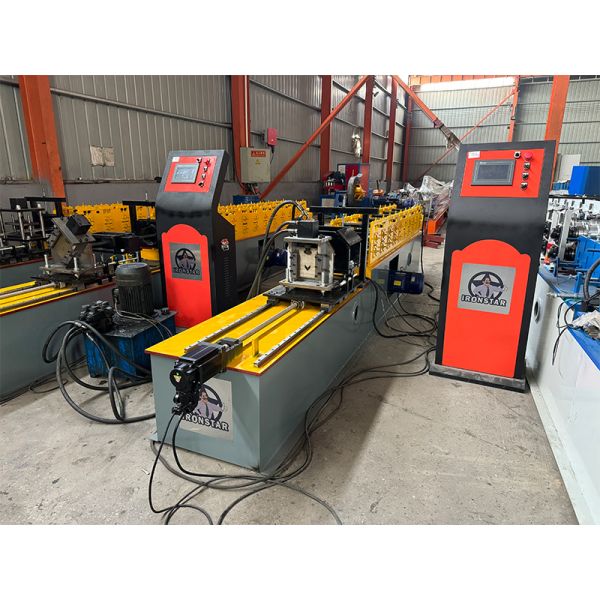

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”
“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

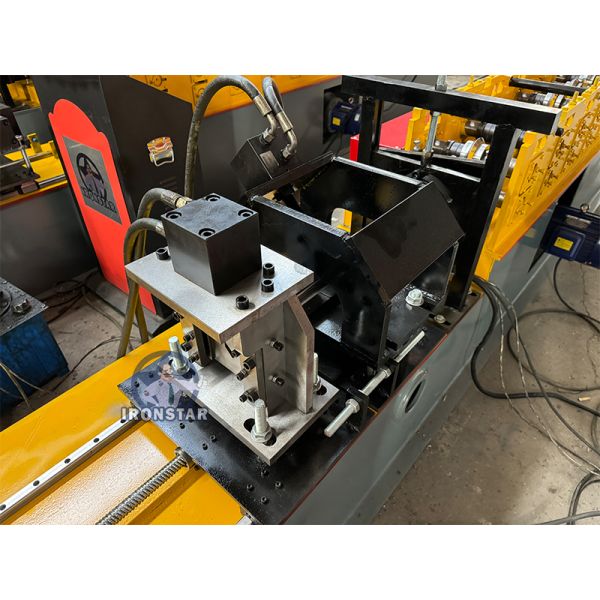

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Feeding table

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”
“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Certificate CE & ISO9001

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

We sell country

“Custom 20×20mm Metal Angle Bead Roll Forming Machine For Egypt Gypsum Board Factory Corner Bead Equipment Continuous Punching 20×20mm Corner Bead Roll Forming Machine Egypt Galvanized ”

Omega profiles, also known as omega channels or omega furring channels, have various applications across different industries. Here are some common applications of omega profiles:

Drywall and Ceiling Systems: Omega profiles are widely used in drywall and ceiling systems for framing and supporting gypsum boards or plasterboards. They provide structural support and help create straight and level surfaces for the installation of wall partitions and suspended ceilings.

Cladding and Façade Systems: Omega profiles are utilized in cladding and façade systems to create a framework for attaching exterior cladding materials, such as metal panels, fiber cement boards, or insulated panels. They provide stability, support, and a secure fastening mechanism for the cladding materials.

Roofing Systems: Omega profiles are employed in roofing systems, particularly for attaching and supporting roof panels or sheets. They help create a robust framework for roof installations, offering structural strength, load-bearing capacity, and resistance against wind uplift.

Shelving and Storage Systems: Omega profiles are used in shelving and storage systems, such as warehouse racking, retail displays, and industrial storage units. They serve as horizontal supports or beams to hold shelves, racks, and other storage components.

Soundproofing and Acoustic Systems: Omega profiles are utilized in soundproofing and acoustic systems to create a framework for installing sound insulation materials, such as mineral wool or acoustic panels. They help reduce noise transmission and improve sound insulation in buildings and spaces.

Suspended Ceiling Grids: Omega profiles are an integral part of suspended ceiling grids. They form the main framework for supporting ceiling tiles, light fixtures, and other components in commercial buildings, offices, schools, and healthcare facilities.

Partition Walls: Omega profiles are used in the construction of partition walls, providing a sturdy framework for dividing interior spaces in residential, commercial, and industrial buildings. They allow for the installation of wall panels, doors, and other elements.

HVAC Ductwork: Omega profiles are employed in HVAC (Heating, Ventilation, and Air Conditioning) systems as supports for ductwork, facilitating the efficient distribution of conditioned air throughout a building.

Overall, omega profiles are versatile components used in construction, interior systems, and various architectural applications. They offer structural support, stability, and flexibility in creating frameworks for different building elements and systems.

Omega profile roll forming machines are manufactured and sold by various suppliers and manufacturers worldwide. These machines are in demand across different countries where construction and building industries are active.

China: China is a major player in the manufacturing and export of roll forming machines, including omega profile roll forming machines. Chinese manufacturers supply these machines to both domestic and international markets.

Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
