27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
Specifications
Brand Name :
WSFIVIN
Model Number :
175EML
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Supply Ability :
10000PCS/DAY
Product Name :
27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support
Key Words :
Diamond Mesh Lath
Raw Material :
Galvanized Sheet
Usage :
Plastering and Stucco Reinforcement
Package :
500pcs/pallet
Standard :
ISO9001,ASTM C847,ANSI/NAAMM-MBG531
Description

27x96in Diamond Mesh Lath With 0.019in Thickness For Ceiling Support

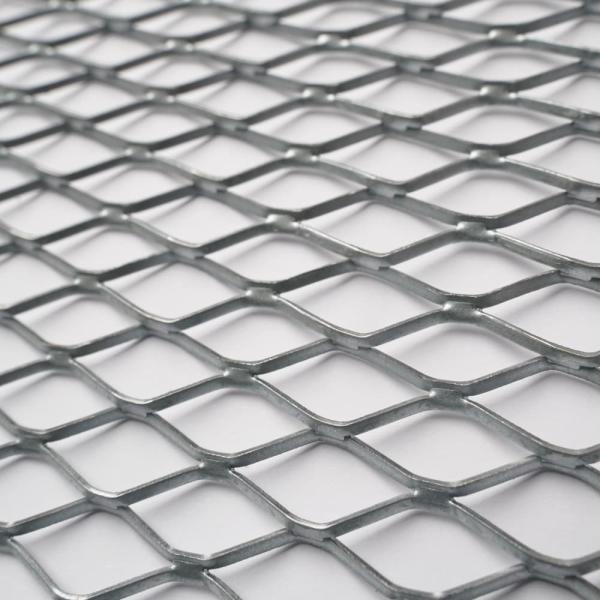

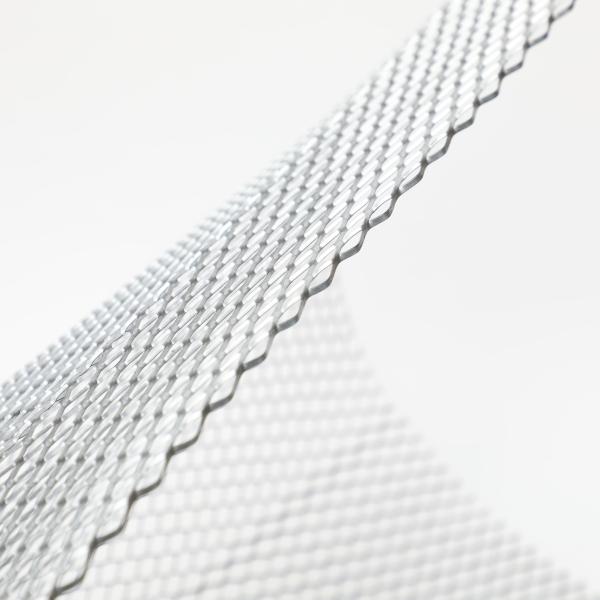

Designed for overhead structural integrity, the diamond mesh lath in 27"x96" panels with 0.019" steel thickness provides unmatched ceiling support while preventing plaster cracking through its three-dimensional reinforcement. The optimized open-area pattern delivers superior mechanical keying for plaster adhesion, distributing weight loads evenly across drop ceilings and soffits. Thicker 0.019-gauge strands outperform traditional lath in torsion resistance - accommodating HVAC components and lighting fixtures without sagging, while standardized dimensions enable fast modifications using standard snips.

Building contractors and drywall specialists rely on this ICC-ES approved lath for suspended ceiling systems, fire-resistant assemblies (ASTM E119), and retrofitting projects throughout North American commercial spaces. Distributors benefit from pre-palletized shipments consolidating ±400 panels per load, while installation crews gain 40% faster mounting through pre-punched attachment points that eliminate drill bits. Contact our technical team for custom bending services on complex vaulted ceilings or seamless integration with acoustic panels - ensuring structural compliance meets aesthetic demands.

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
