Specifications
Brand Name :
HCGG
Model Number :
PSS001
Certification :
CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001
Place of Origin :
Henan,China
MOQ :
200 square meters
Price :
USD40-85 Square Meter/Negotiable
Payment Terms :
L/C,T/T,Western Union,Alibaba.pay
Supply Ability :
50000 Tons/year
Delivery Time :
20-40days
Main Structurel Material :
Q355B/ASTM A572 Gr.50/EN S355/JIS SM490
Secondary Structurel Material :
Q235B / ASTM A36/ EN S235JR / JIS SS400
Other Material :
Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570
Customization :
Style,size,Color,Material
Project Solution Capability :
CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply
After-sale Service :
Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support
Column and Beam :
Welded H-section/Hot-rolled H-beam/Box column
Purlin :
C.Z Shape Steel Channel
Roof and Wall panel :
EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized/
Window :
Aluminum alloy / PVC /Industrial louver window
Door :
Sliding/Rolling shutter/Hinged steel/Customized steel door
Surface treatment :
Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating
Service Life :
20-50 Years
Life Span :
More Than 50 Years
Description
Custom-designed Industrial Production Prefabricated Steel Structure Workshops
Prefabricated steel structure workshops are warehouse buildings where steel columns, beams, purlins, supports, and enclosure panels are precisely fabricated, rust-free, and corrosion-resistant in a factory according to standard/customized drawings, then transported to the site for rapid assembly with bolts. This avoids extensive on-site welding and wet work.

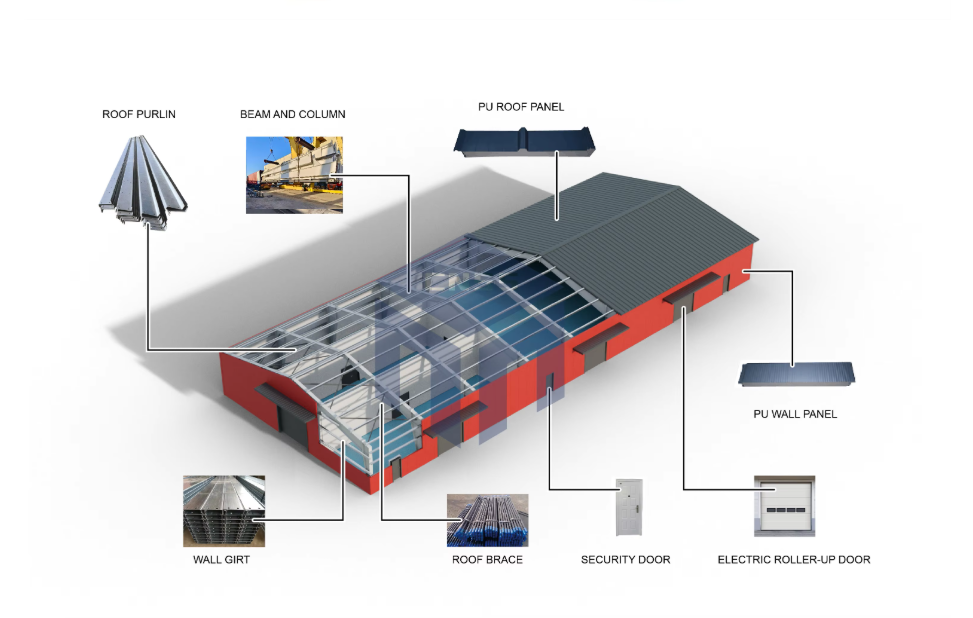

Main Structure Components
  • Primary Framework: H-beams/box columns, portal frames/truss beams
  • Materials: Q235B/Q355B steel
  • Span Capabilities: Common single spans: 24–36m, with large spans exceeding 60m for column-free spaces
Secondary Structure
  • C/Z-shaped steel purlins
  • Wall beams
  • Horizontal/vertical supports (wind/earthquake resistance)
Enclosure System
  • Color steel sandwich panels (insulation/fireproof)
  • Single-layer color steel panels
  • Waterproof roof systems
  • Doors and windows
  • Roller shutters
Supporting Facilities
  • Crane beams (as needed)
  • Photovoltaic roof systems
  • Ventilation systems
  • Fire protection systems
  • Flooring systems
Custom Designed Steel Structure Industrial Building Prefab Steel Workshop Wind Resistance Custom Designed Steel Structure Industrial Building Prefab Steel Workshop Wind Resistance
Product Specifications & Parameters
Material Q235B, Q355B galvanized or painted steel
Main Frame H-section steel column & steel beam
Purlin C/Z-section steel purlin
Roof and Wall 1. Color-coated corrugated steel sheet
2. Rock Wool Sandwich Panel
3. EPS Sandwich Panel
4. Glass wool Sandwich Panel
5. PU sandwich panel
Door 1. Rolling up door
2. Sliding door
3. Sandwich door
4. Security door
5. PVC door
Window 1. PVC window
2. Aluminum alloy frame window
Down Spout Round PVC pipe
Custom Design & Quotation Process
We have a professional design team (40+ people, 10+ year experience) that supports customized colors and materials to meet your specific requirements.
Quotation Process
  • With existing drawings: Quote directly
  • With plans/ideas: Design per your needs + provide quotation
Required Information for Quotation
  • Location/regional conditions
  • Building size: Length * Width * Eave height
  • Local environment: Max. wind speed; snow load (if applicable)
  • Anti-earthquake requirement
  • Roof/wall material preferences
  • Brick wall needed (specify height if yes)
  • Crane requirement (specify lift tons if yes)
  • Existing drawings/specifications (if available)
Project Cooperation Process
The cooperation process begins when a customer sends an inquiry. We then proceed with the design and quotation phase. Our technicians make design quotations or direct quotations according to customers' demands.
Once the project is ordered, our factory will start manufacturing and fabrication. After completion, the finished products are shipped to the customer's country for installation. We will provide customers with construction drawings and installation videos, along with online guidance. If customers have specific needs, we can also send construction personnel to the customer's country for offline installation guidance.
Finally, after the installation is completed, the project is successfully finished.
Custom Designed Steel Structure Industrial Building Prefab Steel Workshop Wind Resistance Custom Designed Steel Structure Industrial Building Prefab Steel Workshop Wind Resistance Custom Designed Steel Structure Industrial Building Prefab Steel Workshop Wind Resistance
Frequently Asked Questions
You are manufacture factory or trading company?
We are manufacture factory located in Luoyang, China. We specialize in providing customized steel structure engineering solutions for global clients. With our own production base, complete processing lines, and professional engineering team, we handle everything from raw material preparation and component processing to finished product delivery, ensuring precise quality control and flexible delivery schedules.
How do you ensure the building meets my local codes?
We design using ASTM, Eurocode, or AS/NZS standards based on your project's GPS. We provide a full Calculation Report to ensure 100% approval by your local building authorities.
What if the steel structure doesn't fit my concrete foundation?
We provide Anchor Bolt Templates and 3D layout plans before shipping. Our Tekla Modeling ensures 100% alignment between the steel columns and your civil work.
Labor is expensive here. Is the installation difficult?
Our 100% Bolt Connection design requires no on-site welding. Parts are numbered for Lego-like assembly, reducing your local labor costs by up to 50%.
