Specifications
Brand Name :
HCGG
Model Number :
PSS001
Certification :
CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001
Place of Origin :
Henan,China
MOQ :
100 square meters
Price :
USD30-70 Square Meter/Negotiable
Payment Terms :
L/C,T/T,Western Union,Alibaba.pay
Supply Ability :
50000 Tons/year
Delivery Time :
20-50days
Main Structurel Material :
Q355B/ASTM A572 Gr.50/EN S355/JIS SM490
Secondary Structurel Material :
Q235B / ASTM A36/ EN S235JR / JIS SS400
Other Material :
Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570
Customization :
Style,size,Color,Material
After-sale Service :
Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support
Project Solution Capability :
CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply
Column and Beam :
Welded H-section/Hot-rolled H-beam/Box column
Purlin :
C.Z Shape Steel Channel
Roof and Wall panel :
EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized/
Window :
Aluminum alloy / PVC /Industrial louver window
Door :
Sliding/Rolling shutter/Hinged steel/Customized steel door
Surface treatment :
Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating
Service Life :
20-50 Years
Life Span :
More Than 50 Years
Description

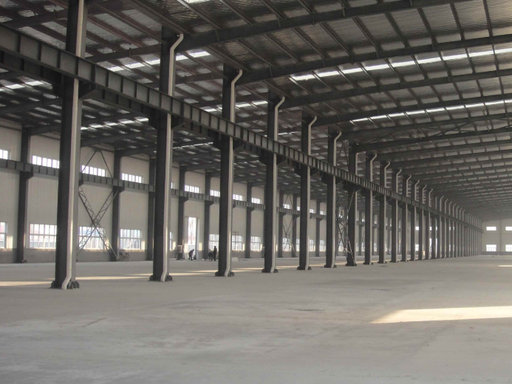

Modular Design Welded H Section Steel Prefabricated Steel Structure Building
Precast steel structures refer to building systems where key steel components (beams, columns, trusses, purlins, and connecting plates) are precision-manufactured in a factory under controlled conditions, then transported to the construction site for rapid assembly via bolting and minimal on-site welding. Factory production and on-site foundation construction occur simultaneously, significantly shortening project timelines.
Product Specification & Parameters
Items Materials Specification
Steel Frame H section column and beam Q355 steel, paint or galvanization
Wind resistant column Q355 steel, paint or galvanization
Secondary Bracing Roof purlin Q235B C/Z section galvanized steel
Wall purlin Q235B C/Z section galvanized steel
Tie bar Q235 round steel pipe
Knee brace Q235 angle steel
Roof horizontal bracing Q235 steel bar, paint or galvanized
Column vertical bracing PVC pipe
Purlin brace Q235 round bar
Knee brace Q235 angle steel
Casing pipe Q235 steel pipe
Gable angle steel Q235 M24
Roof and Wall Wall and roof panel Corrugated steel sheet, sandwich panel
Protecting System Self tapping screw
Ridge tile Color steel sheet
Corner trim Color steel sheet
Fastener System Anchor bolts Q235 steel
High strength bolt Specifications determined according to steel structure design
Normal bolt
Nuts
Welded H Section Prefabricated Steel Structure Building Modular Design Custom Color
Key Advantages
Fast Construction
30–50% shorter project duration than concrete/traditional builds; mid-sized warehouses can be weather-tight in 6–8 weeks with less weather delays and earlier occupancy.
Superior Quality & Durability
CNC cutting/welding with strict tolerances (±1mm); high seismic/wind resistance; lifespan over 50–100 years with proper coating systems.
Cost Efficiency
Reduced on-site labor, minimal material waste, and lower foundation costs due to steel's lighter weight compared to concrete.
Flexibility & Expandability
Large clear spans without middle columns; easy length/width/height extension capabilities for future growth and modifications.
Sustainability
Steel recycling rate exceeds 90% compared to concrete's ~10%; lower construction emissions and reduced waste generation.
Welded H Section Prefabricated Steel Structure Building Modular Design Custom Color Welded H Section Prefabricated Steel Structure Building Modular Design Custom Color
Main Applications & Examples
  • Industrial: Factories, warehouses, logistics centers - the largest segment favoring large spans and fast delivery
  • Commercial: Exhibition halls, shopping malls, aircraft hangars, sports stadiums
  • Residential: Modular steel homes, apartment buildings, temporary housing
  • Infrastructure: Highway service stations, railway terminals, agricultural barns
Welded H Section Prefabricated Steel Structure Building Modular Design Custom Color
