Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Specifications
Seismic and Wind Resistance Rating :
Designed according to local seismic codes/Wind：0.3-1.1 KN/㎡/81-150 mph
Place of Origin :
Henan,China
Main Structurel Material :
Q355B/ASTM A572 Gr.50/EN S355/JIS SM490
Roof and Wall panel :
EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized
Purlin :
C.Z Shape Steel Channel
Surface treatment :
Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating
Secondary Structurel Material :
Q235B / ASTM A36/ EN S235JR / JIS SS400
Certification :
CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001
Supply Ability :
50000 Tons/year
Brand Name :
HCGG
After-sale Service :
Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support
Project Solution Capability :
CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply
Service Life Time :
50+ Years
Price :
USD35-75 Square Meter/Negotiable
Customization :
Style / Size (Span, Height, Length) /Color / Material / Crane Capacity
Model Number :
PSS001
Service Life :
20-50 Years
Window :
Aluminum alloy / PVC /Industrial louver window
Door :
Sliding/Rolling shutter/Hinged steel/Customized steel door
MOQ :
100 square meters
Delivery Time :
20-40days
Payment Terms :
L/C,T/T,Western Union,.pay
Other Material :
Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570
Column and Beam :
Welded H-section/Hot-rolled H-beam/Box column
Life Span :
More Than 50 Years
Description
Prefabricated Steel Structure Agricultural Farm Buildings
Steel H Beam Q355B Q235B rapid assembly farmhouses designed for efficient agricultural operations.
Product Overview

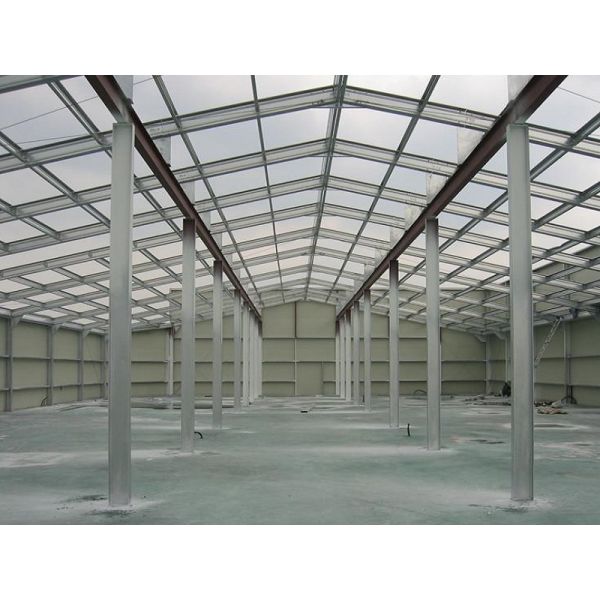

Prefabricated steel structure agricultural buildings feature factory-processed steel components including columns, beams, purlins, supports, and enclosure panels. All components are precision-engineered, rust-free, and corrosion-resistant, manufactured according to standard or custom drawings for rapid on-site assembly using bolts. This construction method significantly reduces on-site welding and wet work requirements.
Primary Materials
Main structural steel: Q355B (Equivalent to S355JR, ASTM A572 Gr.50) and Q235B (equivalent to S235JR, ASTM A36)
Structural Components
  • Main Structure: Portal frame (most commonly used), steel truss/box columns
  • Secondary Structure: C/Z-shaped steel purlins, wall beams, horizontal/vertical bracing for wind and earthquake resistance
  • Enclosure System: Color steel sandwich panels (thermal insulation and fireproofing), single-layer color steel panels, skylights, roller shutters/sliding doors, ventilation louvers
Agricultural-Specific Features
  • Ventilation, temperature control, and sewage treatment systems for livestock and poultry houses
  • Moisture-proofing, fumigation, and temperature measurement for grain silos
  • Extra-high doors for agricultural machinery hangars
  • Photovoltaic roof systems
  • Comprehensive fire protection systems
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
Product Specifications
Items Specification
Main steel structure H section steel beam, column, Painted or Galvanized
Material Q235B, Q355B
Bolt Accessories Foundation bolt, High-strength bolt, General bolt
Roof and wall EPS, Glass Wool, Rock Wool, PU Sandwich panel, Corrugated steel sheet
Door Sliding Sandwich Panel Door, Rolling Metal Door
Window Aluminium Alloy Window, PVC Window
Surface Hot dip galvanized, Painted
Other Semi-transparent Skylight belts, Ventilators, Downpipe and Gutter
Applications

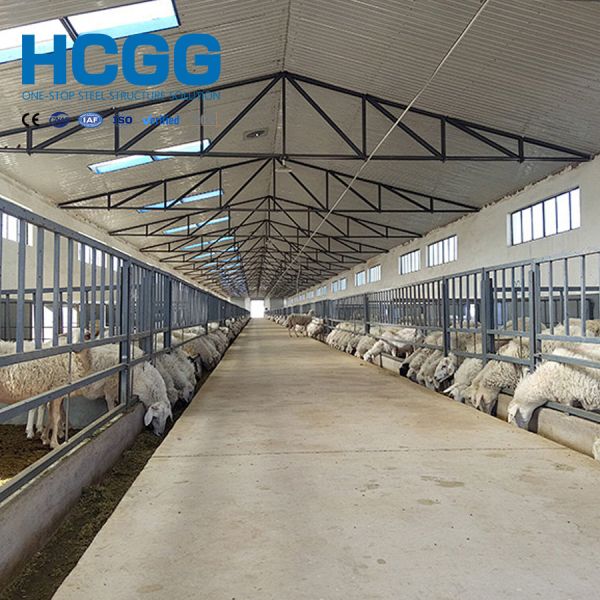

  • Large-scale livestock farming buildings: Steel-structured chicken coops, pig sheds, cattle sheds, sheep sheds, livestock farms, and quarantine sheds with emphasis on insulation, ventilation, corrosion resistance, and rapid construction
  • Grain and agricultural product storage: Grain warehouses, feed warehouses, seed warehouses, cold storage for fruits and vegetables, and drying warehouses focusing on moisture control, insect prevention, large space, and airtight insulation
  • Agricultural machinery and implement facilities: Agricultural machinery warehouses, implement sheds, machinery repair workshops, and agricultural supply warehouses characterized by large spans, high headroom, large doors, and openable designs
  • Greenhouses and planting facilities: Steel-structured multi-span greenhouses, seedling sheds, flower greenhouses, and ecological planting sheds equipped with light transmission, shading, temperature control, and water and fertilizer systems
  • Agricultural product processing workshops: Sorting workshops, packaging workshops, primary processing plants, and cold chain processing centers meeting requirements for load-bearing capacity, fire prevention, ventilation, and cleanliness
  • Supporting facilities for modern agricultural parks: Agricultural exhibition halls, office buildings, warehousing and logistics centers, and agricultural product trading sheds designed for prefabrication, disassembly, and relocation
  • Livestock manure and environmental protection facilities
Manufacturer Profile
HCGG Direct Export Manufacturer
A steel structure factory integrating design, manufacturing, and export, providing competitive factory-direct prices with comprehensive service capabilities.
Our Capabilities
  • Custom Design: Non-standard and project-based steel structures customized according to drawings and technical requirements
  • Precision Manufacturing: Strict quality control from material selection and processing to coating, ensuring compliance with international standards
  • Safe Delivery: Comprehensive production management ensures project stability and timely delivery
  • Lifetime Support: Professional after-sales service team offering remote or on-site technical support with regular client follow-ups and full responsibility for quality issues
Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed Steel H Beam Prefabricated Agricultural Buildings Q355B Q235B Rapid Assembly Farm Shed
