Specifications
Brand Name :
AJMS
Model Number :
AJMS1802
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD15500 - USD18500/set FOB Shanghai port
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets
Delivery Time :
within 20 days
Packaging Details :
packaging by plywood case.
Product name :
CTO Block Filter Cartridge Mking Machine
Rated power :
16.45KW
Actual power :
8KW
Length :
10", 20", 30"...100"
OD :
29mm-120mm
ID :
9mm-80mm
Layout :
15 square meters at least, 20-30 sqaure meters is better
Raw material :
active carbon + PE gule powder
Weight :
950KG
Capacity :
300mm-400mm/min if water cool carbon cartridge directly
Description

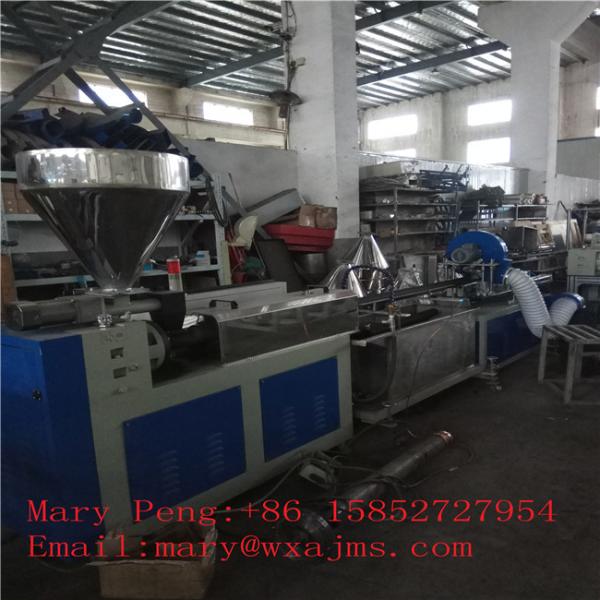

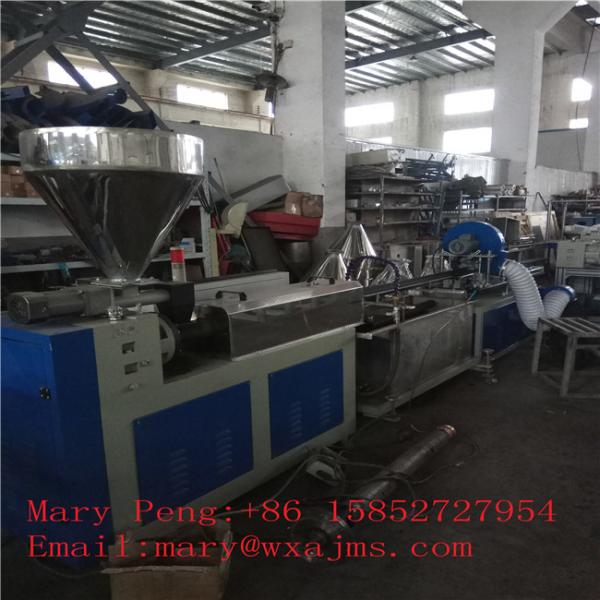

ISO Approved High Capacity CTO Block Carbon Filter Cartridge Making Mchine

Machine Introduction
CTO active carbon filter is made by high-quality fruit shell carbon and coal activated carbon as raw material, as well as food grade adhesive, with high technology and special technique. It combines the adsorption, filtration, interception and catalysis functions together. It can effectively remove the organic matter, residual chlorine and other radioactive substances in the water, and it also can decolor and remove the peculiar smell. It is an ideal new generation products in the air purification industry.


CTO active carbon filter cartridge block making machine/ production line includes the folllowing parts:


Parameter

CTO active carbon filter cartridge block making machine/ production line could work 24 hours without stop
Installed power 16.45kw
Running power 8kw
Raw material

88%-90% Active carbon (granule)
10%-12% PE (powder)
(The mesh number of activated carbon determines the proportion of PE powder.)

Inner diameter 9mm-80mm(customized)
Outside diameter 29mm-120mm(customized)
Length 5”, 10”, 20”, 30”, any length according to customer’s request
Production capacity 250mm-350mm/min
Voltage

three-phase 380V/50HZ
one-phase 220V/50HZ

Note:
One extruder can only make one inner diameter and one outer diameter.
If you want to produce filters with different diameters, you can change some parts of extruder.

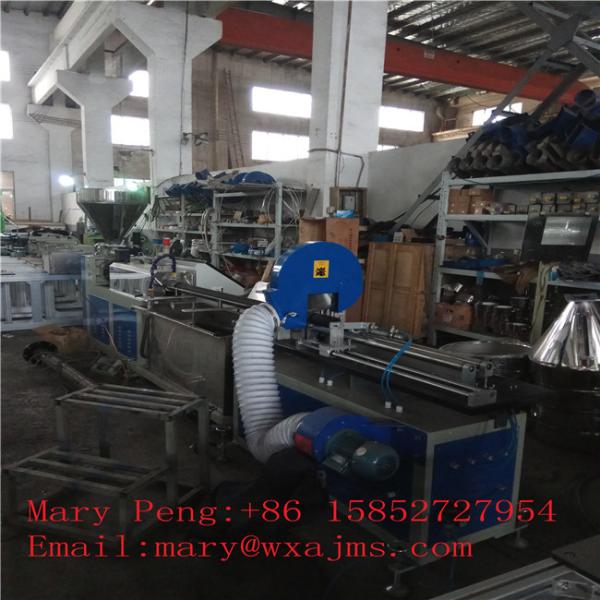

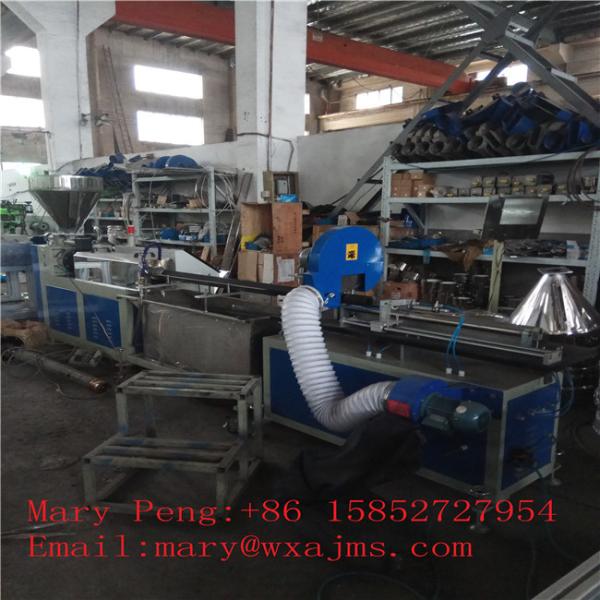

Dust-free auto cutter

If you want to know more information about the raw material you need for CTO Active Carbon Filter Cartridge Block Making Machine/ Production Line, please feel free to let us know.

Application Areas
CTO active carbon filter cartridge is suitable for the purification of water and liquid used in semiconductor, electronics components, printed circuit boards, electroplating industry, food and beverage industry.
Apply to the following industries:
1. Electronics, electric power industry: pure water, gas, electroplating liquid, print line edition and so on.
2. Chemical industry, petrochemical industry: solvents, coating, magnetic pulp, detergent, liquid wax and so on.
3. Pharmaceutical industry: hospital-used water, pharmaceutical injection, traditional Chinese medicine oral liquid and so on.
4. The food industry: food, beverage, drinking water, alcohol and so on.



All kinds filter machine in our company
1.PP String wound filter cartridge machine
2.CTO Carbon filter cartridge production line
3.1E&1M,2E&2M,3E&3M,Pp spun filter cartridge making machine/pp melt blown filter cartridge machine
.........................now we are create more new fields .....................................


Certificate
We have passed CE and ISO 9001:2008.


ISO Approved High Capacity CTO Block Carbon Filter Cartridge Making Mchine
