Specifications
Brand Name :
AJMS
Model Number :
AJMS1802
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD13500-17600/set FOB Shangjai port
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15-20 days after received your deposit
Packaging Details :
by wooden case.
Product name :
CTO Block Filter Cartridge Making Machine
Rated power :
16.45KW
Actual power :
8KW
Capacity :
50 seconds per one (for example 10" length)
Raw material :
actual carbon + PE gule powder
ID :
9mm-80mm
OD :
29mm-120mm
Length :
10:, 20", 30"...100"
Weight :
1 ton
Layout :
13.5 square meters at least, 20-30 square meters is better
Description

AJMS Brand CTO Block Filter Cartridge Making Machine Rated Power 16.45KW

Production capacity

1pc/min(base on 10*2.5inch)

(Can not use water cooling the carbon cartridge directly,this will wet the cartridge,easily mildew and pollution)

Main features of CTO carbon filter cartridge machine

Adding alert system to monitor the whole production line

Each part produced by famous company.ABB,OMRON,SCHNEIDE

Advantages

1. Whole production is fully automatic,no need people to operate

2. Advanced technology, saving electricity

The parameter of the production line

voltage: 3P/380V/50HZ

Rated power: 16.45 KW

Actual power: 8 KW

Raw material:

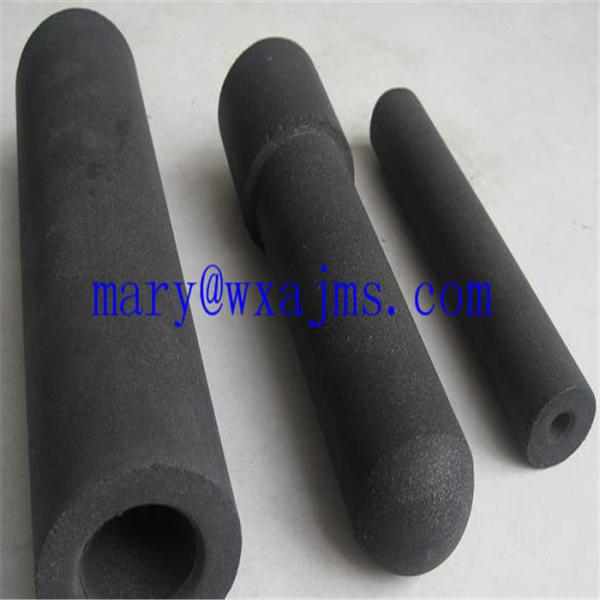

Active Carbon(Granule) and PE Glue(Powder)

Active Carbon percentage is 88%-90%.the other is 10%-12%

Inner diameter:10mm-80mm(default 39 or 40mm)

Outer diameter:20mm-120mm(default 62mm)

Length: 5’’,10’’,20’’,30’’,40’’.............100’’

Machine weight: 1 ton

Mark:One extruder just make one kind of inner diameter and outer diameter.If you want to do other diameter(≤65mm), need to replace barrel and screw,if diameter beyond 65mm,advice big extruder is better

Each Part Description

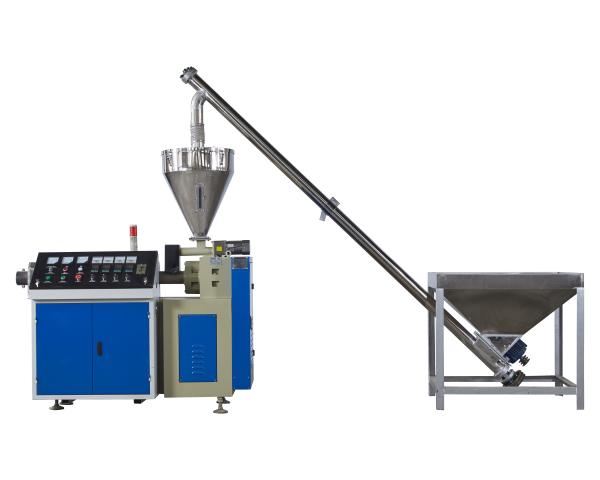

1.Auto Mixer

Mix raw material, mixing the carbon granules and PE glue powder

Power:3Kw Size:800*800*1300mm Weight:110Kg

Material:304 stainless steel

2.Auto Feeder

Feed raw material from mixer into extruder hopper automatically

Power:2.2KW Size:2600*800*2200mm Weight:100Kg

Material:304 stainless steel

3.E-Controller&Extruder

Extrusion&melt mixed material into carbon block filter

Power:9.5Kw(Motor 4Kw, heating 5.5Kw) Size:2250*530*1150mm Weight:350Kg

With alert system monitor the whole production line

Electronic components are from famous companies, such as ABB inverter ,Omron controller,Schneider state

Screw rod material is 38CrMoAl with nitriding and quenching,Hardnes be eaqual or greater than 1500HV

Hard teeth gear box Four heating zones

5.Cooling System

Cool the carbon cartridge temperature and become hard shape

Pump power:0.25Kw Size:1250*600*950mm Weight:100 kg

6.Auto Cutter

Auto Cut the carbon cartridge length

Cutting any length you want,like 5”,10”,20”...

Power:0.75kw Size:1500*650*1250mm Weight:200Kg

Dust collect equipment,seldom dust happen when cutting moment,more clean

production capacity

1.300mm-400mm/minute if water cool carbon cartridge directly.

2.150mm-200mmminute if you want cool mold directly not cool carbon cartridge.
Main features of CTO carbon filter cartridge machine
l good quality
2.each part produced by famous company.
l Electric-saving

1. a leading manufacturer,producing the machine for more than 20 years.

2.Advanced technology,saving electric
l Easy operation

1.Our engineers will teach you unit you can operate by yourself.

2.Automatic feed machine and automatic cutting machine.
The parameter of the production line (best energy-saving)
Rated power: 16.45KW
Raw material

Active Carbon(Granule) and PE Gule(Powder)

Active Carbon percentage is 88%-90%.the other is 10%-12%.
Internal diameter(Default) 9mm-80mm

One extruder just make one kind of inner diameter and outer diameter.

If you want to do other diameter,you need to replace some parts of extruder.
Outer diameter(Default) 29mm-120mm
length 5’’,10’’,20’’,30’’,40’’.............100’’
Machine weight 3.9Tons
Wastage of material 10KG material wastage will be needed for starting machine
Layout of the whole product line(1.5m*9m)
Minimum require 13.5square meter,20-30square meter is better.
