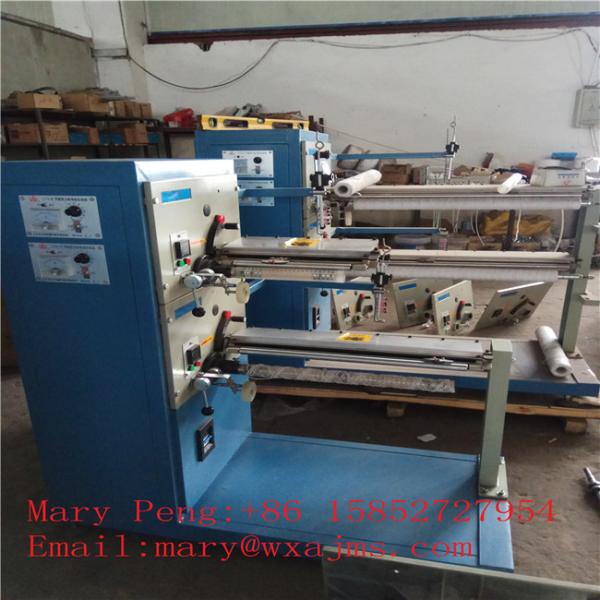

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
Specifications
Brand Name :
AJMS
Model Number :
AJMS1803
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD2300 - USD4700 per set
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
within 1 week
Packaging Details :
by plywood case
Product name :
PP Yarn Water Filter Cartridge Making Machine
Size :
10"&20"
Power :
430W
Output :
95-110pcs/H
Winding line speed :
40-280m/min
Power supply :
three-phase 220V/50HZ, one-phase 380V/50HZ
Motor power :
180W/spindle, 250W/spindle
Motor speed :
2800r/min
Winding frame material :
polypropylene, stainless steel etc,.
Single spindle panel size :
(WxH) 390x308mm
Description

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine

PP string wound filter cartridge making machine is professionally produce all kinds of pp string wound filter cartridge with different micros and patterns.

PP String wound cartridges offer true depth filtration with high dirt holding capacity and extremely low media migration. It is manufactured using a high speed, continuous wind process which creates a superior one-piece filter with hundreds of diamond shaped tunnels that get progressively smaller from the outer diameter to the core. Finer particles are progressively trapped as fluid travels to the center of the filter allowing for much greater retention capacity than that which is associated with straight surface filter media of the same dimensions and porosity

All types of Machine

1.Single Head:

10’’ single head 20’’ single head 30’’ single head 40’’ single head

5’’,50’’,60’’,70’’,80’’...

100’’

2.Double Head:

10’’&10’’ double head 10’’&20’’ double head 30’’&40’’ double head 20’’&30’’ double head

40’’&40’’,10’’&30’’,

20’’ & 40’’....

Specifications of machines

Specification
1 type power Output(piece/hour) mark
2 10inch 180W 50-60
3 20inch 250W 45-55
4 30inch 370W 25-30
5 40inch 370W 20-25
6 10inch&10inch 360W 100-120
7 10inch&20inch 430W 95-115
10&20 machine dimension :(L*W*H) :1200*600*1250mm
30&40 machine dimension :(L*W*H) :1800*600*1250mm
After packing size
Machine type After packing size(L*W*H mm)

Net weight

(KG)

Gross weight

(KG)
Single
10inch 1050*650*1400 50 80
20inch 1200*600*1400 80 100
30inch 1500*650*1400 100 120
50inch 2150*650*1400 220 260
60inch 2300*650*1400 220 300
70inch 2600*650*1400 150 180
Double
10&10 inch 1050*650*1400 80 100
10&20 inch 1200*650*1400 110 150
20&30 inch 1500*650*1400 180 200
30&40 inch 1850*650*1400 220 260
40&40 inch 1800*650*1250 250 280

Payment & Delivery

Payment: T/T, 30% in advance and balance before shipment
Delivery time: 8-10 working days upon date of receipting deposit
Min order: 1 set
Guarantee time: 1 year

Default Voltage:3-Phase 380V/50HZ or 60HZ,1-Phase 220V/50HZ.if your side is different from

us,we could change as your side.

Package: wooden case

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine

Finished products

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine

2018 Good Quality PP Yarn Water Filter Cartridge Making Machine
