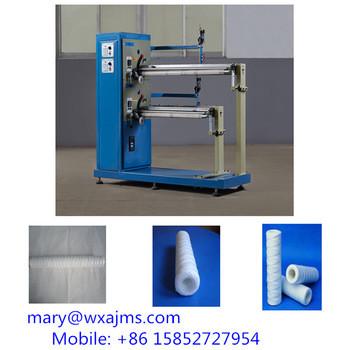

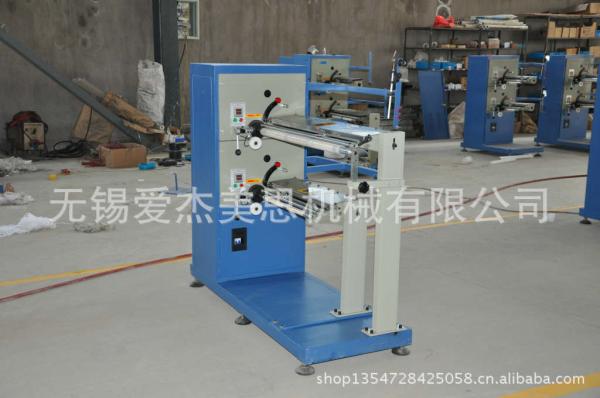

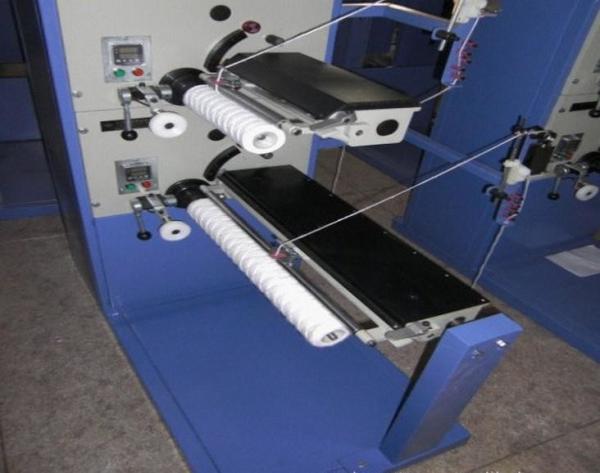

10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine
Specifications
Brand Name :
AJMS
Model Number :
AJMS1803
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD2300-4300/ set FOB Shanghai port
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
within one week
Packaging Details :
by plywood case
Commodity :
10"-20" PP Yarn Winding Filter Making Machine
Winding line speed :
40-280m/min
Max winding diameter :
200mm or as client's request
Connecting cable :
4X1.5mm R.S.J.MP
Power supply :
three-phase 380V/50HZ, one-phase 220V/50HZ
Motor power :
180W/spindle, 250W/spindle
Motor speed :
2800r/min
Winding frame material :
polypropylene, stainless steel etc,.
Power :
430W
Output :
95-110pcs/H
Description

10''-20'' High Capacity PP Yarn Winding Filter Cartridge Making Machine

Introduction

We provide 2 different kinds of polypropylene yarn winding filter cartridge making machine. Following are their differences:

Name Description Features
Adjustable Winding Speed type

1. Change the winding speed simply by a spin button

2. Change the filter pattern by changing the gears and belts, which takes around 20 minutes

*Easy to operate

*Save power

*Easy to maintain

*Easy to change winding speed
Auto type

1. Change the winding speed simply by a spin button

2. Change the pattern by entering the gear rate into the control panel

*Easy to operate

*Save power

*Easy to maintain

*Easy to change winding speed

*Easy to change pattern
The two kinds of machines can auto stop when filter cartridge is finished.

Parameters

Machine Size 10’’ 20’’ 30’’ 40’’ …
Power 370w 370w 370w 370w …
Output(pcs/hour) 80-90 70-80 30-40 20-30 …
Speed(r/min) 14400 14400 14400 14400 …
PP core length(mm) 248 498 748 998 …
252 506 760 1014 …
Filter cartridge length(mm) 250 500 750 1000 …
254 508 762 1016 …
Winding speed 40-280m/min
Max winding diameter 200mm(slightly above 200mm is available, free to customize)
Motor Speed 2800r/min
Frame Material Polypropylene, stainless steel etc.
Raw Material PP yarn, cotton etc.
Filter precision 0.5,1,5,10,20,50,100µm...etc.

Default Micro: 5 Micro

Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available)

Install: Our engineer will teach you how to install and operate in our factory.

polypropylene yarn winding filter cartridge making machine can be customized to produce two or more different filters at the same time.

If you want to know more parameters, kindly please contact us.

After-sale Services

One-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.

If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry.

Our engineers can speak well English.

Training: 2 solutions

1. Welcome to come to our factory for trainning.
2. We can also provide an operation manual and video to teach you how to operate the machine.

Packaging & Shipping

Every part is packed by plastic film, and all are packed in wooden case.

Shanghai Port is our usual choice, but other ports are available due to your requirements.
