Specifications
Brand Name :
Suntech
Model Number :
23001
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Grounding Lead
Item No. :
23001
Voltage class :
10-500KV
Ground soft copper wire :
25-50mm
Warranty :
1 year
Description

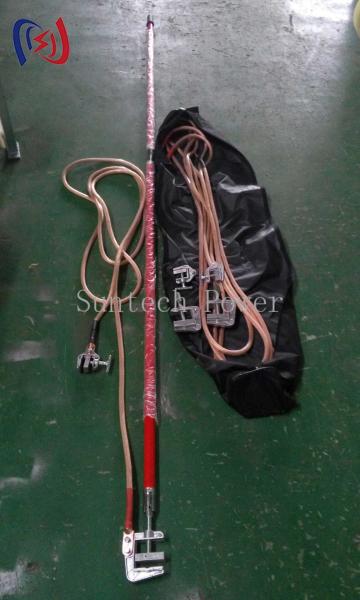

Grounding Lead Spiral Compaction( Substation Type)

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

It is suitable for transmission lines,power plants and substation equipment,short circuit grounding for power outage maintenance.

Feature

1.Wire clamper with aluminum alloy casting,high strength,good conductivity.

2.The portable short-circuit grounding wire is packed in canvas bag with exported wooden boxes,which is easy to carry and transport

Item No.23012

Double tongue tension(Transmission line type)

Item No.23011

Spiral compaction(Transmission line type)

Item No.23001

Spiral compaction(Substation type)

Grounding Wire Configuration Table:

Voltage class Ground soft copper wire

Length of Ground Operation Rod

(mm)
(mm2) (m)
Insulating Handheld Total length
10KV 25 1*3+7~1.5*3+20 700 300 1000
35KV 25 1.5*3+18 900 600 1500
68KV 25 1.5*3+20 1000 600 1600
110KV 25,35 9*3 1300 700 2000
2*3+20
220KV 25,35 9*3 2100 900 3000
3*3+25
330KV 35,50 12*3 4*3+25 3000 1100 4100
500KV 35,50 13*3~20*3 4100 1400 5500
220-500KV Overhead ground wire 25 1*3+7~1.5*3+20 700 300 1000
High pressure test equipment 35,50 5*3~10*3 700 300 1000

The rated value of the copper wire per meter:

Sectional area(mm) 10 16 25 35 50 70 95 120
Wire diameter(mm) 4.2 5.7 7.5 8.78 11 12 16 17
Sheath diameter(MΩ) 7.3 7.8 9.6 11.2 12.6 16.5 21 22
Resistance value(A) 1.98 1.24 0.79 0.56 0.4 0.28 0.21 0.16
Safety current 90 100 123 150 210 238 300 300
