Specifications
Brand Name :
Suntech
Model Number :
CLJ60S
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Cable Blower Set
Item No. :
20401
Maximum transportation force :
700N
Transportation speed :
8-80m/min
Dimension :
1390x700x850mm
Weight :
125KG
Warranty :
1 year
Description

Cable Blower Set Apply To Long-distance Communications Cable Construction

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

Configuration

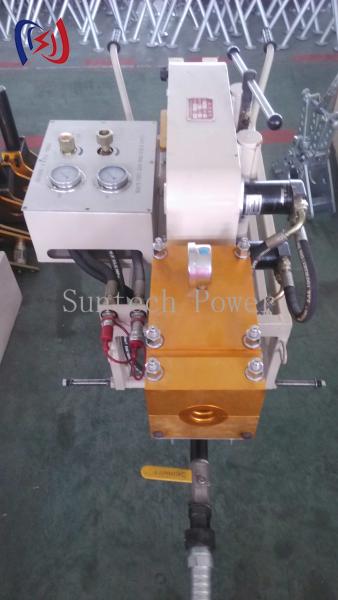

1. CLJ60 Cable Blower Set Apply to long-distance communications cable construction.

Generally the blow length achieve 1000~2000m.

2. Whole set is composed of cable blower set,hydraulic pump station. Air proof piston,cable seal ring,plastic seal ring,air compressor.

which provide compress air need to purchase additional.

3. Cable blower set ,hydraulic pump,a set sealing piece that specify the cable outside diameter and silicon core pipe by customer, a set model GDJ150 pipe sealing inspection equipment.

Technical Data

Essential technical parameter

Item No. 20401
Maximum transportation force(n) 700(consecutive adjustable)
Transportation speed(m/min) 8-80(consecutive adjustable)
Applicable cable diameter(mm) Φ10~11.7,Φ11.8~13.5,13.6~15.3,Φ15.4~17.1

Applicable silicon core pipe(out

diameter/inner diameter)(mm)

 Φ33/Φ40
dimension(mm) 1390x700x850
weight(kg) 125

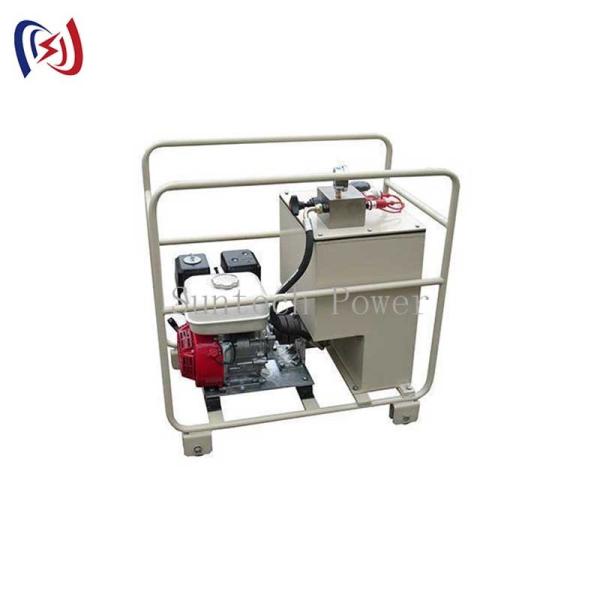

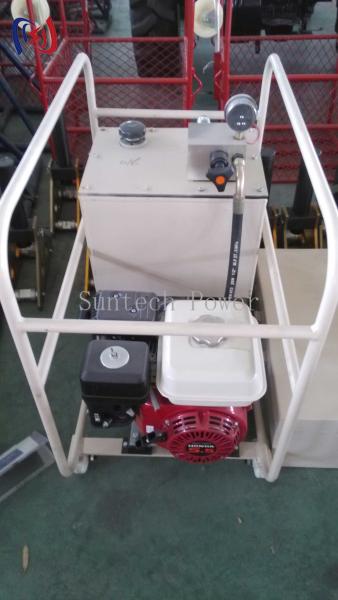

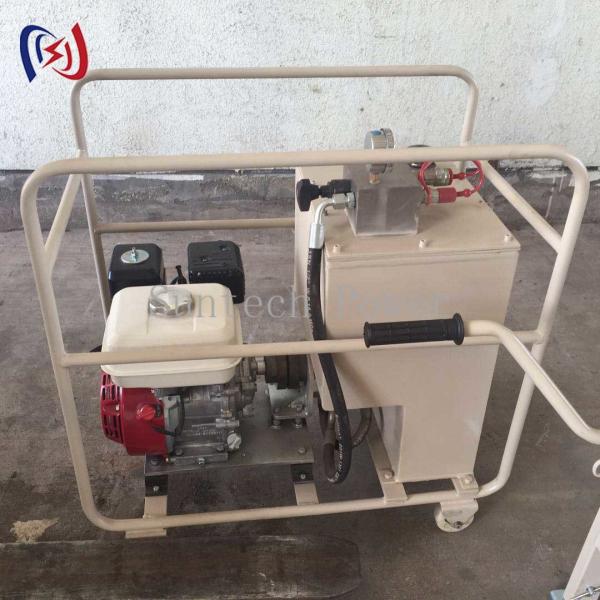

Pump station essential technical parameter

maximum pressure(MPa) 15
hydraulic flux (1/min) 10
gasoline (hp/rpm) 6/1800
length of tube(1/min) 10
dimension(mm) 780x470x780
weight(kg) 87.5
