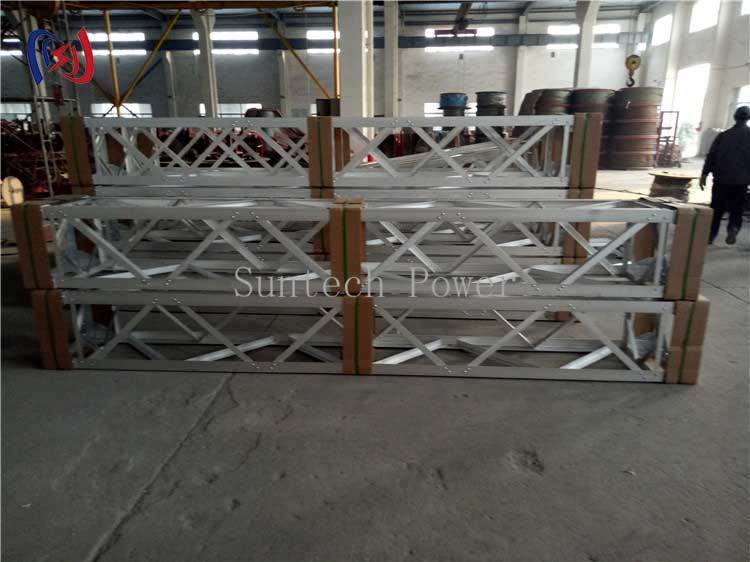

Inner Suspended Lattice Gin Pole — Aluminum Alloy Tower Erection Tool, 8-32m Range

Supplied by Suntech Power Tools, a Ningbo-based manufacturer with more than 20 years of experience in power transmission line stringing and tower erection tooling, this inner suspended lattice gin pole is used in transmission and distribution line engineering for slinging tower material and positioning pulley sets during tower erection.

Product Overview

The gin pole adopts a single-arm style that is free from direction restriction for convenient use. The main material is right-angle aluminum titanium alloy section with rivet-jointed construction, making it portable and durable. A safety factor of 2.5 applies across the range, and a wide selection of models covers spans from 8m to 32m.

Technical Specifications

Key Features & Benefits

• Single-arm, direction-free design: Free from direction restriction for convenient use during erection.
• Lightweight aluminum titanium alloy: Right-angle section with rivet joints for portability and durability.
• Wide model range: Section sizes from 300x300mm to 700x700mm and working ranges from 8m to 32m.
• High vertical load capacity: Vertical load from 13kN up to 294kN depending on model.
• Consistent safety factor: 2.5 safety factor maintained across the range.

Applications

• Slinging tower material during transmission and distribution line construction
• Positioning pulley sets for tower erection
• Inner suspended lattice gin pole erection of lattice towers
• General tower assembly and rigging work

Quality, Expertise and Trust

Every gin pole is produced under an ISO 9001:2008 certified quality management system and inspected before shipment for section dimensions, rivet joints and load capacity. With two decades of experience supplying stringing blocks, cable rollers and tower erection tooling to customers in more than 50 countries, Suntech supports each order with technical consultation, OEM production and a 1-year warranty.

Why Choose Suntech

• Long-standing expertise in tower erection and stringing equipment
• Lightweight right-angle aluminum titanium alloy construction
• Full 8-32m range with 2.5 safety factor
• Reliable export logistics and consistent lead times

Request a quotation: Tell us your tower height and required vertical load, and our team will recommend the right LBNX or BNX model for your erection project. Contact us today.
