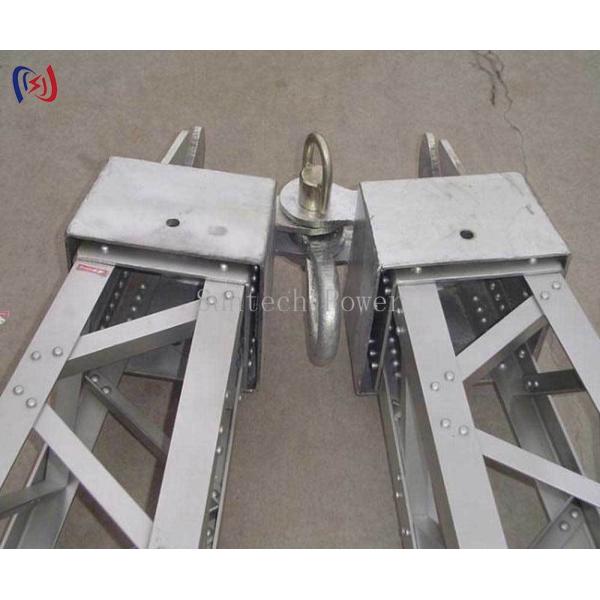

A Shape Lattice Gin Pole — Tower Erection Tool in Aluminum Alloy and Manganese Steel, 8-28m Range

Supplied by Suntech Power Tools, a Ningbo-based manufacturer with more than 20 years of experience in power transmission line stringing and tower erection tooling, this A shape lattice gin pole is used to assemble and erect towers and poles in transmission line construction.

Product Overview

The head part of the gin pole is inverted, and the base part is available in semicircle or square form — please note the base type when ordering. Two material options are offered: the LBR range (03361-03445) is made of lightweight aluminum alloy, while the GBR range (03611-03615) is made of high-strength manganese steel. A safety factor of 2.5 applies across the range.

Technical Specifications

Key Features & Benefits

• A-shape lattice structure: A stable double-arm lattice frame for efficient tower and pole erection.
• Two material options: Lightweight aluminum alloy (LBR) or high-strength manganese steel (GBR).
• Inverted head, selectable base: Inverted head design with semicircle or square base to suit the job.
• Wide model range: Sections from 250x250mm to 700x700mm with working ranges from 8m to 28m.
• Consistent safety factor: 2.5 safety factor maintained across the range.

Applications

• Assembling and erecting lattice towers and poles
• Transmission and distribution line construction
• Slinging tower material and positioning pulleys during erection
• General tower assembly and rigging work

Quality, Expertise and Trust

Every gin pole is produced under an ISO 9001:2008 certified quality management system and inspected before shipment for section dimensions, joint quality and load capacity. With two decades of experience supplying stringing blocks, cable rollers and tower erection tooling to customers in more than 50 countries, Suntech supports each order with technical consultation, custom manufacturing and a 1-year warranty.

Why Choose Suntech

• Long-standing expertise in tower erection and stringing equipment
• Lightweight aluminum alloy and high-strength manganese steel options
• Full 8-28m range with 2.5 safety factor
• Reliable export logistics and consistent lead times

Request a quotation: Tell us your tower height, required load and preferred base type, and our team will recommend the right LBR or GBR model for your project. Contact us today.
