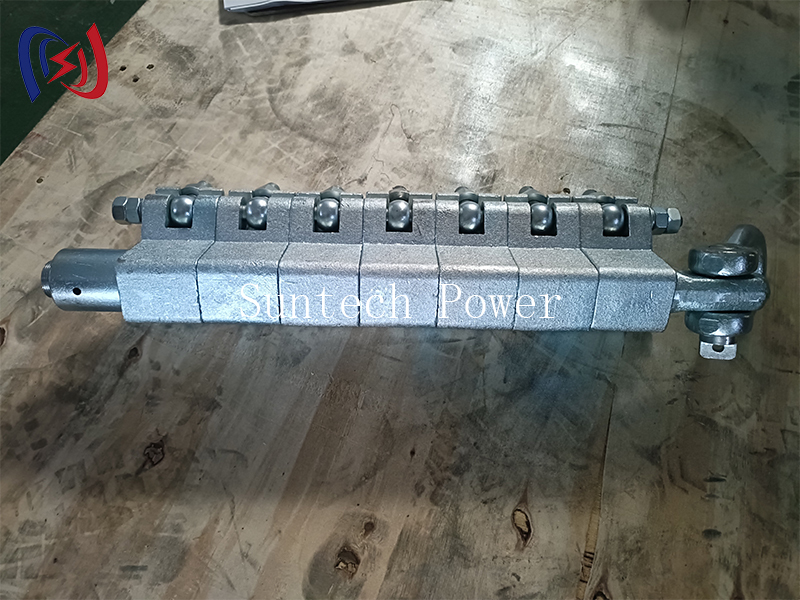

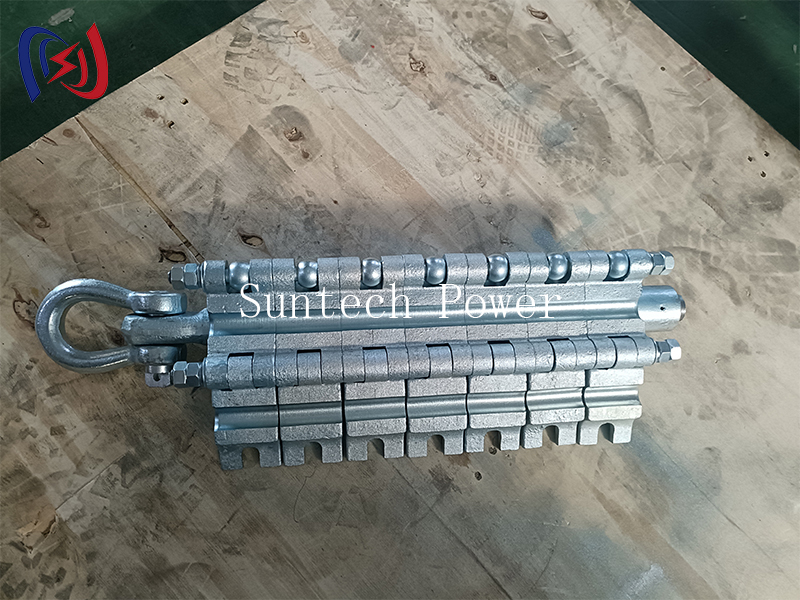

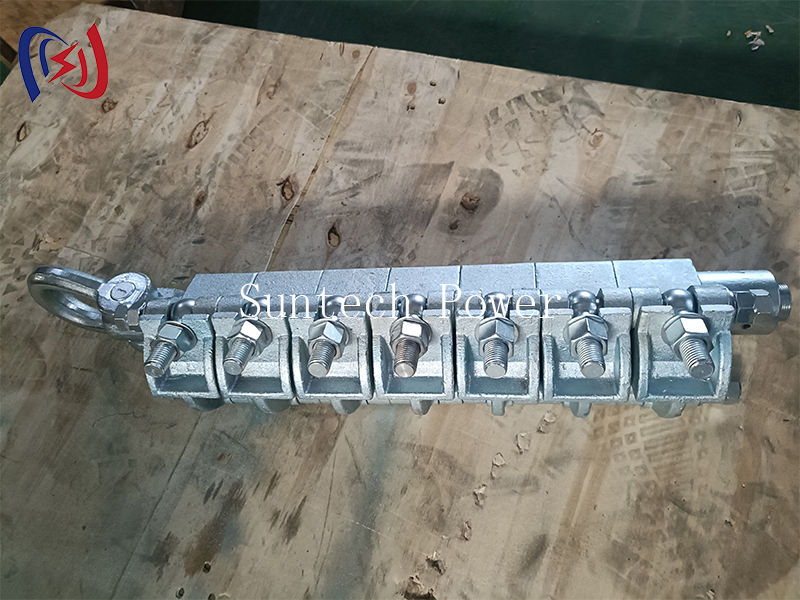

Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Heavy Duty 150KN Rated Load Multi-segment Conductor Gripper Come Along Clamp ISO 9001:2008 Certified
Specifications
Model Number :
SK35DP
MOQ :
1 PCS
Delivery Time :
3-7days
Warranty :
1 year
Price :
Negotiable
Rated Load :
90-150KN
Diameter :
25-50mm
Packaging Details :
Plywood Case
Payment Terms :
L/C,T/T
Model :
SK35DP1
Torque :
150N.m
Supply Ability :
500 PCS/Month
Name :
Multi-segment Type Conductor Wire Grip
Brand Name :
Suntech
Certification :
ISO9001
Place of Origin :
Ningbo
Description

Heavy Duty Large Conductor Gripper with OEM Customization under ISO 9001


Product Overview

Pull a thick ACSR conductor with a single-point clamp and the wire can skid or get its surface scored; at high tension the consequences are worse. The SKDP2 come-along avoids this by wrapping the conductor with 9, 11, 13 or 15 segments, spreading the pull around the full circumference so pressure never concentrates in one spot. SK35DP2 and SK50DP2 are rated 120KN and 150KN respectively for conductors up to Φ35mm and Φ50mm, with a 150N.m tightening torque; buyers specify the conductor diameter at ordering so the segment set matches the wire exactly. Manufactured under ISO 9001:2008, the range also supports OEM production for project-specific needs.

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Conductor Dia. (mm)

Tightening Torque (N.m)

Weight (kg)

13230L

SK35DP2

120

Φ35 (MAX)

150

20

13231L

SK50DP2

150

Φ50 (MAX)

150

26

Applications

· Stringing large cross-section conductors under high tension

· Building long span transmission lines

· Tensioning conductors and adjusting sag

· Heavy duty overhead line stringing operations

Product Advantages

· Circumferential Even Grip — 9, 11, 13 or 15 segments distribute clamping force evenly over 25-50mm conductors, preventing skid and surface damage.

· 120-150KN Pull Capacity — SK35DP2 delivers 120KN and SK50DP2 delivers 150KN, sized for high tension and long span conditions.

· Torque Rated Clamping — The 150N.m tightening torque holds the conductor firmly; specifying the wire diameter at order time gives an exact segment fit.

· ISO 9001:2008 Production — Manufactured under an ISO 9001:2008 quality system, with OEM customization available for project specific requirements.
