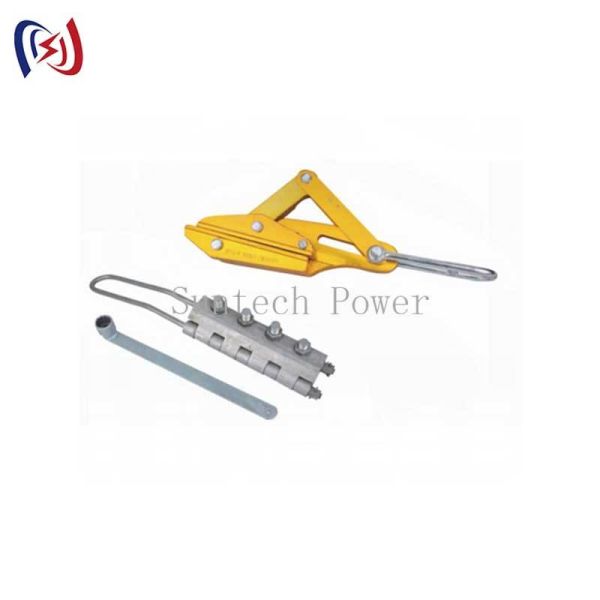

OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
OPGW Gripper Come Along Clamp with 16-45KN Rated Load for Fiber Safe Cable Stringing (8-17mm Diameter)
Specifications
Payment Terms :
L/C,T/T
Model :
OPGW
Supply Ability :
500 PCS/Month
Name :
Optical Cable Wire Gripper
Model Number :
OPGW
Rated Load :
16-45KN
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Diameter :
8-17mm
Brand Name :
Suntech
Certification :
ISO9001
Place of Origin :
Ningbo
Description

OPGW Gripper Come Along Rated 16-45KN for Fiber Safe Cable Stringing


Product Overview

An OPGW cable carries its optical fibers inside the ground wire, and the moment a grip slips or squeezes unevenly, those fibers are at risk. This come-along addresses the hazard directly: a forged high-strength aluminum body keeps the tool light for tower work, a bolt-style closure holds the cable without skidding, and each jaw opening is cut to match the cable diameter so clamping pressure stays even around the sheath. Four models accept Φ8-20mm cable at rated loads from 16KN to 45KN, and the upgraded jaw process keeps the grip effective over a long service life.

Technical Specifications

Item No.

Cable Dia. (mm)

Rated Load (KN)

Weight (kg)

20101

Φ8-20

25

3.8

20102

Φ20

45

3.8

20103

Φ11-15

16

5.6

20104

Φ15-17

16

5.6

Applications

· Stringing OPGW optical ground wire on transmission lines

· Installing optical ground wire systems on power routes

· Pulling and tensioning fiber optic composite cable

· Rapid, precise power line stringing operations

Product Advantages

· Forged Aluminum Construction — The forged high-strength aluminum body protects the OPGW during pulls while keeping the tool light for work at height.

· Bolt Closure Anti-Skid — The bolt-style closure prevents the cable from sliding or being damaged during pulling, shielding the optical fibers inside.

· Diameter Matched Jaws — Each jaw opening is sized to the cable diameter, ensuring firm clamping without uneven pressure on the inner fiber.

· Upgraded Jaw Process — All gripping jaws use an upgraded manufacturing process that extends jaw life and keeps grip performance steady.
