MachineU > China Products > Tools & Hardware > Hand Tools > Other Hand Tools

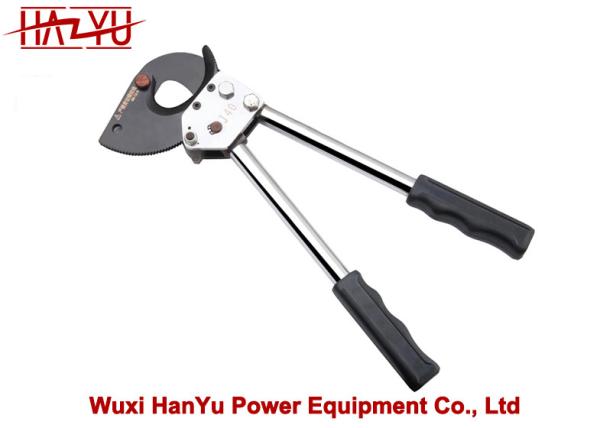

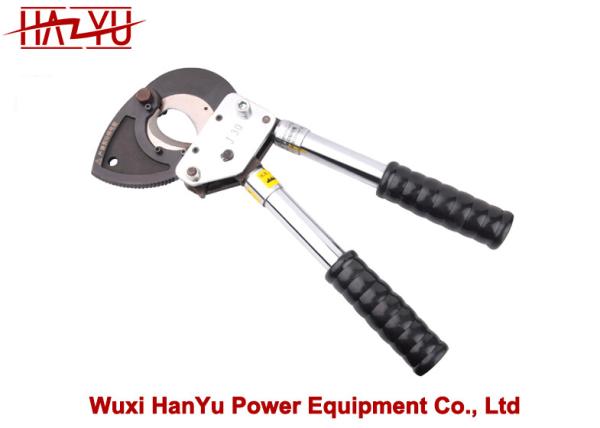

Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
Specifications
Brand Name :
HANYU
Model Number :
J-30
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Fabric bag
Type :
Copper Ratchet Armoured Cable Wire Cutter
Cutting range :
Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2
Weight :
3.5kg
Size :
400(580)*160*60mm
Material :
High strength special steel
Usage :
Cable Wire
Description

Lineman Tools J-30 Hand Copper Ratchet Armoured Cable Wire Cutter

General features

  • Ratchet cable cutter with handiness & save labour.
  • The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
  • The blades can sharpen or replace
  • The handle can be extended as your requirement

Technical Data
Model J-40B J-30 J-40
Cutting range Cutting off Cu/Al cable smaller than 240mm2 Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2 Cutting off Cu/Al armored cable smaller than 300mm2 and 1000pairs of communication cables
Weight 0.65kg 3.5kg 1kg
Package Fabric bag Fabric bag Fabric bag
Size 350(510)*120*45mm 400(580)*160*60mm 330*120*35mm

Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools

Other Model
Model XD-40 XD-520A XD-J-40 XD-75A XD-100A XD130A
Cutting range Cutting off Cu/Al cable smaller than 300mm2 Cutting off Cu/Al cable smaller than 600mm2 Cutting off ACSR cable smaller than 800mm2 Cutting off ACSR cable smaller than 800mm2 Al/Cu cable max.Φ100mm Al/Cu cable max.Φ130mm
ACSR 32mm Strands steel wire smaller than 120mm2 Strands steel wire smaller than 120mm2 Armored cable max.Φ100mm Armored cable max.Φ130mm
Bolt Φ10mm
Steel wire ropes Φ8-16
Length 325-425mm 350-450mm 350-450mm 550-730mm 600-900mm
Weight 2.0kg 1.9kg 2.6kg 2.6kg 6.8kg 7.0kg
Package Plastic case Fabric bag Fabric bag Fabric bag Fabric bag Steel case
Size 240*40*50mm 33*15*5.5cm 38*17*16cm 38*17*16cm 55*27*6.5cm 60*31.5*9.5cm
