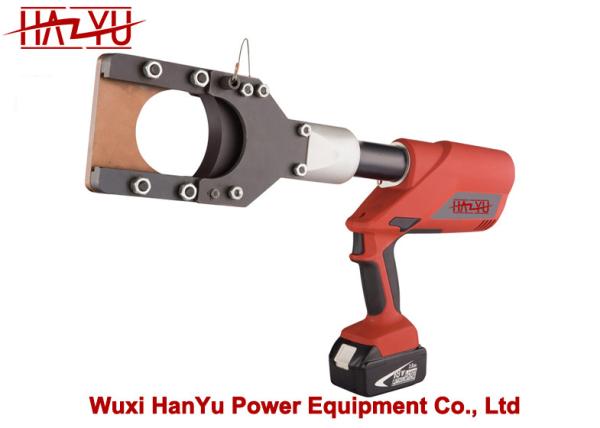

Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable
Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable
Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable
Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable
Specifications
Brand Name :
HANYU
Model Number :
EC-85A
Certification :
ISO9001
Place of Origin :
China
MOQ :
20pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Case
Cutting range :
85mm Cu/Al cable and armored cable
Cutting force :
60KN
Capacity :
3.0Ah
Stroke :
92mm
Charging time :
45minutes
Type :
Battery Powered Cable Cutter
Description

Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable

Technical Data

Model EC-40A EC-50A EC-65C EC-85A EC-2432A
Cutting force 70KN 70KN 120KN 60KN 120KN
Cutting range

40mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

65mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

 M14-M24

40mm

ACSR cable

50mm

ACSR cable
Stroke 42mm 52mm 42mm 92mm 32mm
Voltage 18V
Capacity 3.0Ah
Charging time 45minutes
Package Plastic case
  • EC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable
  • EC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable
  • EC-65C, Battery cable cutter for Φ65mm Cu/Al cable and armored cable
  • EC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable
  • EC-2432A, Battery screw cutter for M14-M24

Accessories

Model EC-40A EC-50A EC-65C EC-85A EC-2432A
Blade 1set
Battery 2pcs
Charger

1pc(AC110-240V,50-60Hz)

Sealing ring of cylinder

 1set

Sealing ring of safety valve

 1set

  • 1. One key control
  • 2. Cutting head rotates 350°
  • 3. Two stage hydraulics
  • 4. Shorter charging cycles
  • 5. Automatic retraction when crimp is completed
  • 6. Battery power display

Lineman Tools Battery Powered Cable Cutter 85mm Cu/Al Cable And Armored Cable
